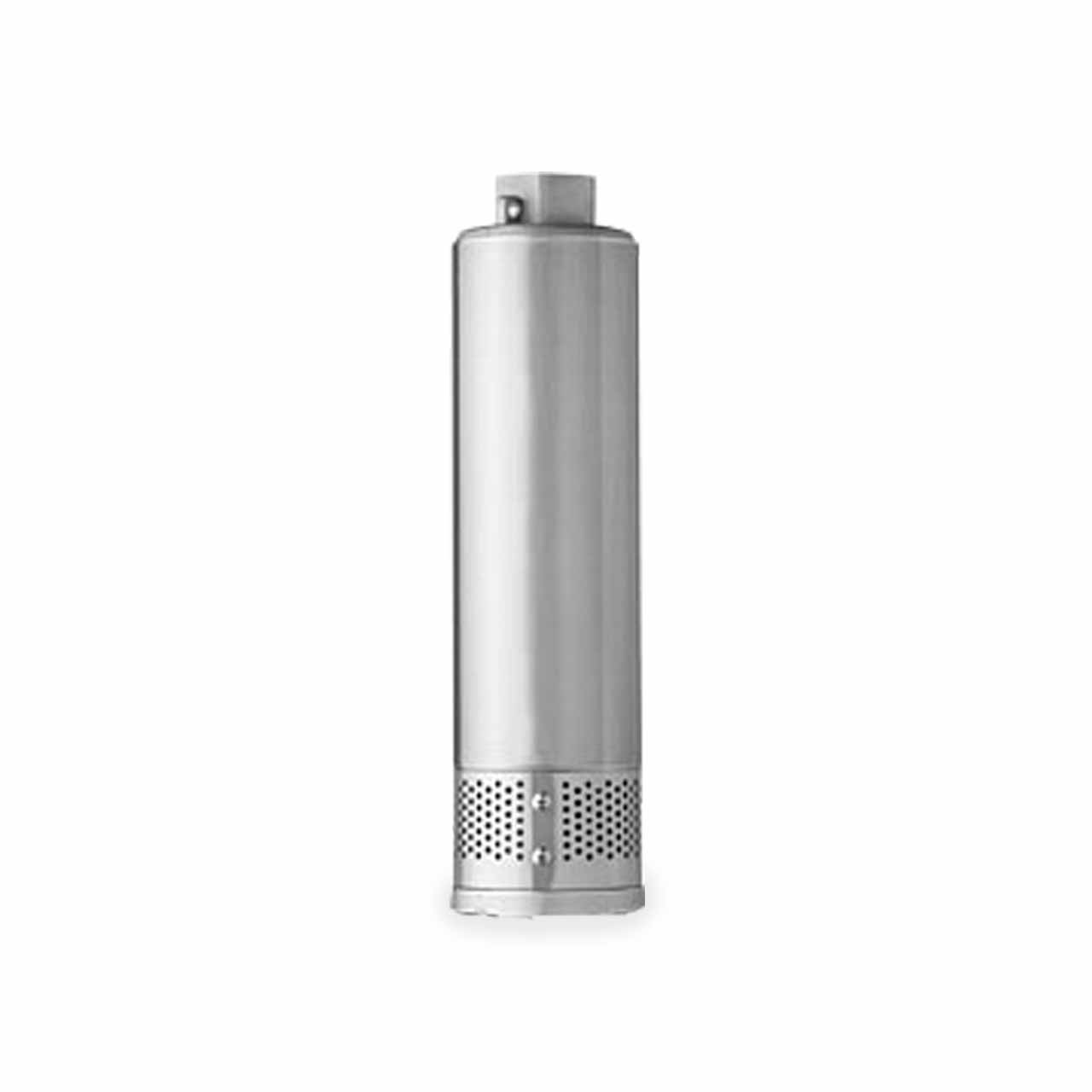

Myers 4" Submersible Pump End Description

The 4-inch submersible pumps have a proven track record for reliability and performance and are the preferred brand by many industry professionals. Stainless steel construction and self-lubricating impellers provide reliable performance under the most demanding conditions. The Predator Plus also features the PENTEK® XE Series, high-thrust motor for increased efficiency and extended service life.

Myers 4" Submersible Pump End Typical Application

• Water Systems - Residential, Industrial, Commercial, Multiple Housing and Farm Clean Water Use.

Myers 4" Submersible Pump End Features

• Stainless Steel - Shell, Discharge Bowl, Shaft and Coupling, Wear Ring and Suction Screen - all Lead Free.
• Gritty Performance - Self Lubricating Impellers Resist Abrasion from Grit and Sand - Teflon® Impregnated Staging Proven to Outlast the Competition.
• Supreme Power - Features the High-Thrust PENTEK XE Motor for the Ultimate in Power, Efficient Performance and Longer Life. Thermal Overload and Lightning Protected.
• On the Job - Field Serviceable, Threaded Pump Assembly.
• Nothing Better - Top-of-the-line 4" Submersible Pump is Unequaled in the Marketplace
• An Eye for Safety - Built-in Eyelet for Safety Line Connection

Myers SS20-30 Series Pump End Technical Details

• DISCHARGE SIZE: 2.0” NPT
• NOMINAL FLOW RATING: 30 GPM
• HORSEPOWER: 1.0 HP
• MAXIMUM CAPACITY: up to 45 GPM
• MAXIMUM HEAD: up to 300'
• STAGES: 8
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Engineered Composite
• BODY MATERIAL: 304 Series Stainless Steel

Myers 4" Submersible Pump End Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers 4" Submersible Pump Product Resources

Download Myers 4" Submersible Pump Specifications

Download Myers 4" Submersible Pump Manual
