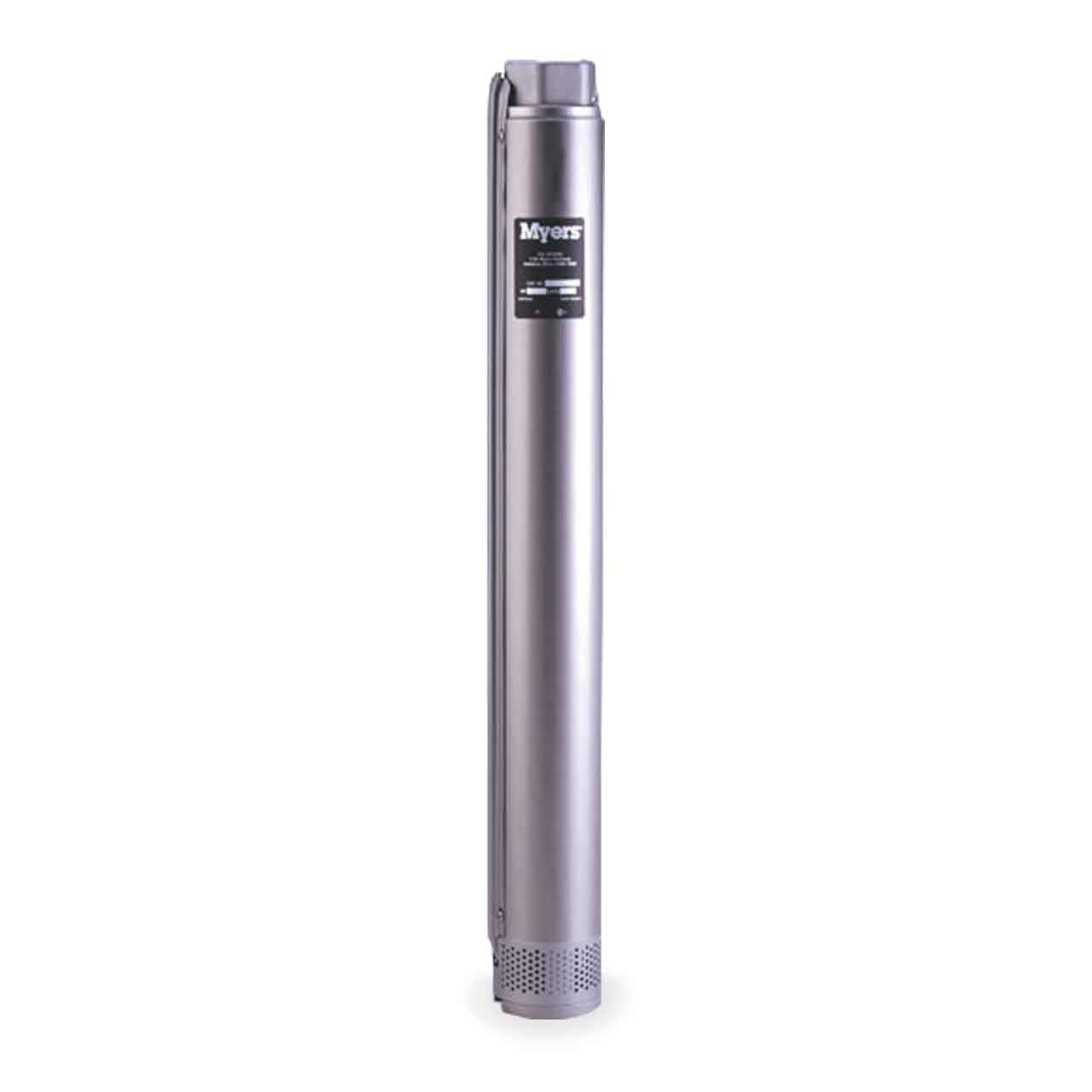

Myers 4" Submersible Well Pump End Description

The Ranger Series 4" High-Flow Submersible Pumps are perfect for applications requiring a large volume of water. Stainless steel components and high-density composite resin impellers provide exceptional resistance to corrosion in harsh water conditions.

The high-torque motor and superior pump hydraulics are carefully matched to handle virtually any job.

Myers 4" Submersible Well Pump End Typical Application

• Water Systems - Irrigation, Industrial, Commercial, Multiple Housing and Farm Clean Water Use.

Myers 4" Submersible Well Pump End Key Features

• High-Flow Capacities to 100 GPM make the Ranger 4" Sub the Easy Choice for the Really Big Jobs.
• Stainless Steel - Shell, Discharge and Suction Bowl, Shaft and Coupling, Lead Guard, and Suction Screen. All Lead-Free as Well.
• Staged for Toughness - Specially Designed, High Density Thermoplastic Impellers Resist the Corrosive Wear from the Harsh Water Conditions.
• High-Powered Performance - Features a High-Torque, Heavy Duty Motor for the Most Demanding Applications.

Myers SS100-35 4" Submersible Well Pump End Technical Details

• DISCHARGE SIZE: 2.0” NPT
• NOMINAL FLOW RATING: 35 GPM
• MAXIMUM CAPACITY: up to 55 GPM
• MAXIMUM HEAD: up to 1100'
• STAGES: 37
• IMPELLER MATERIAL: Engineered Composite
• BODY MATERIAL: 304 Stainless Steel

Myers 4" Submersible Well Pump End Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers 4" Submersible Well Pump End Product Resources

Download Myers Ranger Series Specifications

Download Myers Ranger Series Manual
