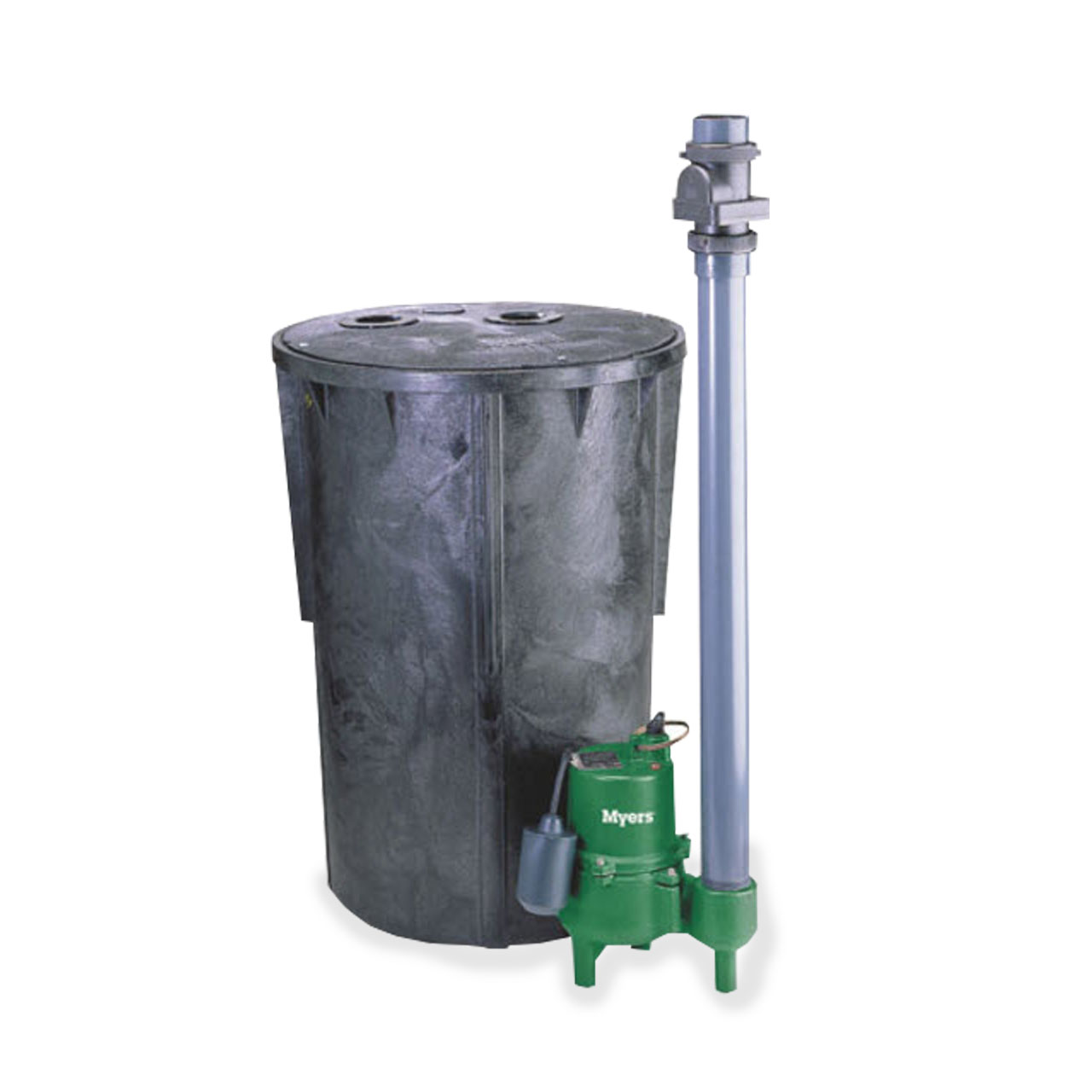

Myers SR1830 Packaged Sewage System Description

The Myers® SR1830 Packaged Sewage System for below-drain applications. The heavy-duty cast iron SRM4 series pump and corrosion-resistant basin make this the preferred package for extended service installations. The specially designed recessed vortex impeller ensures the free flow of solids up to 2” diameter

Myers SR1830 Packaged Sewage System Typical Applications

• Residential Septic Tank
• Sewage and Large Sumps

Myers SR1830 Packaged Sewage System Features

• Ready To Go Fully Assembled System Includes: Pump, Basin, Sealed Cover, Internal Basin Discharge Pipe and 2” Full-Swing Check Valve
• HEAVY-DUTY SRM4AC1 PUMP
  • Long-Life Carbon/Ceramic Seal Protects Motor against Leakage
  • Oil-Filled Motor for Continuous Lubrication and Heat Dissipation
  • Internal Heat Sensor Prevents Overheating and Includes Automatic Reset
  • Tethered Automatic Float Switch with Piggyback Plug
• BASIN
  • 18” x 30” Corrosion-Resistant Structural Foam Construction
  • 30-Gallon Capacity
  • 4” Plastic Slip Type Inlet Hub
• BASIN COVER: 18” Seal-Tight Design in Structural Foam: 2” Discharge Flange and Vent Flange Suitable for 2” or 3” Vent

Myers SRM4AC1 Sewage Pump Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.4 HP
• AMP DRAW (full load): 12.0
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 1650
• MAXIMUM HEAD: up to 19'
• MAXIMUM CAPACITY: up to 95 GPM
• SWITCH TYPE: Tethered Switch w/Piggyback Plug
• DISCHARGE PIPE SIZE: 2.0" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Thermoplastic, Recessed
• CORD LENGTH: 10'
• BODY CONSTRUCTION: Pump: Cast Iron / Basin: Structural Foam
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers SRM4AC1 Sewage Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers SR1830 Packaged Sewage System Product Resources

Download Myers SR1830 Specification Data

Download Myers SR1830 Installation & Service Manual
