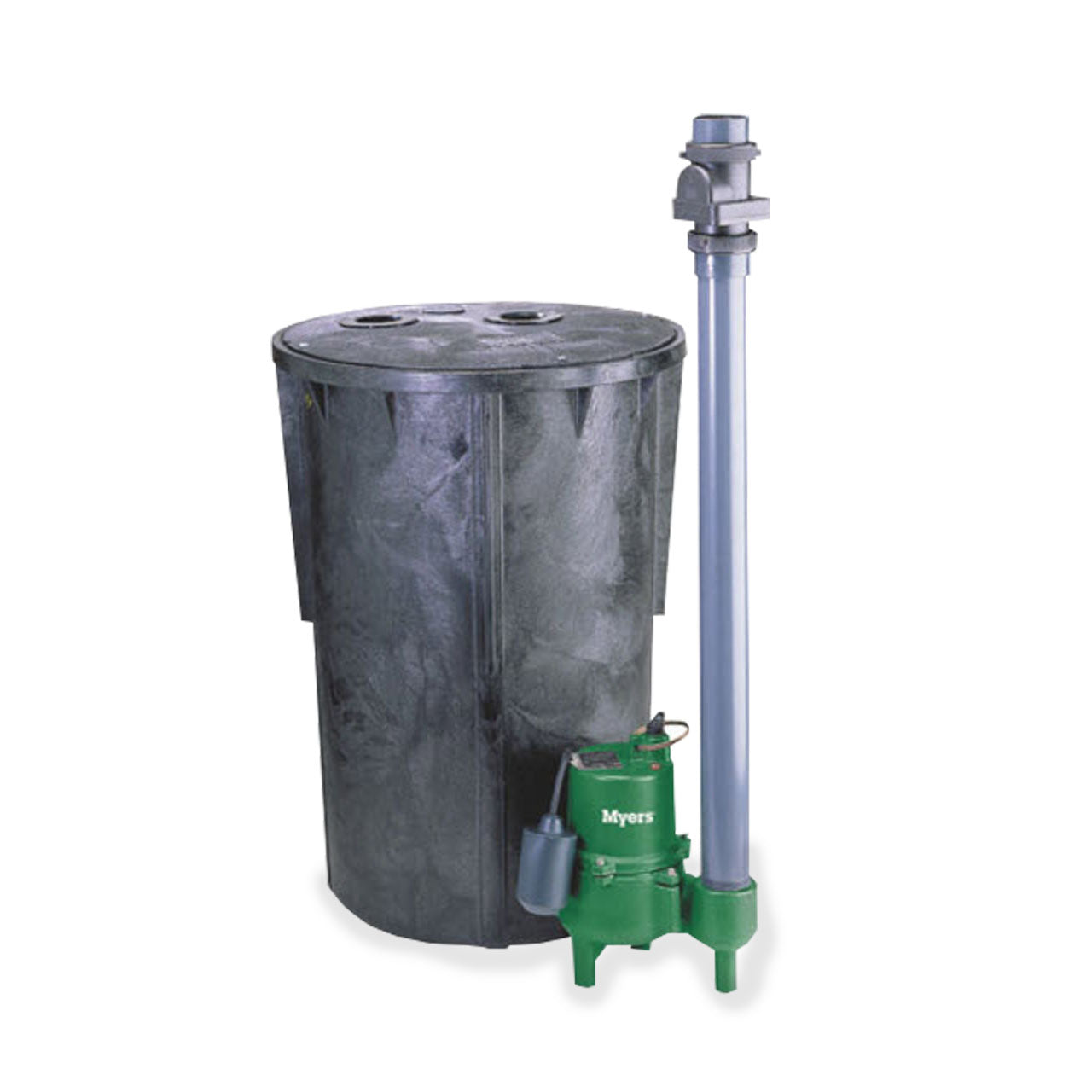

Myers SR1830-23-2 Packaged Sewage Basin System 0.4 HP 115V 10' Cord
Myers SR1830-23-2 Packaged Sewage Basin System 0.4 HP 115V 10' Cord
SKU : MYR25195D100
In Stock Quantity:1
:
Brand
:
Regular price
$1,536.30 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Myers SR1830 Series Packaged Sewage Basin System Description
The Myers® SR1830 Packaged Sewage System for below-drain applications. The heavy-duty cast iron SRM4 series pump and corrosion-resistant basin make this the preferred package for extended service installations. The specially designed recessed vortex impeller ensures the free flow of solids up to 2” diameter
Myers SR1830 Series Packaged Sewage Basin System Typical Applications
Residential Sewage Systems
Myers SR1830 Series Packaged Sewage Basin System Features
- Ready To Go: Fully Assembled System Includes: Pump, Basin, Sealed Cover, Internal Basin Discharge Pipe and 2” Full-Swing Check Valve
- HEAVY-DUTY SRM4AC1 PUMP: Long-Life Carbon/Ceramic Seal Protects Motor Against Leakage. Oil-Filled Motor for Continuous Lubrication and Heat Dissipation. Internal Heat Sensor Prevents Overheating and Includes Automatic Reset. Tethered Automatic Float Switch with Piggyback Plug.
- BASIN: 18" z 30" Corrosion-Resistant Thermoplastic Construction with a 30 Gallon Capacity and 4” Plastic Slip Type or Cast Iron Inlet Hub.
- BASIN COVER: 18” Seal-Tight Design in Structural Foam: 2” Discharge Flange and Vent Flange Suitable for 2” or 3” Vent
Specifications
Specifications
Myers SRM4AC1 Sewage Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.4 HP
- AMP DRAW (full load): 12.0
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 1650
- MAXIMUM HEAD: up to 19'
- MAXIMUM CAPACITY: up to 95 GPM
- SWITCH TYPE: Tethered Switch w/Piggyback Plug
- SWITCH 'ON' LEVEL: 12-1/2”
- SWITCH 'OFF' LEVEL: 6-1/2”
- DISCHARGE PIPE SIZE: 2.0" NPT
- MAXIMUM SOLIDS HANDLING SIZE: 2.0"
- IMPELLER TYPE: Thermoplastic, Recessed
- CORD LENGTH: 10'
- BODY CONSTRUCTION: Pump: Cast Iron / Basin: Structural Foam
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
Myers SRM4AC1 Sewage Pump Performance Data
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers SR1830 Series Packaged Sewage System Product Resources
Download Myers SR1830 Series Packaged Sewage System Specification Data
Download Myers SRM4 Series Submersible Sewage Pump Installation & Service Manual
