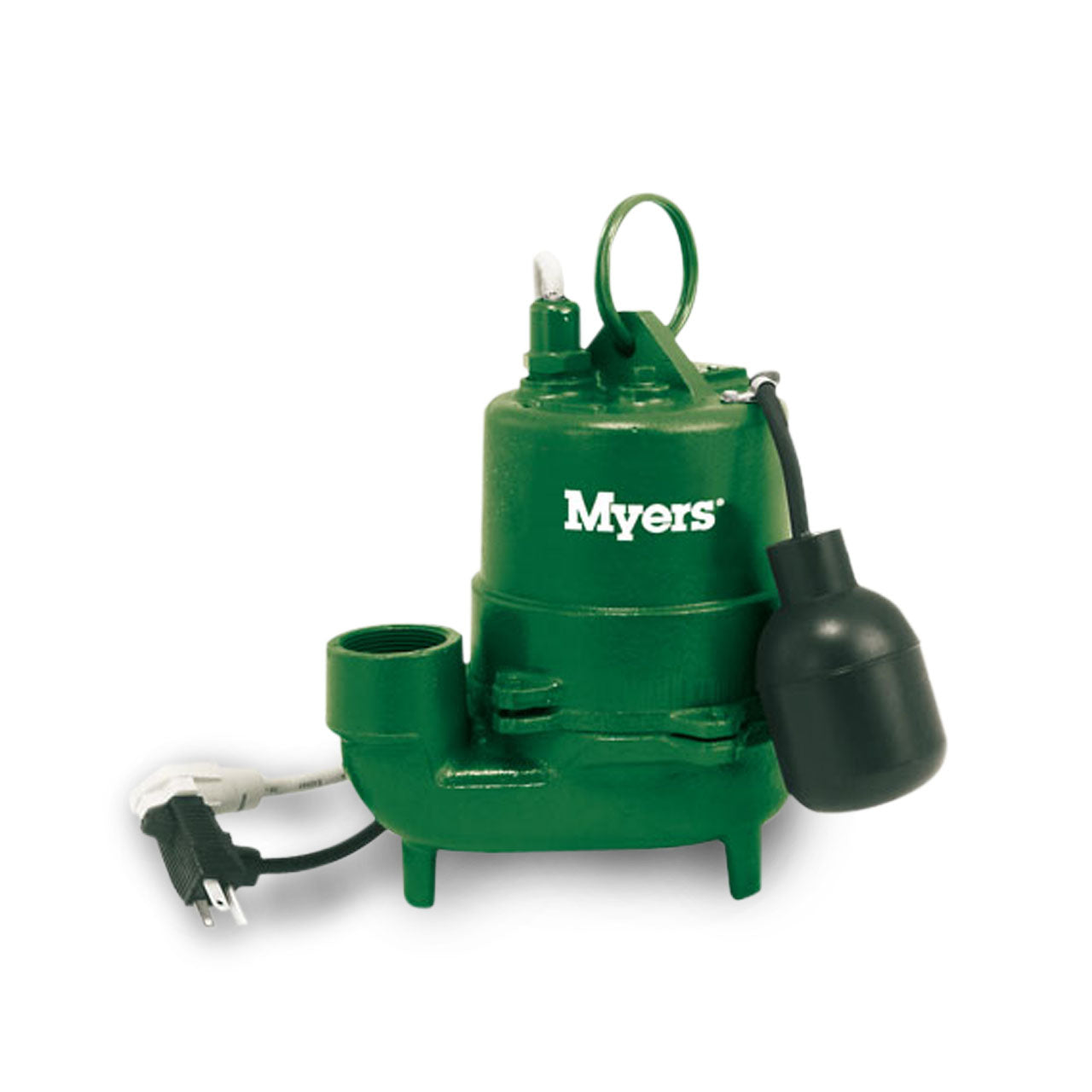

Myers S40HT Series High Temperature Effluent Pump Description

The Myers ^® S40HT Series Submersible High Temperature Sump/Effluent Pumps are designed for effluent and wastewater removal, sump drainage, dewatering and flood control. They can be used in boiler blow down pits, condensate pits and as hot water pumps. Units have built-in thermal overload protection with automatic reset. the mechanical seal and ball bearings on the motor shaft are permanently lubricated. Stainless steel hardware and a heavy duty lift-out ring allow for easy disassembly after extended use.

Myers S40HT Series High Temperature Effluent Pump Typical Applications

• Boiler Blow-Down Pits
• Condensate Pits
• Hot Water Sumps

Myers S40HT Series High Temperature Effluent Pump Features

• Rugged-Built, Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation.
• Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature.
• Lower Ball Bearing Eliminates Sleeve Bearing Wear and Reduces Motor Wear.
• Non-Clog Vortex Style, Ejector Vanes for Seal Protection.
• Allows Easy Disassembly After Extended Service.
• Prevents Oil Loss From - and Moisture Protection for - Motor.
• Permanently Lubricated for Long Life.
• Heavy-Duty Lift-Out Ring.

Myers S40HT-11P High Temperature Effluent Pump Specifications

• VOLTAGE: 1ø, 115V, 60 Hz
• HORSEPOWER: 0.33 HP
• AMP DRAW (full load): 12.0
• MOTOR TYPE: Thermal Overload Protection
• RPM: 1550
• MAXIMUM HEAD: 21'
• MAXIMUM CAPACITY: 45 GPM
• SWITCH TYPE: Tethered w/Piggyback Plug
• SWITCH 'ON' LEVEL: 13.5” (343 mm)
• SWITCH 'OFF' LEVEL: 4.5” (114 mm)
• MINIMUM SUMP DIAMETER: Simplex 24" Duplex 36"
• DISCHARGE PIPE SIZE: 1-1/2" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• IMPELLER TYPE: Cast Iron, Non-Clog Vortex
• CORD LENGTH: 20' w/ Integrally Grounded Three-Prong Plug
• CORD SIZE: 16/3; Type: SJOOW-A/SJOW
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 200°F (93°C)

Myers S40HT Series High Temperature Effluent Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers S40HT Series High Temperature Effluent Pump Product Resources

Download Myers S40HT Series Series High Temperature Effluent Pump Specification Data

Download Myers S40HT Series Series High Temperature Effluent Pump Installation & Service Manual
