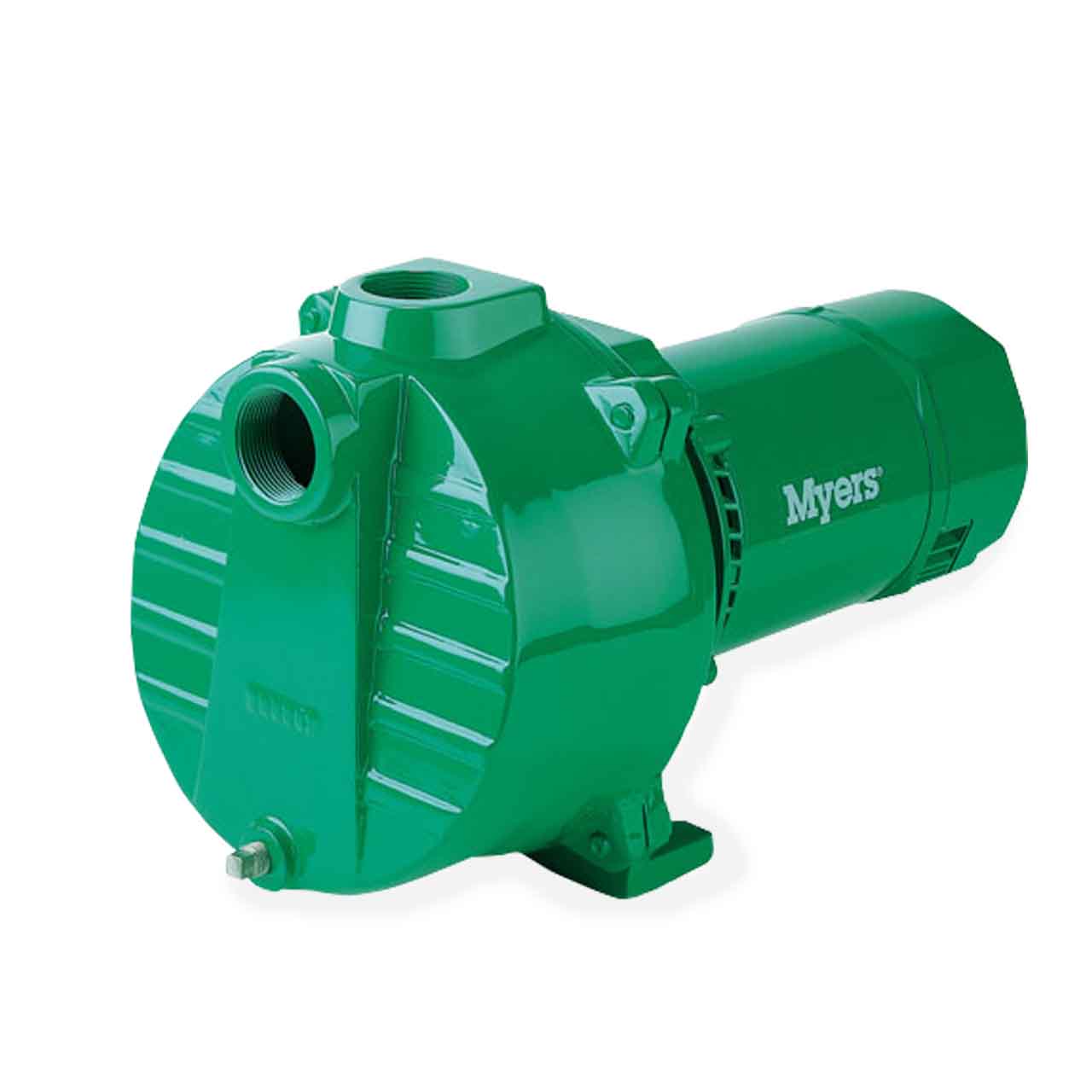

Myers Quick Prime Self-Priming Centrifugal Pump Description

The Quick Prime Self-Priming Centrifugal Pump is designed for demanding jobs where a lot of water is required over a long period of time. For lawn and garden sprinkling, car washing, or other big cleaning and maintenance jobs, it's built for one purpose only - continuous high performance service. Not for use with corrosive chemicals or flammable liquids.

Myers Quick Prime Self-Priming Centrifugal Pump Typical Applications

• Water Systems - Lawn and Gardening Sprinkling, Car Washing, or Other Big Cleaning and Maintenance Jobs.

Myers Quick Prime Self-Priming Centrifugal Pump Features

• Ruggedly Built - To Meet the Demands for Long, Hard Continuous Service Without Over - Working or Overloading the Motor.
• Manufactured - To Precise Performance Specifications.
• Impellers - Corrosion Resistant for Long Life.
• Simple Design - Powerful, Efficient Operation and Easy Servicing.
• Proper Impeller Alignment - For Smooth, Quiet Running.
• Unique Diffuser Design - For Quick Automatic Prime. No Additional Water needed for Repriming after Installation.
• Common Brackets - Cases and Gaskets on all Sizes... Simplified Parts Selection.

Myers QP15-3 Centrifugal Pump Specifications

• BODY CONSTRUCTION: High Tensile Cast Iron
• HORSEPOWER: 1.5 HP
• MAXIMUM HEAD: up to 110'
• MAXIMUM CAPACITY: up to 85 GPM
• DISCHARGE PIPE SIZE: 1-1/2" NPT
• SUCTION SIZE: 1-1/2" NPT
• VOLTAGE: 3ø, 230V
• IMPELLER: Engineered Composite

Myers Quick Prime Self-Priming Centrifugal Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers Quick Prime Self-Priming Centrifugal Pump Product Resources

Download Myers Quick Prime Centrifugal Pump Specification Data

Download Myers Quick Prime Centrifugal Pump Installation & Service Manual
