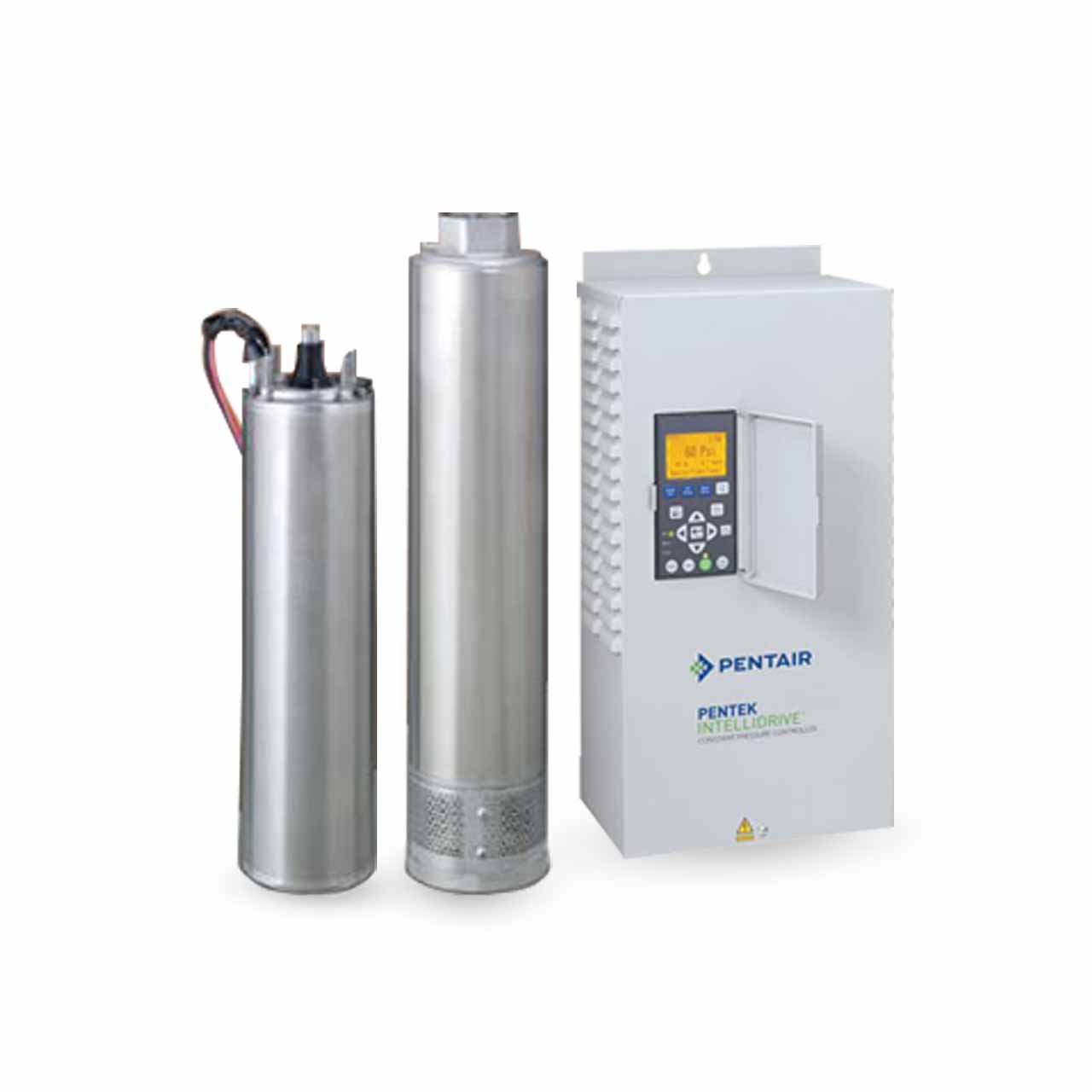

Myers Pentek Intellikit Packaged Constant Pressure Systems Description

The Pentek Intellidrive Constant Pressure Controller automatically adjusts motor speeds to meet changes in water demand. Instantaneous feedback from an electronic pressure transducer instructs the drive to change the submersible well pump motor speed to maintain constant pressure throughout the system.

The Pentek Intellidrive is available with Link2O™ technology that provides you with instant access to your drive and notifications to alert you of any faults.

Myers Pentek Intellikit Packaged Constant Pressure Systems Applications

• Pre-Specified and Packaged Constant Pressure Systems for Residential Well Water
• Maintain Constant Water Pressure for Submersible Well Pump Systems, Similar to Municipal Water Systems.

Myers Pentek Intellikit Packaged Constant Pressure Systems Features

• PENTEK SUBMERSIBLE MOTOR
• Built with the Latest Design, Manufacturing and Testing Technology
• Encapsulated Stainless Steel Design and Professional-Grade Insulation Provide Longer Life in Harsh Environments
• 100% Factory Pressure and Run-Tested
• MYERS SUBMERSIBLE PUMP
• Submersible Pumps Deliver Efficient and Dependable Performance Even in Rough, Aggressive Water
• One of the Few Manufacturers of Both Pumps and Pressurized Water Storage Tanks, now Sold in over 100 Countries
• PENTEK INTELLIDRIVE VARIABLE FREQUENCY DRIVE
• Maintains Constant Pressure Output Regardless of Fluctuating Demand
• Extends Life of Pump and Motor
• Utilizes a Smaller Pressure Tank for a Space-Saving Solution

Myers Pentek Intellikit M12PIK15-60 Packaged Constant Pressure Systems Specifications

• HORSEPOWER: 1.5 HP
• MAXIMUM HEAD: up to 570'
• MAXIMUM CAPACITY: up to 18 GPM
• ENCLOSURE: NEMA 3
• Pentek P43B0015A3-C Submersible Motor
• Myers ST15-12 PLUS Submersible Pump
• Pentek PID20 Intellidrive Variable Frequency Drive

Myers Pentek Intellikit Packaged Constant Pressure Systems Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers Pentek Intellikit Packaged Constant Pressure Systems Product Resources

Download Myers Pentek Intellikit Brochure

Download Myers Pentek Intellikit Specification Data

Download Myers Pentek Intellidrive Catalog

Download Myers Pentek Intellidrive Owner's Manual
