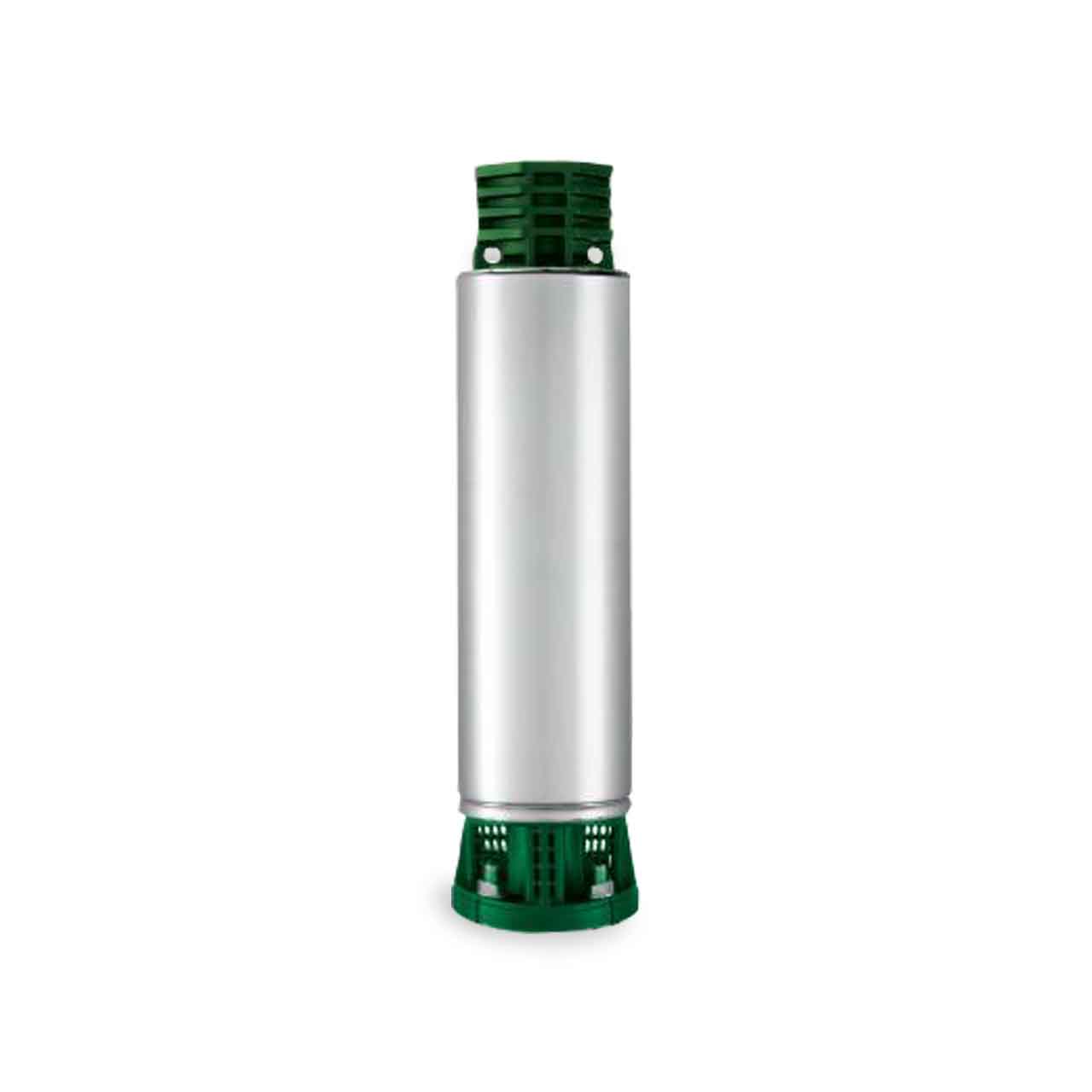

Myers 4" Submersible Rustler Series Pump End Description

Precision-Engineered, corrosion-resistant pumps in 5, 7/8, 10/12, 20 and 30 GPM deliver efficient, dependable performance even in rough, aggressive water. Head up to 650 feet and capabilities to 45 GPM. Built to deliver long-term, trouble-free service.

These pumps feature the proven SignaSeal staging system. Floating impeller design resists sand and reduces sand locking.

Myers 4" Submersible Rustler Series Pump End Application

• Residential Water Systems
• Industrial Water Systems
• Commercial Water Systems
• Multiple Housing and Farm Clean Water Use

Myers 4" Submersible Rustler Series Pump End Features

• Proven Staging System: Our proven SignaSeal Staging System Incorporates a Harder-than-Sand Ceramic Wear Surface that when Incorporated with our Floating Impeller Design, Greatly Reduces Problems with Abrasives, Sand Lock-Up and Running Dry.
• Discharge: Corrosion-Resistant Fiberglass-Reinforced Thermoplastic for Durability in Aggressive Water. Large Octagon Wrench Area for Ease of Installation.
• Discharge Bearing: Exclusive Self-Lubricating Nylatron Bearing Resists Wear from Sand.
• Intake: Corrosion-Resistant Fiberglass-Reinforced Thermoplastic for Durability in Aggressive Water.
• Shaft: Positive Drive from 7/16" Hexagonal Heavy-Duty 300 Grade Stainless Steel.
• Coupling: Stainless Steel Press Fit to Pump Shaft. Couples to all Standard NEMA Motors.
• Shell: Crimped Shell.
• Hardware: All Screws, Washers and Nuts are Corrosion-Resistant 300 Grade Stainless Steel.
• Check Valve: Spring-Loaded Check Valve.
• Cable Guard: Corrosion-Resistant Stainless Steel Guard Protects Motor Leads. Tapered Ends Prevent Pump from Catching on Well.
• Intake Screen: Molded-In Screen.
• Pentek XE Series Motor: 2 and 3 Wire NEMA Standard all Stainless Steel Construction Water-Filled Motors.

Myers N1512R-01 Rustler Series Pump End Specifications

• DISCHARGE SIZE: 1.25” NPT
• NOMINAL FLOW RATING: 12 GPM
• MAXIMUM CAPACITY: up to 13 GPM
• MAXIMUM HEAD: up to 600'
• STAGES: 17
• IMPELLER MATERIAL: Self-Lubricating Noryl
• BODY MATERIAL: 304 Stainless Steel

Myers 4" Submersible Rustler Series Pump End Curve
