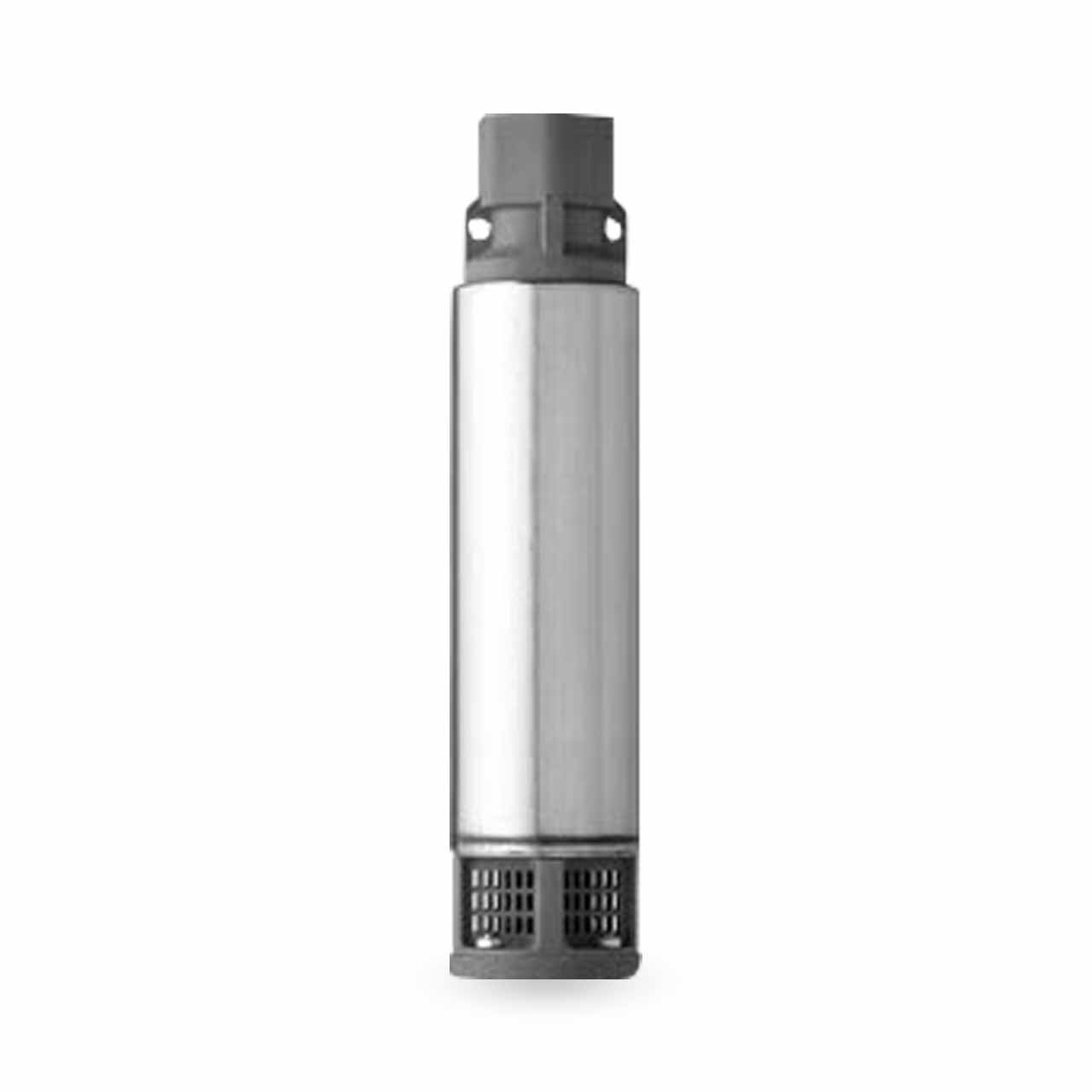

Myers N1020R-01 4" Rustler Series Submersible Well Pump End 20 GPM 1.0 HP
Myers N1020R-01 4" Rustler Series Submersible Well Pump End 20 GPM 1.0 HP
SKU : MYRN1020R01
In Stock Quantity:0
:
Brand
:
Regular price
$753.45 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Myers 4" Submersible Rustler Series Pump End Description
Precision-Engineered, corrosion-resistant pumps in 5, 7/8, 10/12, 20 and 30 GPM deliver efficient, dependable performance even in rough, aggressive water. Head up to 650 feet and capabilities to 45 GPM. Built to deliver long-term, trouble-free service.
These pumps feature the proven SignaSeal staging system. Floating impeller design resists sand and reduces sand locking.
Myers 4" Submersible Rustler Series Pump End Application
- Residential Water Systems
- Industrial Water Systems
- Commercial Water Systems
- Multiple Housing and Farm Clean Water Use
Myers 4" Submersible Rustler Series Pump End Features
- Proven Staging System: Our proven SignaSeal Staging System Incorporates a Harder-than-Sand Ceramic Wear Surface that when Incorporated with our Floating Impeller Design, Greatly Reduces Problems with Abrasives, Sand Lock-Up and Running Dry.
- Discharge: Corrosion-Resistant Fiberglass-Reinforced Thermoplastic for Durability in Aggressive Water. Large Octagon Wrench Area for Ease of Installation.
- Discharge Bearing: Exclusive Self-Lubricating Nylatron Bearing Resists Wear from Sand.
- Intake: Corrosion-Resistant Fiberglass-Reinforced Thermoplastic for Durability in Aggressive Water.
- Shaft: Positive Drive from 7/16" Hexagonal Heavy-Duty 300 Grade Stainless Steel.
- Coupling: Stainless Steel Press Fit to Pump Shaft. Couples to all Standard NEMA Motors.
- Shell: Crimped Shell.
- Hardware: All Screws, Washers and Nuts are Corrosion-Resistant 300 Grade Stainless Steel.
- Check Valve: Spring-Loaded Check Valve.
- Cable Guard: Corrosion-Resistant Stainless Steel Guard Protects Motor Leads. Tapered Ends Prevent Pump from Catching on Well.
- Intake Screen: Molded-In Screen.
- Pentek XE Series Motor: 2 and 3 Wire NEMA Standard all Stainless Steel Construction Water-Filled Motors.
Specifications
Specifications
Myers N1020R-01 Rustler Series Pump End Specifications
- DISCHARGE SIZE: 1.25” NPT
- NOMINAL FLOW RATING: 20 GPM
- MAXIMUM CAPACITY: up to 27.5 GPM
- MAXIMUM HEAD: up to 260'
- STAGES: 8
- IMPELLER MATERIAL: Self-Lubricating Noryl
- BODY MATERIAL: 304 Stainless Steel
Myers 4" Submersible Rustler Series Pump End Curve
