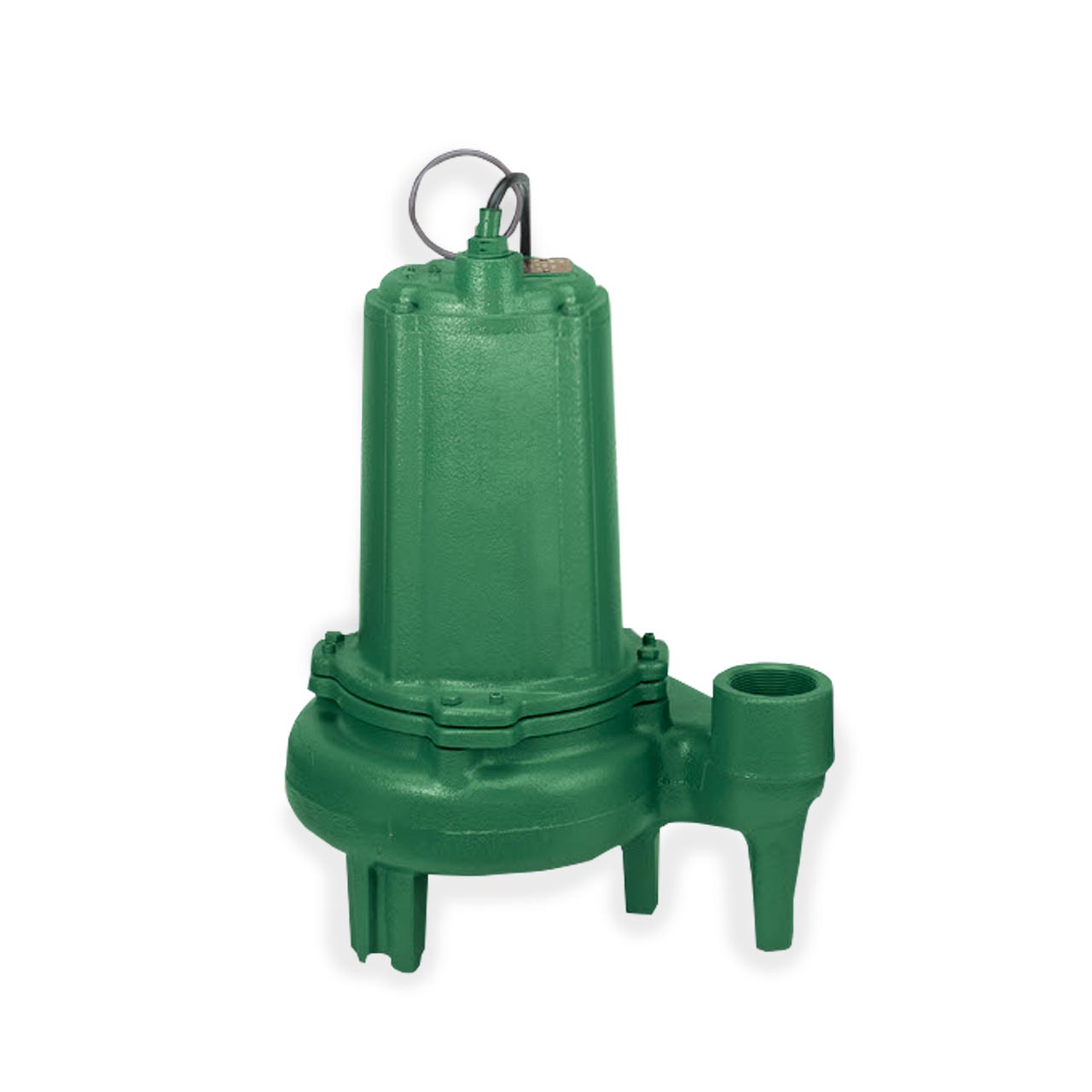

Myers MWS39 Series Sewage Pump Descriptions

The MWS9 2-HP Submersible Sewage Pump are designed for sewage, effluent and waste water removal, sump drainage, liquid transfer systems, circulation, dewatering and flood control. Pump motors range from a 115V or a 230V single phase to a 208-230V or 460V three phase. All models come with a 20' 3-prong grounding type cord and plug. MWS9/MWS39 pumps are rated for continuous duty when fully submerged in a liquid with a maximum temperature of 105°.

Myers MWS39 Series Sewage Pump Applications

• Residential and Commercial Sewage/Dewatering
• Effluent/Wastewater Transfer
• Sump Drainage

Myers MWS39 Series Sewage Pump Features

• Impeller - Non-Clog Vortex Style, Pump Out Vanes for Seal Protection.
• Dual Shaft Seals - Primary Mechanical Seal with a Secondary Self - Lubricating Lip Seal.
• Bearing and Mechanical Seal - Permanently Lubricated for Long Life.
• Serviceability - Heavy-Duty Lift-Out Ring, Field Serviceable.
• Overload Protection - Built-In Thermal Overload with Automatic Reset on Single Phase.
• Cord Design - Prevents Oil Loss From and Moisture Protection for Motor.
• Controls - Standard Controls Available for Automatic Operation.

Myers MWS39200520M Series Sewage Pump Specifications

• VOLTAGE: 3ø, 575V, 60Hz
• HORSEPOWER: 2.0 HP
• AMP DRAW (full load): 4.2
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 1725
• MAXIMUM HEAD: up to 55'
• MAXIMUM CAPACITY: up to 240 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: Simplex: 18"/ Duplex: 30"
• DISCHARGE PIPE SIZE: 3.0" NPT Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Cast Iron, Two-Vane Semi-Open Vortex
• CORD LENGTH: 20' TYPE: SJTW-A/SJTW
• CORD SIZE: 16-4; Type: Water Resistant, UL Listed Integrally Grounded 3-Prong Plug
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 130°F (55°C)
• DUTY RATING: Continuous

Myers MWS39 Series Sewage Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MWS39 Series Sewage Pump Product Resources

Download Myers MWS9/MWS39 Series Specification Data

Download Myers MWS9/MWS39 Series Installation & Service Manual
