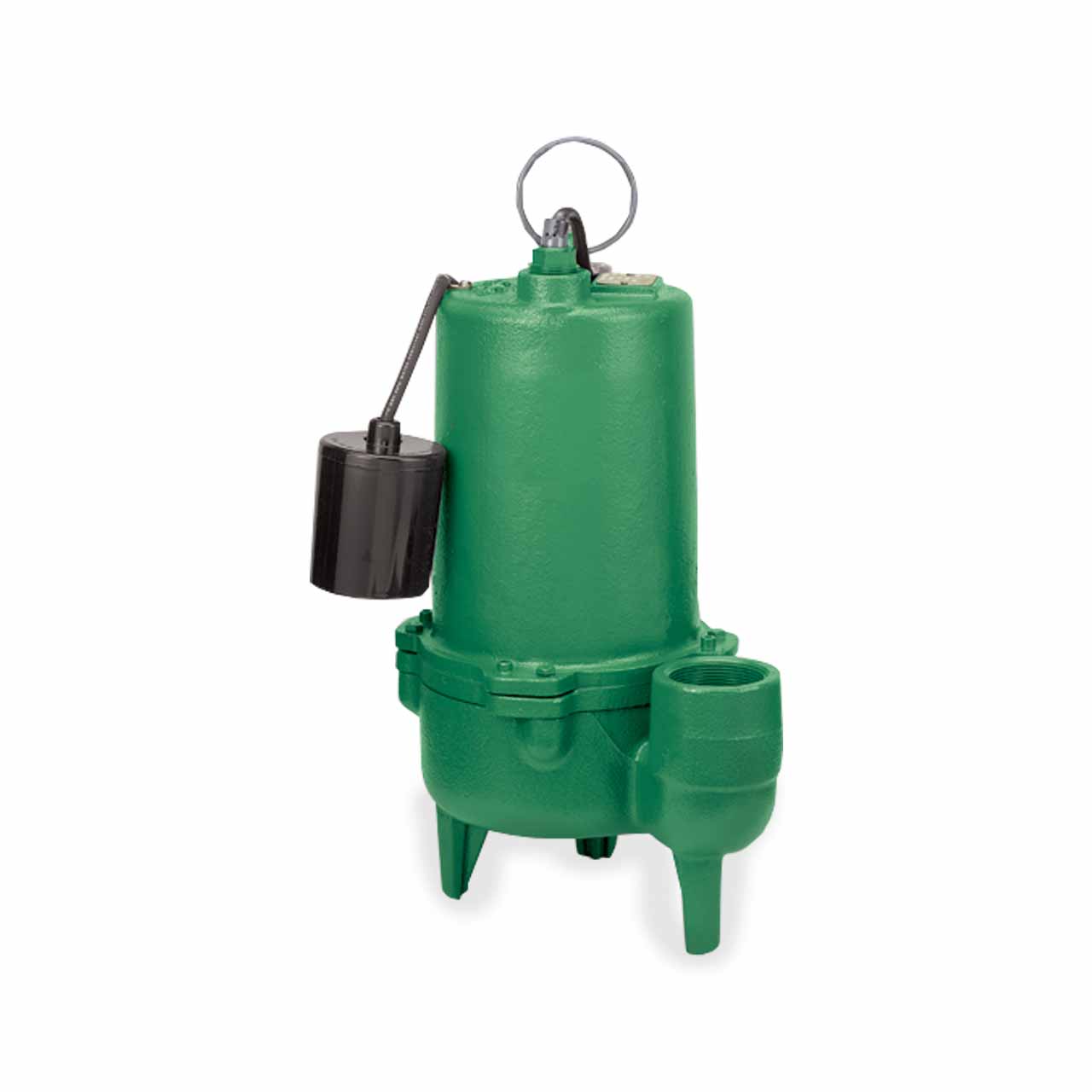

Myers MWS37 Series Sewage Pump Descriptions

The MWS37 Submersible Sewage Pump are designed for sewage, effluent and waste water removal, sump drainage, liquid transfer systems, circulation, dewatering and flood control. Pump motors range from a 115V or a 230V single phase and come with a 20' 3-prong grounding type cord and plug.

Myers MWS37 Series Sewage Pump Applications

• Residential Sewage/Dewatering
• Wastewater Removal

Myers MWS37 Series Sewage Pump Features

• Bearing and Mechanical Seal – Permanently Lubricated for Long Life.
• Overload Protection – Built-In Thermal Overload with Automatic Reset.
• Stainless Steel Hardware – Allows for Easy Disassembly after Extended Service.
• Durable Construction - Full Cast Iron Design.
• 3" Discharge - Optional 3" Discharge Flange.

Myers MWS3775220T Series Sewage Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 0.75 HP
• AMP DRAW (full load): 6.7
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 1725
• MAXIMUM HEAD: up to 29'
• MAXIMUM CAPACITY: up to 141 GPM
• SWITCH TYPE: Tethered
• SWITCH 'ON' LEVEL: 20"
• SWITCH 'OFF' LEVEL: 11"
• DISCHARGE PIPE SIZE: 3.0" NPT Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Cast Iron, Vortex
• CORD LENGTH: 20'
• CORD SIZE: 16-3; SJTW-A/SJTW, UL Listed Integrally Grounded 3-Prong Plug
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 130°F (55°C)

Myers MWS37 Series Sewage Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MWS37 Series Sewage Pump Product Resources

Download Myers MWS37 Series Specification Data

Download Myers MWS37 Series Installation & Service Manual
