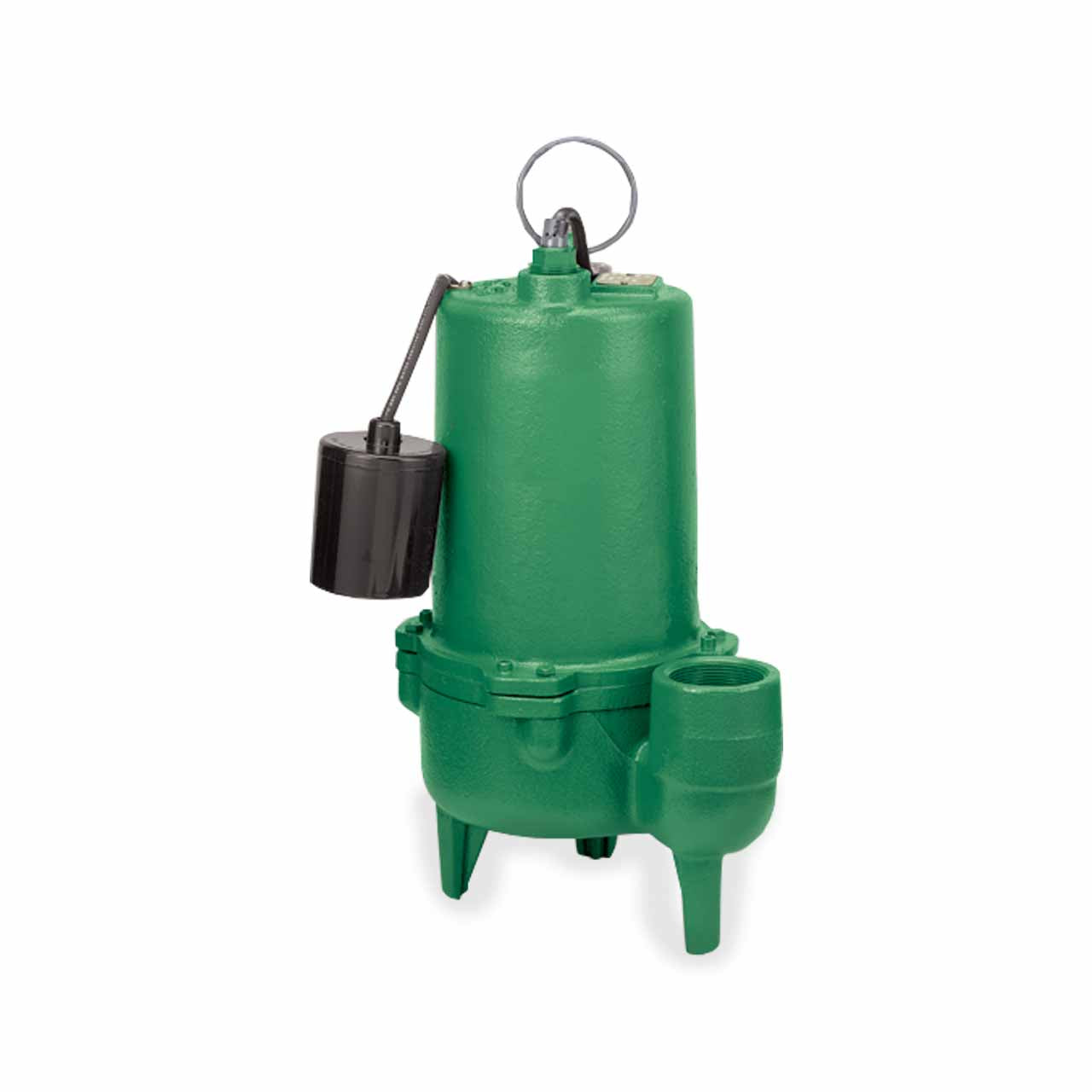

Myers MWS37 Series Sewage Pump Descriptions

The MWS37 Submersible Sewage Pump are designed for sewage, effluent and waste water removal, sump drainage, liquid transfer systems, circulation, dewatering and flood control. 1/2-HP sewage pump motors range from a 115V or a 230V single phase and come with a 20' 3-prong grounding type cord and plug.

Myers MWS37 Series Sewage Pump Applications

• Residential Sewage/Dewatering
• Wastewater Removal

Myers MWS37 Series Sewage Pump Features

• Bearing and Mechanical Seal – Permanently Lubricated for Long Life.
• Overload Protection – Built-In Thermal Overload with Automatic Reset.
• Stainless Steel Hardware – Allows for Easy Disassembly after Extended Service.
• Durable Construction - Full Cast Iron Design.
• 3" Discharge - Optional 3" Discharge Flange.

Myers MWS3750120T Series Sewage Pump Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 11.2
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 1725
• MAXIMUM HEAD: up to 26'
• MAXIMUM CAPACITY: up to 127 GPM
• SWITCH TYPE: Tethered
• SWITCH 'ON' LEVEL: 20"
• SWITCH 'OFF' LEVEL: 11"
• DISCHARGE PIPE SIZE: 3.0" NPT Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Cast Iron, Vortex
• CORD LENGTH: 20' Type SJTW-A/SJTW
• CORD SIZE: 16-3; Type: UL Listed Integrally Grounded 3-Prong Plug
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 130°F (55°C)

Myers MWS37 Series Sewage Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MWS37 Series Sewage Pump Product Resources

Download Myers MWS37 Series Specification Data

Download Myers MWS37 Series Installation & Service Manual
