Myers MWH50-23 Sewage Pump 0.5 HP 230V 3 PH Manual 20' Cord
Myers MWH50-23 Sewage Pump 0.5 HP 230V 3 PH Manual 20' Cord
SKU : MYRMWH5023
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued See MWH50 Series Pumps

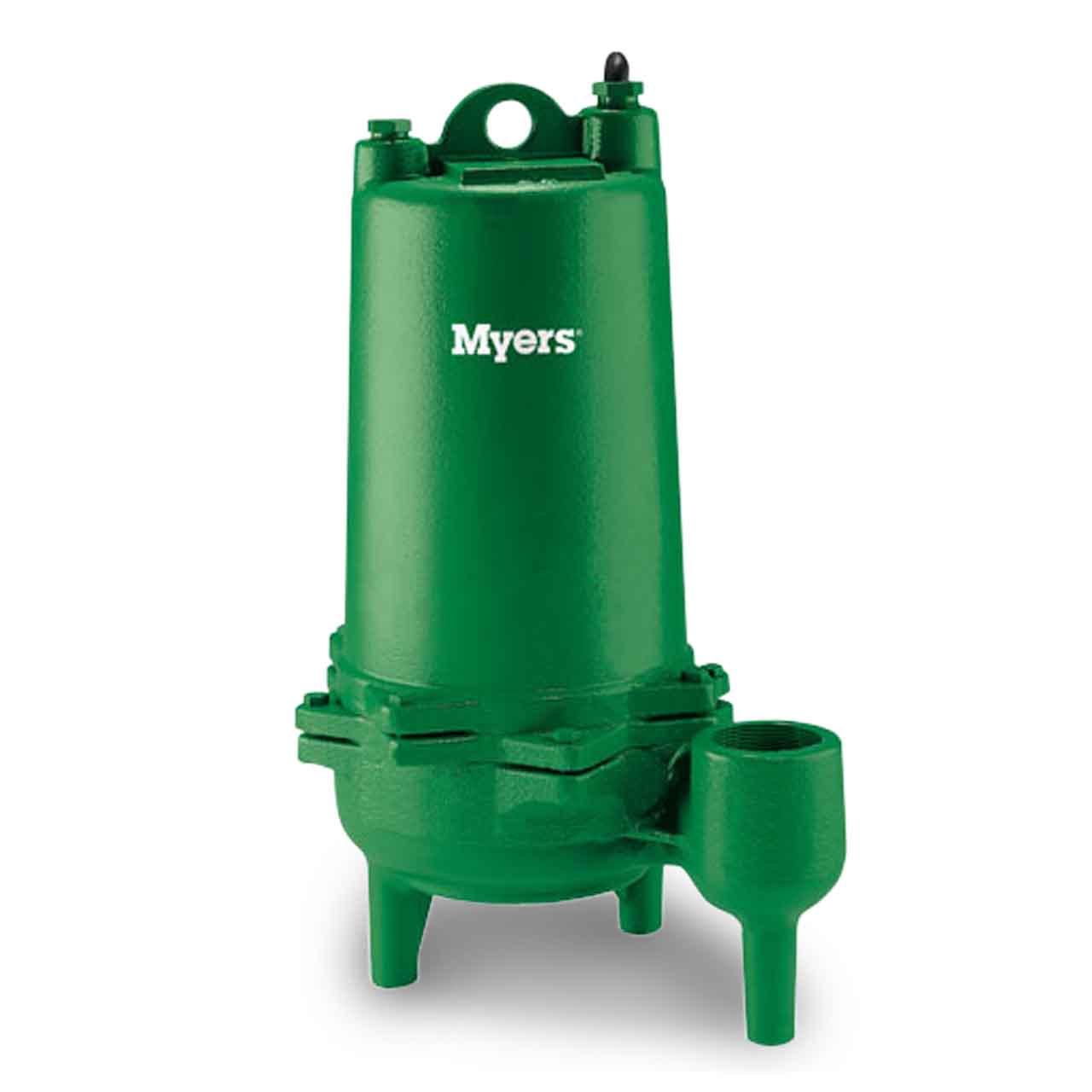

Myers MW Series Sewage Pump Description
The Myers MW Series sewage pumps are designed for light commercial and residential raw sewage applications. The enclosed two-vane impeller provides high-efficiency pumping and will easily handle stringy, trash 2" solids without clogging. The heavy-duty cast iron construction ensures years of service in demanding applications. Available in single and double seal models; cast iron and optional bronze impeller models.
Myers MW Series Sewage Pump Typical Applications
- Residential and Commercial Sewage
- High Capacity Sump
- Effluent
- Domestic Wastewater
- Septic Pumping Applications
Myers MW Series Sewage Pump Features
- High-Efficiency, Two-Vane, Enclosed Impeller for High-Efficiency Pumping
- Eliminates Possibility of Jamming between Impeller and Volute
- Original Performance can be Restored if Wear Occurs by Replacing Volute Seal Ring
- Oil-filled Motor for Maximum Heat Dissipation and Continuous Bearing Lubrication
Specifications
Specifications
Myers MWH50-23 Series Sewage Pump Specifications
- VOLTAGE: 3ø, 230V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 4.7
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450
- MAXIMUM HEAD: up to 38'
- MAXIMUM CAPACITY: up to 125 GPM
- MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 36”
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT
- MAXIMUM SOLIDS HANDLING SIZE: 2.0"
- IMPELLER TYPE: Ductile Iron, Enclosed
- CORD LENGTH: 20'
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
Myers MW Series Sewage Pump Performance Data
