Myers MWH50-21 Sewage Pump 0.5 HP 230V 1 PH Manual 20' Cord
Myers MWH50-21 Sewage Pump 0.5 HP 230V 1 PH Manual 20' Cord
SKU : MYRMWH5021
In Stock Quantity:0
:
Brand
:
Regular price
$2,134.35 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

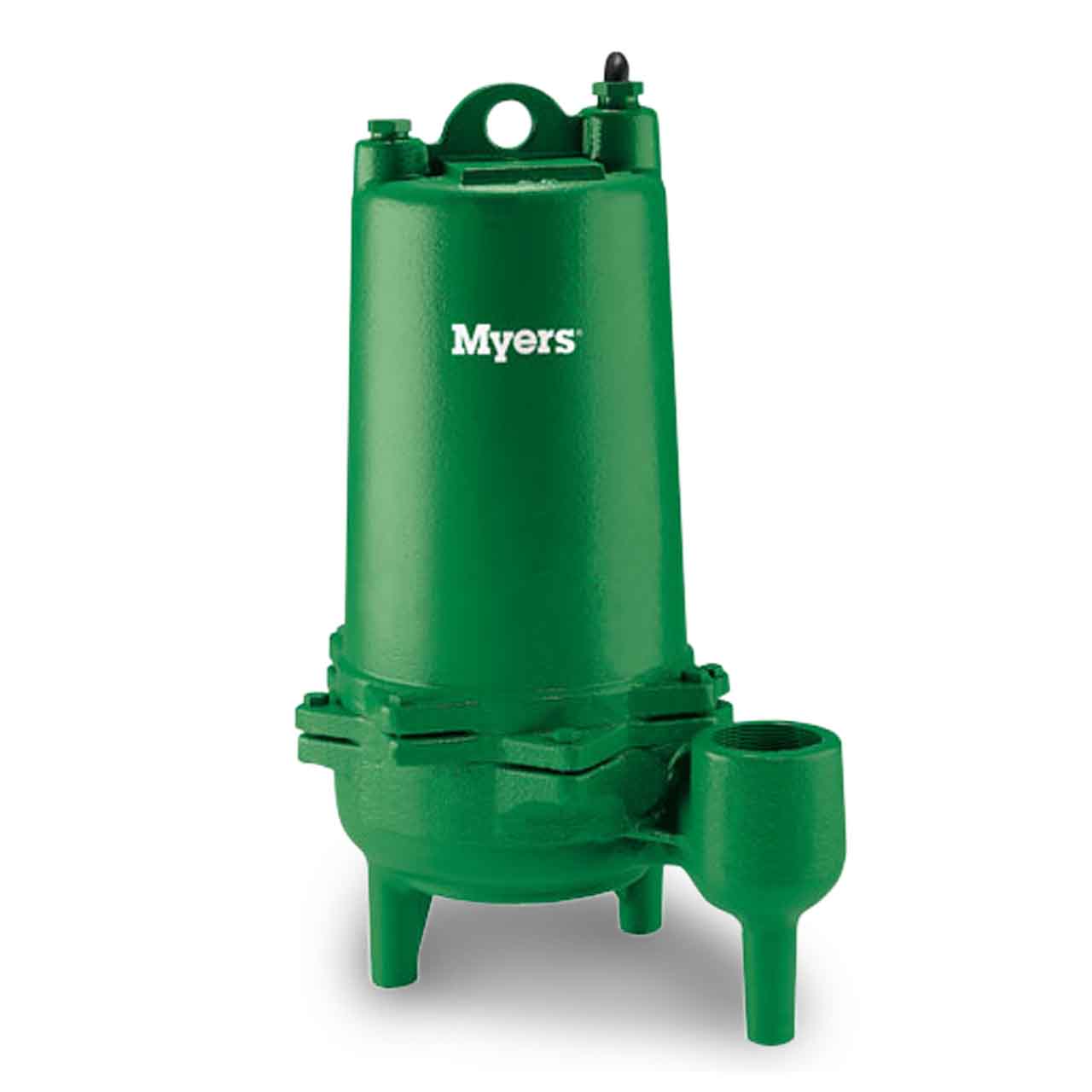

Myers MW Series Sewage Pump Description
The Myers MW Series sewage pumps are designed for light commercial and residential raw sewage applications. The enclosed two-vane impeller provides high-efficiency pumping and will easily handle stringy, trash 2" solids without clogging. The heavy-duty cast iron construction ensures years of service in demanding applications. Available in single and double seal models; cast iron and optional bronze impeller models.
Myers MW Series Sewage Pump Typical Applications
Sewage, High-Capacity Sump and Effluent
Myers MW Series Sewage Pump Features
- Cast Iron Tough: All Cast-Iron Housing and Volute Case Stand Tough Against Extremely Corrosive Environments.
- No Jamming: Enclosed Impeller Design Eliminates Jamming Between Impeller and Volute - Cast Iron or Bronze (optional).
- Powerful Starts: High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
- Motor Protection: Rugged, Oil-Filled Motor for Bearing Lubrication and Maximum Heat Dissipation.
- Guards Against Leaks: Optional Leak Probe Senses Water Leakage Past Seal (dual seal motors only)
- Prevents Overheating: Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature (single phase only)
- Easy Service: Remove Only Four Screws for Motor Access; Volute Seal Ring is Replaceable.
Specifications
Specifications
Myers MWH50-21 Sewage Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 6.9
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450
- MAXIMUM HEAD: up to 38'
- MAXIMUM CAPACITY: up to 125 GPM
- MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 36”
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2.0" NPT
- MAXIMUM SOLIDS HANDLING SIZE: 2.0"
- IMPELLER TYPE: Ductile Iron, Enclosed
- CORD LENGTH: 20'
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
Myers MW Series Sewage Pump Performance Data
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers MW Series Sewage Pump Product Resources
Download Myers MW Series Sewage Pump Specification Data
Download Myers MW Series Sewage Pump Installation & Service Manual
