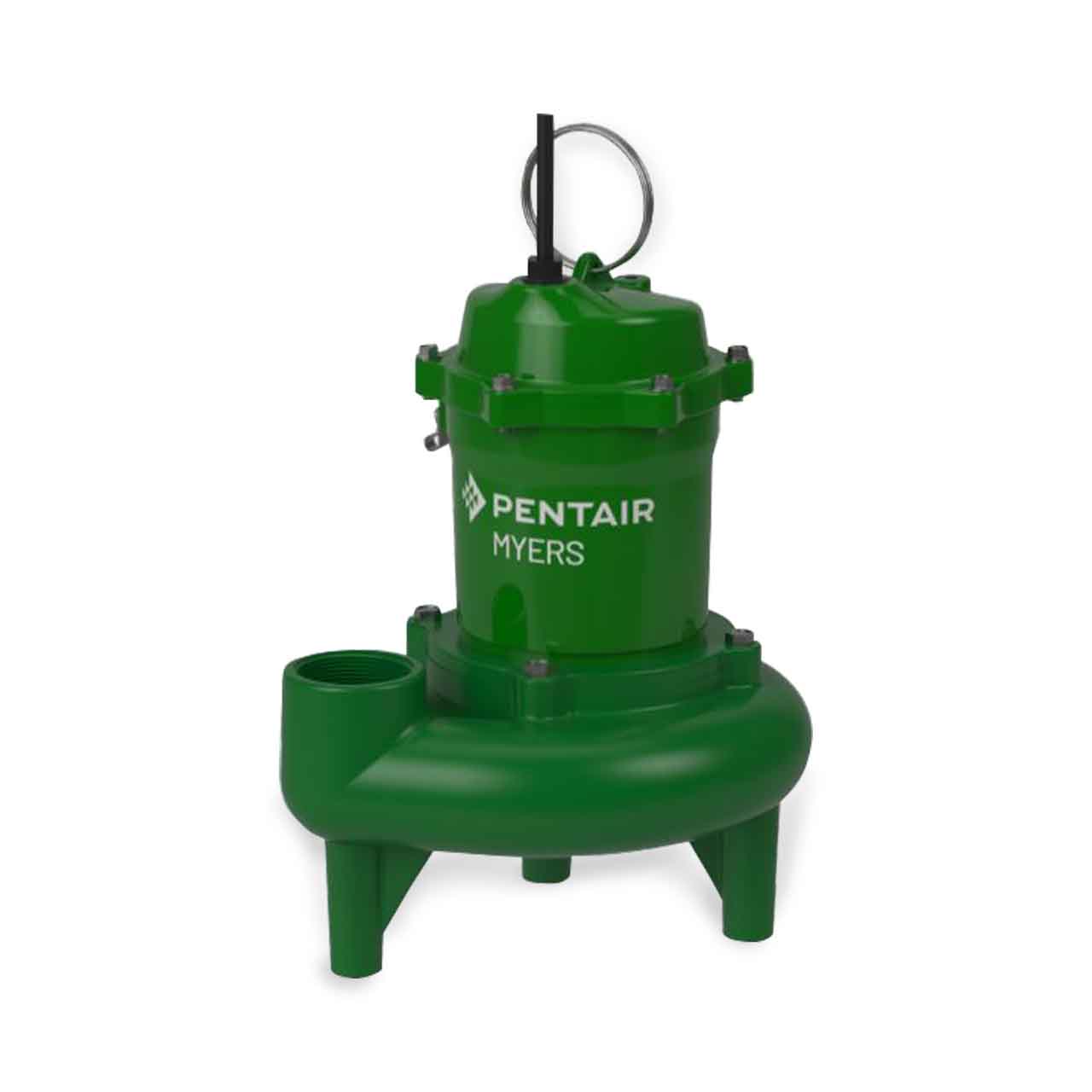

Myers MW50 Series Sewage Pump Description

The Myers MW50 Series Sewage Pumps are constructed of the most durable combination of materials to withstand the harshest sewage environments. The non-clog impeller can pass up to 2" solids. Provides the flow and head required for residential and light commercial applications. Models available for manual operation with external controls or automatic operation with tethered, piggyback mechanical float switch.

Myers MW50 Series Sewage Pump Typical Applications

• Sewage
• High Capacity Sump
• Effluent
• Domestic Wastewater
• Septic Pumping Applications

Myers MW50 Series Sewage Pump Features

• Two-Vane Impeller Provides Maximum Efficiency and Eliminates Jamming between Impeller and Volute - Engineered Thermoplastic Composition.
• Restore Performance Original Performance Standards can be Restored by Easily Replacing a Worn Volute Seal Ring.
• High-Capacity Handling Passes Full 2" Solids
• Cool Running Durable, Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation.
• Powerful Starts High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
• Protects Against High Heat Low Amp Draw from Efficient PSC Motor Means Less Heat Build-Up.
• Longer-Lasting Motor Lower Ball Bearing Eliminates Sleeve Bearing Wear and Reduces Motor Wear.
• Improved Sealing Long, Flexible Type 6 Seal Provides High-Pressure Sealing with Improved Seal Face Protection by Location.

Myers MW50-21P Series Sewage Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 4.5
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 1625
• MAXIMUM HEAD: up to 27'
• MAXIMUM CAPACITY: up to 135 GPM
• SWITCH TYPE: Wide-Angle Mercury-Free w/Piggyback Mechanical Float
• MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 36”
• DISCHARGE PIPE SIZE: 2.0" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Thermoplastic, Two-Vane
• CORD LENGTH: 20'
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers MW50 Series Sewage Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MW50 Series Sewage Pump Product Resources

Download Myers MW50 Series Data Sheet

Download Myers MW50 Series Specifications

Download Myers MW50 Series Installation & Operation Manual
