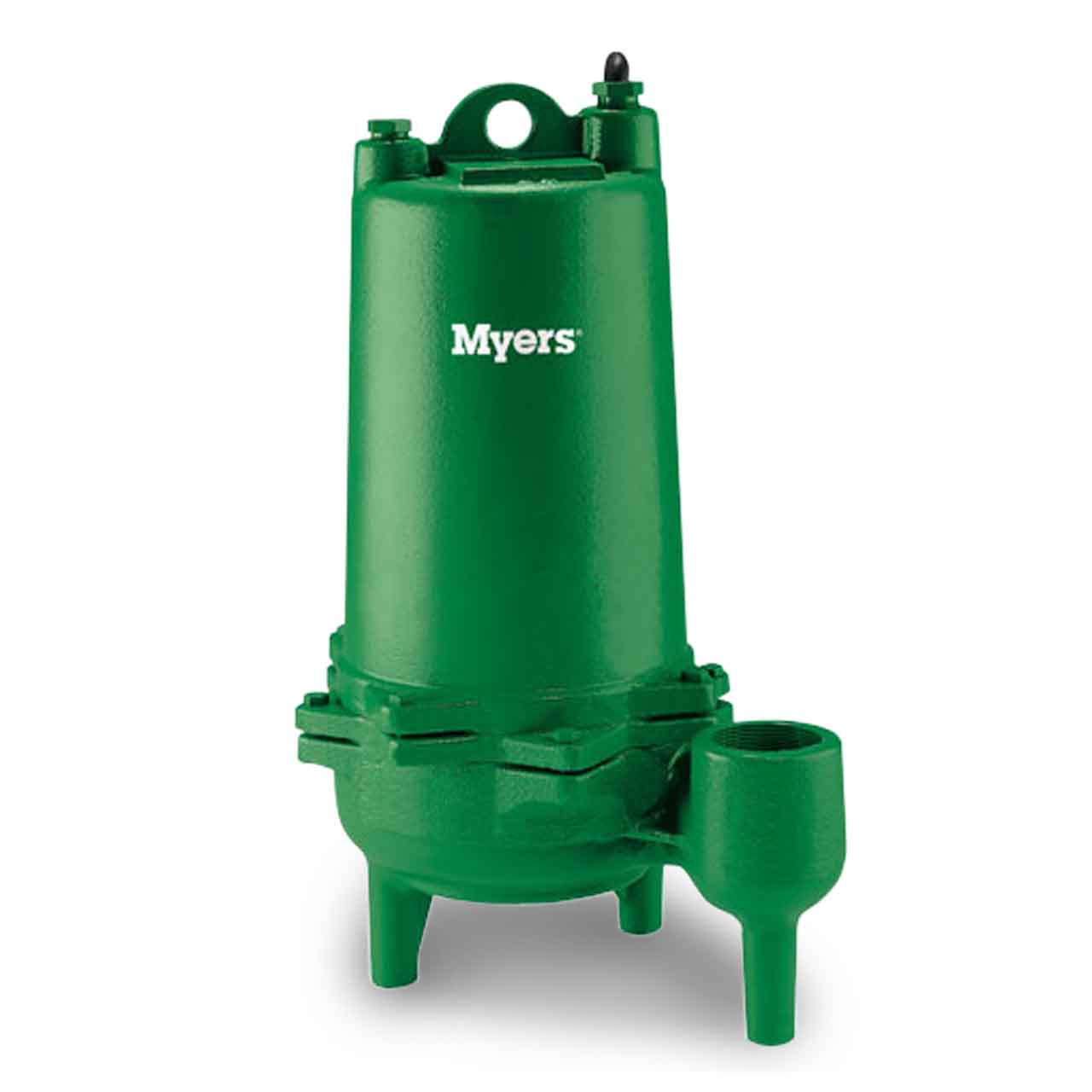

Myers MW Series Pump Description

High head, and optional dual seal performance for demanding residential and commercial sewage pumping applications

Myers MW Series Typical Applications

• Residential and Commercial Sewage
• High Capacity Sump
• Effluent
• Domestic Wastewater
• Septic Pumping Applications

Myers MW Series Features

• High-efficiency, two-vane, enclosed impeller for high-efficiency pumping
• Eliminates possibility of jamming between impeller and volute
• Original performance can be restored if wear occurs by replacing volute seal ring
• Oil-filled motor for maximum heat dissipation and continuous bearing lubrication
• High-torque, permanent split capacitor (PSC) single-phase motors; no starting switches or relays to wear out
• Double seal motor protection with seal leak detector probes included

Myers MW200D-01 Series Specifications

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 2.0 HP
• RPM: 3450
• MAXIMUM HEAD: up to 70'
• MAXIMUM CAPACITY: up to 165 GPM
• MINIMUM SUMP DIAMETER: Simplex: 24" Duplex: 36"
• DISCHARGE PIPE SIZE: 2" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 2"
• CORD LENGTH: 20'
• AMP DRAW (full load): 15.3
• VOLTAGE: 1ø, 200V, 60 Hz
• MAXIMUM LIQUID TEMPERATURE: 140°F (60C)
• IMPELLER: Ductile Iron; Bronze (optional)

Myers MW Series Performance Data
