ITEM HAS BEEN DISCONTINUED, SEE REPLACEMENT: Myers SR24MW50 Packaged Sewage System 0.5 HP 115V 20' Cord

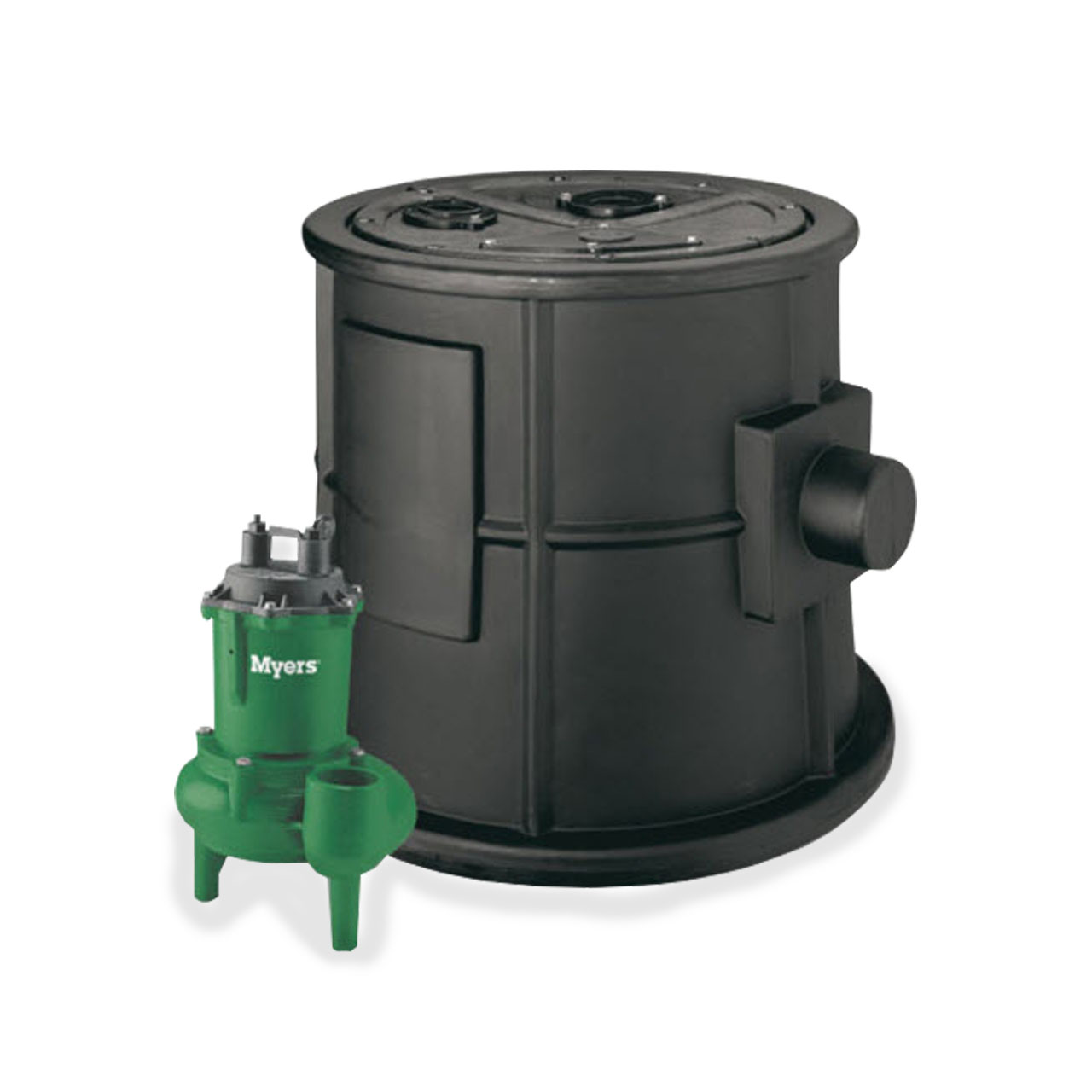

Myers MW-BP Sewage Basin Pro Package Description

The Myers MW-BP BasinPro Packaged Sewage System is an ideal choice for new construction or retrofit. Installer-friendly features include a 360° Top Grip for easy installation. The E-Z Switch Rod lets you easily remove the float switch without affecting the basin lid, pump or plumbing. Available with a 1/2 HP high endurance motor, with 2” solids-handling capacity. Passive radon protection provided by gas-tight seal between structural foam lid and basin.

Myers MW-BP Typical Applications

• Sewage
• High-Capacity Sump
• Effluent

Myers MW-BP Features

• MW50 Pump is pre-installed in basin, with integral torque stops to ensure stability
• Oil-filled motor for maximum heat dissipation and continuous bearing lubrication
• Recessed vortex impeller for free flow of liquids, solids up to 2" diameter
• Anti-floatation features include concrete splash lip and unique basin shape to keep the system from floating or becoming "un-installed"
• Integral 360° top grip for easy lifting and handling in tight spaces
• Stackable design allows for compact inventory
• E-Z Switch Rod allows for removal of float switch without disassembling basin lid, or handling pump or plumbing. Additional clip for secondary float included; float sold separately
• Basin is a 24" x 24" structural foam construction; 45-gallon capacity
• Shallow 24"-deep basin reduces installation time for digging pit
• Concrete-proof cover insert protects the system from damage during rough-in and masonry work
• Available with alarm

Myers MW50 Sewage Pump Specifications

• BODY CONSTRUCTION: Pump: Class 30 Cast Iron / Basin: Structural Foam
• HORSEPOWER: 0.5 HP
• RPM: 1625
• MAXIMUM HEAD: up to 27'
• MAXIMUM CAPACITY: up to 135 GPM
• FLOW AT 10' LIFT: 130 GPM
• DISCHARGE PIPE SIZE: 2.0" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• CORD LENGTH: 20'
• AMP DRAW (full load): 9.0
• VOLTAGE: 1ø, 115V, 60 Hz
• MAXIMUM LIQUID TEMPERATURE: 140°F
• IMPELLER: Thermoplastic

Myers MW50 Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MW-BP Product Resources

Download Myers MW-BP Specification Data

Download Myers MW-BP Installation & Service Manual
