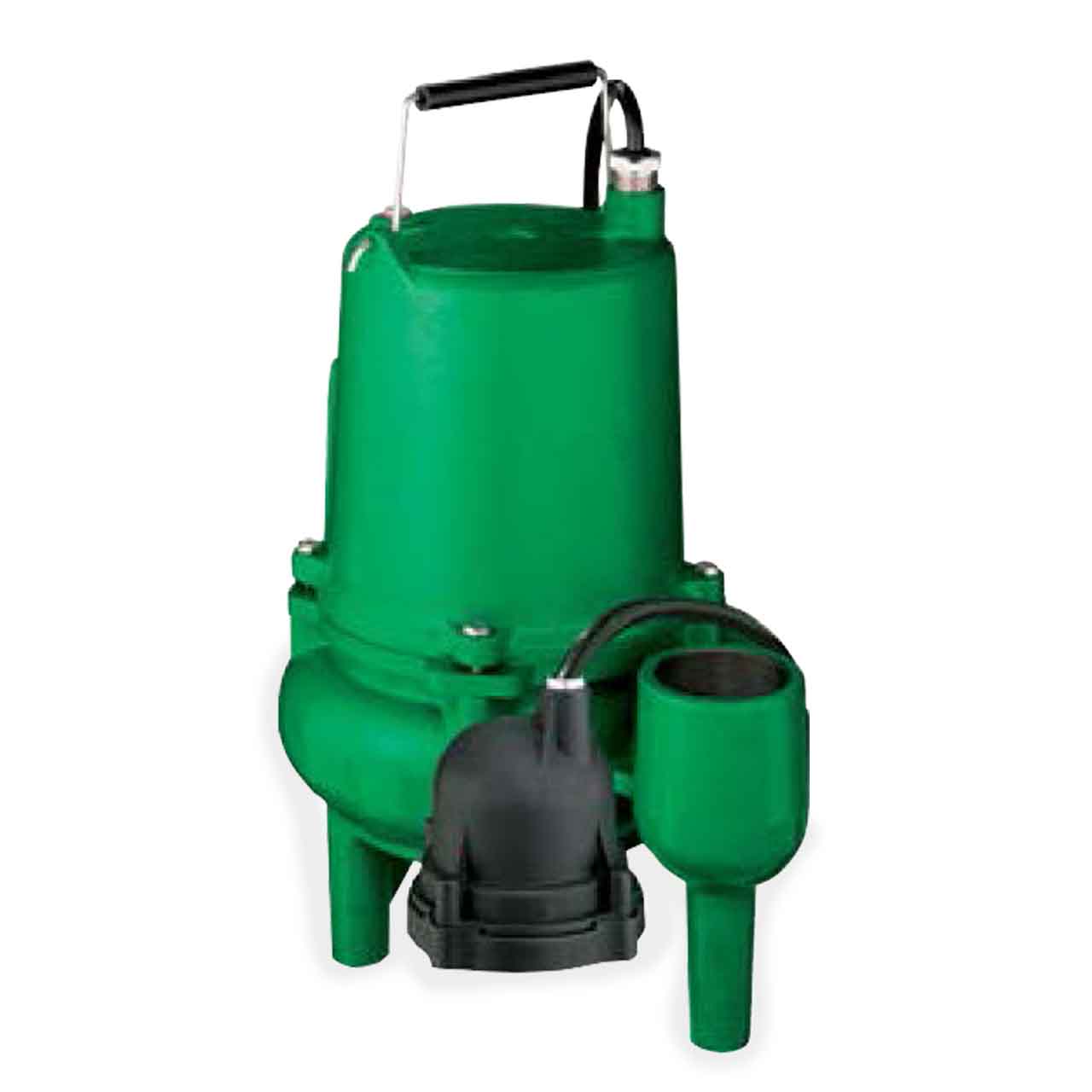

Myers MSP40 Series Submersible Sewage Pump Description

The Myers MSP40 Submersible Pump is specifically designed to meet the demands of handling wastewater and sewage in residential and commercial building applications. The 2" NPT discharge pump is available with a powerful 4/10 horsepower motor, in both automatic and manual configurations and handles capacities up to 130 gallons per minute and heads up to 26 feet.

Myers MSP40 Series Submersible Sewage Pump Typical Application

• Commercial Sewage
• Residential Sewage
• High-Capacity Sump
• Septic Tank Effluent

Myers MSP40 Series Submersible Sewage Pump Features

• Water-Resistant Power Cord with Molded Plug is Available in 10 or 20 Foot Lengths and is Easily Field Serviceable.
• Heavy-Duty Cast Iron Construction Assists in Dissipating Heat from Motor for Cooler Operation.
• Non-Clog, Non-Corrosive, Long Lasting Thermoplastic Impeller Capable of Handling up to 1-1/4" Spherical Solids.
• Precision Carbon and Ceramic Faced Mechanical Shaft Seal Provides a Long Life.
• Oil-Filled PCS Motor Features Superior Cooling Characteristics, Allowing Motor to Run Quiet for Years.
• Permanent Lubrication of Shaft Bearings, Minimizes Maintenance and Extends Service Life of the Pump.
• Motor Windings Contain an Automatic Reset Thermal Overload.
• Automatic Models Carry the Exclusive Myers Diaphragm Switch, Which Provides Proven Reliability in Installations Where a Float May Hang Up.
• Unique "Piggyback" Plug Design Allows for Easy Conversion to Manual Operation. Simply Remove Switch Plug and Insert Motor Plug Directly into an Electric Outlet (also and easy way periodically cycle the pump to ensure it is operating properly).
• Includes "Piggyback" Diaphragm Switch

Myers MSP40A2 Submersible Sewage Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 0.4 HP
• AMP DRAW (full load): 3.8
• MOTOR TYPE: Permanent-Split Capacitor Motor (PSC)
• RPM: 1650
• MAXIMUM HEAD: up to 25'
• MAXIMUM CAPACITY: up to 135 GPM
• SWITCH TYPE: Diaphragm Switch w/ Piggyback Plug
• DISCHARGE PIPE SIZE: 2.0" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 1-1/4"
• IMPELLER TYPE: Thermoplastic, 2-Vane Reinforced
• CORD LENGTH: 20' Type SJTW
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 104°F (40C)

Myers MSP40 Series Submersible Sewage Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MSP40 Series Submersible Sewage Pump Product Resources

Download Myers MSP40 Series Submersible Sewage Pump Sales Brochure

Download Myers MSP40 Series Submersible Sewage Pump Installation & Service Manual
