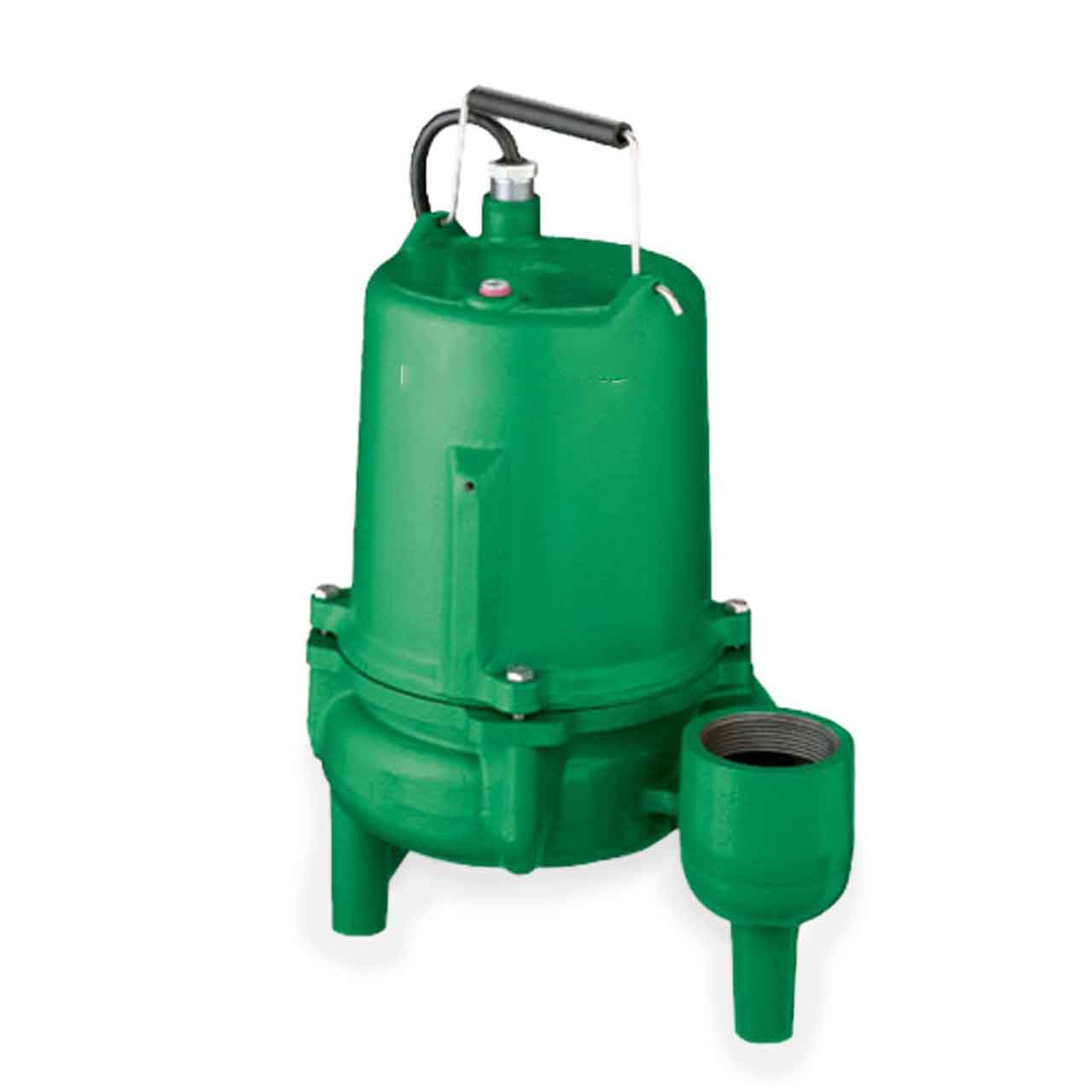

Myers MSKV50 Series Submersible Sewage Description

The Myers MSKV50 Submersible Pump is specifically designed to meet the demands of residential wastewater and sewage applications, and the quality standards of the professional plumber. The 2" NPT discharge pump is available with a powerful 1/2 HP performance, in both automatic and manual configurations. The MSKV50 can handle capacities up to 180 gallons per minute and heads over 200 feet.

Myers MSKV50 Series Submersible Sewage Typical Application

Residential Sewage, High-Capacity Sump and Septic Tank Effluent.

Myers MSKV50 Series Submersible Sewage Superior Features

• Maximize Efficiency: New PSC Motor Offers Same Amp Draw as Before with Better Torque and Flow.
• Clog Resistant Design: High-Capacity Vortex Thermoplastic Impeller Efficiently Handles up to 2 Inch Spherical Solids and Features a Screenless Bottom Inlet
• Water Resistant Power Cord: Molded Plug is Available in 10 or 20 Foot Lengths.
• Cast Iron Construction: Heavy-Duty Design Provides Long Life by Dissipating Heat for Cooler Motor Operation.
• Low Friction Design: Ball Bearing Design is Oil Filled and Supports the Motor Shaft, Providing Perfect Alignment of Rotor Resulting in Less Friction and Less Frequent Service and Intervals.
• Mechanical Shaft Seals: Carbon and Ceramic Faced for Long Lasting Life Free of Leaking.
• Best in Class Warranty: Unparalleled 3 Year Warranty, Your Guarantee of Quality and Performance.

Myers MSKV50M2 Submersible Sewage Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 6.0
• MOTOR: Oil Filled with Automatic Reset Thermal Overload
• RPM: 1750
• MAXIMUM HEAD: up to 22'
• MAXIMUM CAPACITY: up to 190 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 2.0" NPT Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Thermoplastic, Recessed Vortex
• CORD LENGTH: 20'
• CORD SIZE: 16/3; Type: SJTW
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140˚ F

Myers MSKV50 Series Submersible Sewage Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MSKV50 Series Submersible Sewage Pump Product Resources

Download Myers MSKV50 Series Submersible Sewage Pump Data Sheet

Download Myers MSKV50 Series Submersible Sewage Pump Installation & Service Manual
