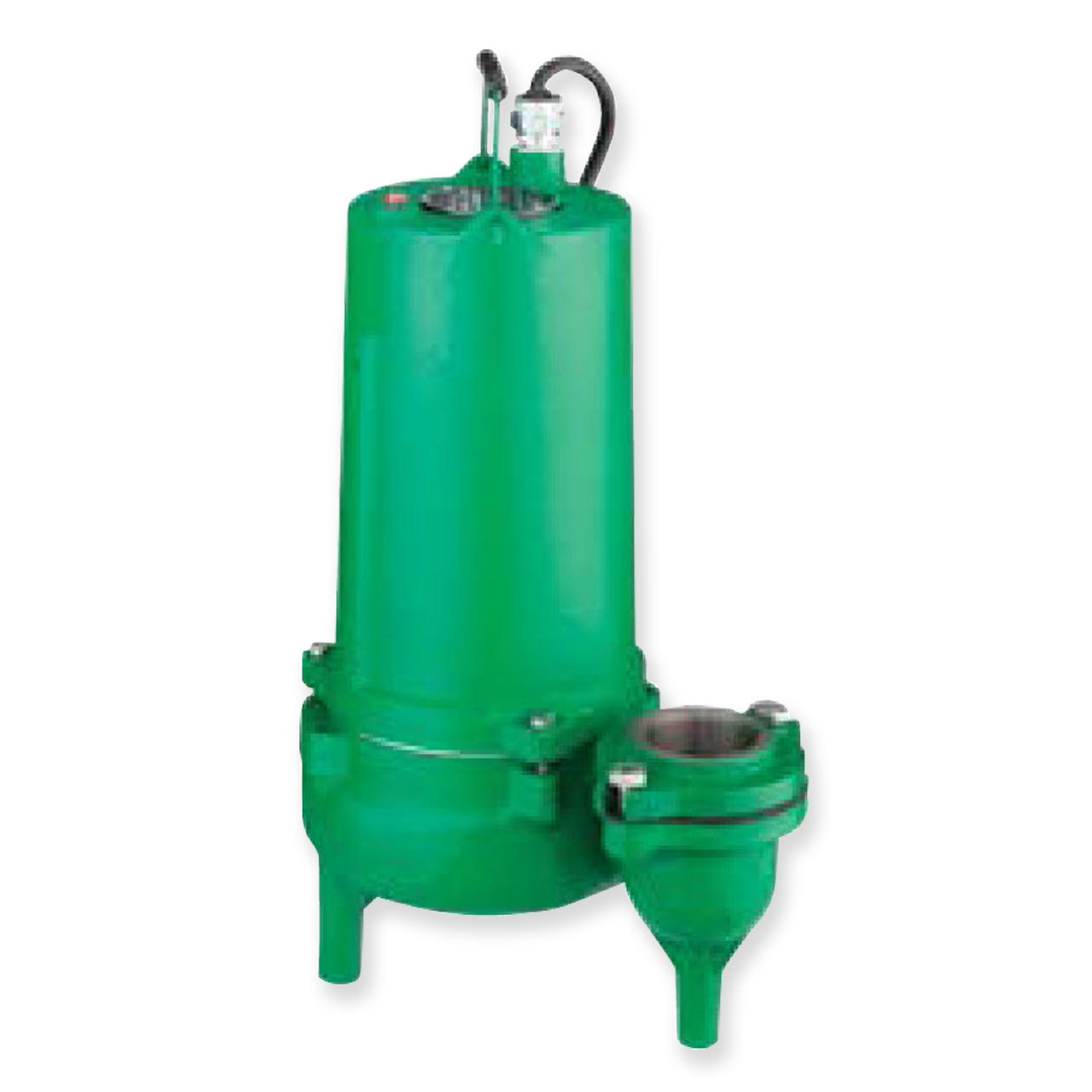

Myers MSKHS100 Submersible Sewage Pump Description

The Myers Submersible MSKHS100 is specifically designed to meet the demands of wastewater and sewage handling in residential and commercial building applications.

Myers MSKHS100 Submersible Sewage Pump Typical Application

• Commercial Sewage
• Residential Sewage
• High-Capacity Sump
• Septic Tank Effluent

Myers MSKHS100 Submersible Sewage Pump Features

• Carbon/Ceramic Type 21 Mechanical Seal
• Upper and Lower Single-Row Ball-Bearing Construction
• Submersible, Two-Vane, Semi-Open Cast Iron Impeller
• Piggyback Plug Available for Easy Maintenance and Switch Replacement

Myers MSKHS100M6 Submersible Sewage Pump Technical Details

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 1.0 HP
• RPM: 3450
• MAXIMUM HEAD: up to 58'
• MAXIMUM CAPACITY: up to 150 GPM
• DISCHARGE PIPE SIZE: 2" NPT Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 2"
• CORD LENGTH: 30' Power Cord
• VOLTAGE: 3ø, 200V
• FULL LOAD AMPS: 8.8
• MOTOR: Oil Filled with Automatic Reset Thermal Overload
• IMPELLER CONSTRUCTION: Cast Iron

Myers MSKHS Submersible Sewage Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MSKHS Submersible Sewage Pump Product Resources

Download Myers MSKHS Sales Brochure

Download Myers MSKHS Installation & Service Manual
