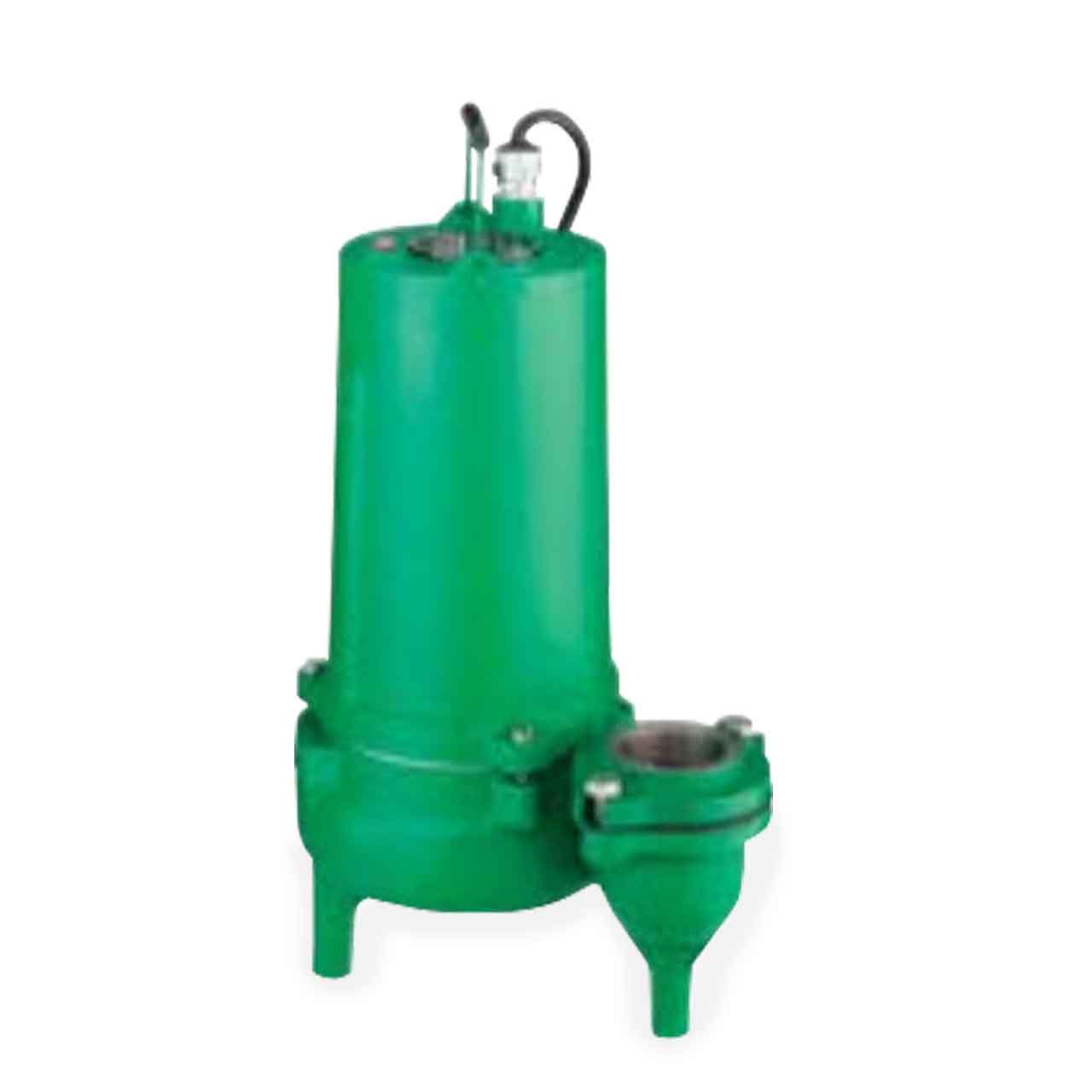

Myers MSK75 Cast Iron Sewage Pump Description

The Myers MSK75 Submersible Sewage Ejector Pump is specifically designed to meet the demands of commercial and residential sewage or sump applications.

Myers MSK75 Cast Iron Sewage Pump Typical Application

• Commercial Sewage
• Residential Sewage
• High-Capacity Sump
• Septic Tank Effluent

Myers MSK75 Cast Iron Sewage Pump Features

• Carbon/Ceramic Type 21 Mechanical Seal
• Oil-Filled Motor with Automatic Reset Thermal Overload for Maximum Protection
• Upper and Lower Single-Row Ball-Bearing Construction
• Nonclogging, Two-Vane, Semi-Open Cast Iron Impeller
• PUMP SWITCH NOT INCLUDED

Myers MSK75M4 Cast Iron Sewage Pump Specifications

• VOLTAGE: 3ø, 460V, 60Hz
• HORSEPOWER: 0.75 HP
• AMP DRAW (full load): 1.8
• MOTOR: Split Phase w/ Thermal Overload Protection
• RPM: 1750
• MAXIMUM HEAD: up to 33'
• MAXIMUM CAPACITY: up to 150 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 2.0" NPT Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Cast Iron, Two-Vane
• CORD LENGTH: 20'
• CORD SIZE: 16/4; Type: STWA
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140˚ F

Myers MSK75 Cast Iron Sewage Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MSK75 Cast Iron Sewage Pump Product Resources

Download Myers MSK Series Cast Iron Sewage Pump Sales Brochure

Download Myers MSK75 & MSK100 Cast Iron Sewage Pump Installation & Service Manual
