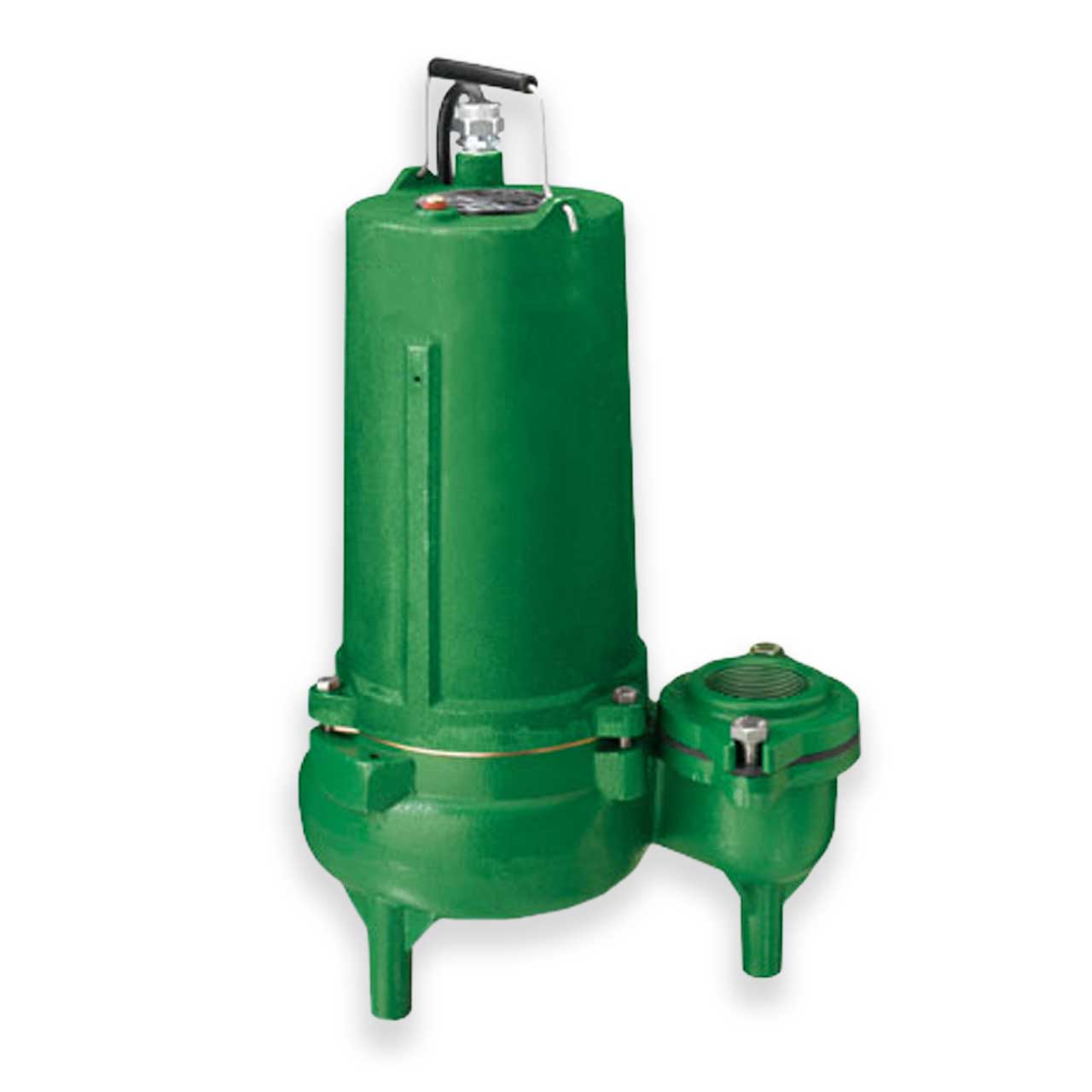

Myers MSK60 Cast Iron Sewage Pump Description

The Myers MSK60 Submersible Sewage Ejector Pump is specifically designed to meet the demands of commercial and residential sewage or sump applications.

Myers MSK60 Cast Iron Sewage Pump Typical Application

• Commercial Sewage
• Residential Sewage
• High-Capacity Sump
• Septic Tank Effluent

Myers MSK60 Cast Iron Sewage Pump Features

• Carbon/Ceramic Type 21 Mechanical Seal
• Oil-Filled Motor with Automatic Reset Thermal Overload for Maximum Protection
• Upper and Lower Single-Row Ball-Bearing Construction
• Nonclogging, Two-Vane, Semi-Open Cast Iron Impeller
• Includes Diaphragm Pressure Switch

Myers MSK60 Cast Iron Sewage Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 0.6 HP
• AMP DRAW (full load): 6.0
• MOTOR: Split Phase w/ Thermal Overload Protection
• RPM: 1750
• MAXIMUM HEAD: up to 28'
• MAXIMUM CAPACITY: up to 130 GPM
• SWITCH TYPE: Diaphragm Pressure Switch
• DISCHARGE PIPE SIZE: 2.0" NPT Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Cast Iron,Two-Vane
• CORD LENGTH: 20'
• CORD SIZE: 16/3; Type: SJTW
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 130˚ F

Myers MSK60 Cast Iron Sewage Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MSK60 Cast Iron Sewage Pump Product Resources

Download Myers MSK Series Cast Iron Sewage Pump Sales Brochure

Download Myers MSK60 Cast Iron Sewage Pump Installation & Service Manual
