Myers MSB3S200M6-4 Submersible Sewage Pump 2.0 HP 200V 3PH Manual 35' Cord
Myers MSB3S200M6-4 Submersible Sewage Pump 2.0 HP 200V 3PH Manual 35' Cord
SKU : MYR28222E002
In Stock Quantity:0
:
Brand
:
Regular price
$6,440.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

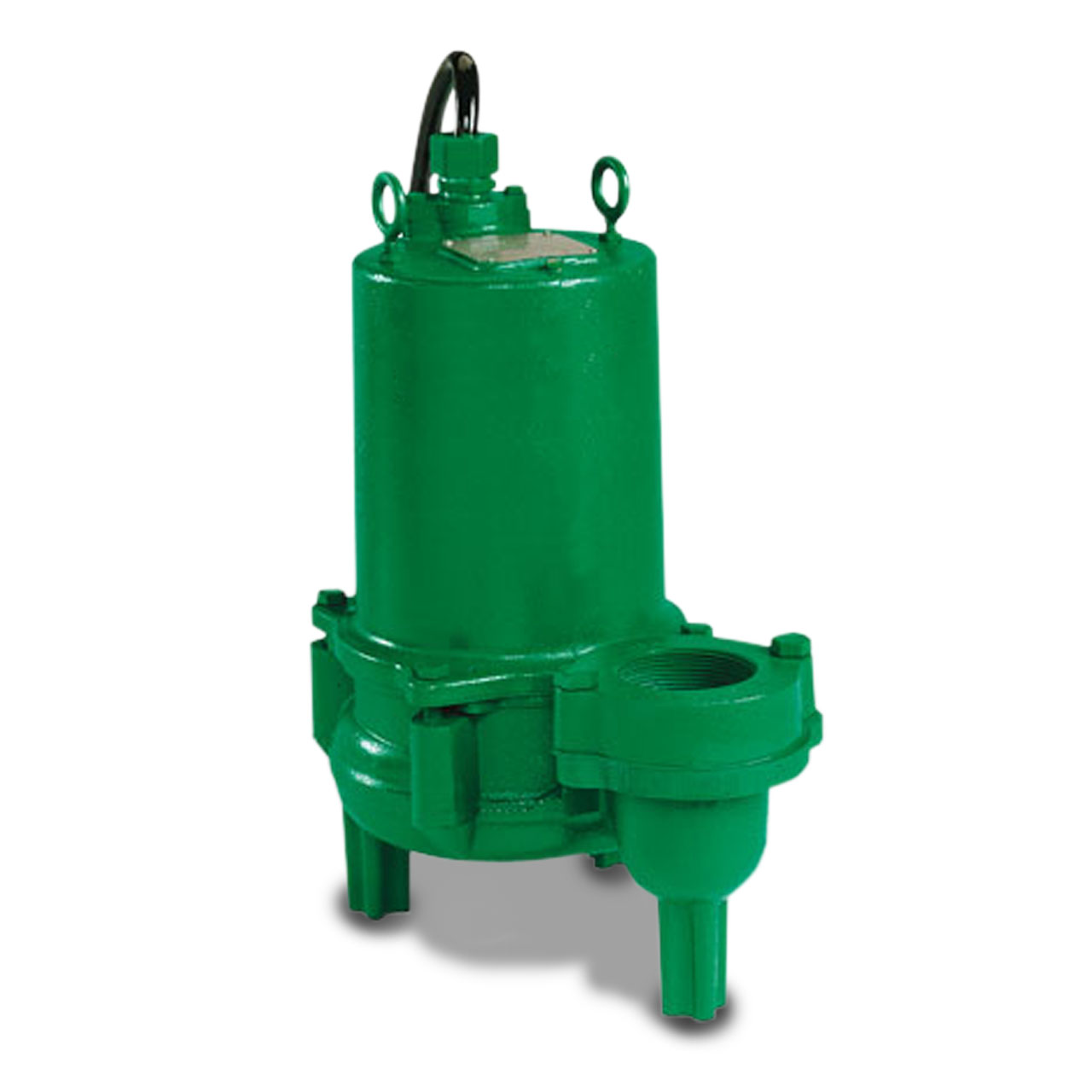

Myers MSB3S Submersible Sewage Pump Description
Myers MS3S/MSB3S Submersible Sewage Pumps are suited for wet-well installation in a wide variety of municipal, industrial and building trades applications. The MS3S/MSB3S Sewage Pumps are designed to transfer raw sewage with solids as large as 2-1/2 inches through pipes up to 3 inches in diameter.
Myers MSB3S Submersible Sewage Pump Typical Application
- Municipal Sewage Lift Stations
- Industrial Sewage Transfer
- Dewatering of Storm Water
Myers MSB3S Submersible Sewage Pump Features
- Motor the Fully Enclosed Oil-Filled Motor Efficiently Dissipates Heat and Locks Out Moisture so you Receive Reliable Pumping Service.
- CPE Jacketed Power Cord Sealed by Both the Cord Grip and the Epoxy Barrier.
- Stainless Steel Shaft Eliminates Corrosion and Fatigue to Give Longer Pump Life. The Minimum Shaft Overhang Decreases Deflection and Increases Bearing and Seal Life.
- Ball Bearings the Heavy Duty Ball Bearings, Upper (radial) and Lower (thrust), are Submerged in Oil to Provide Permanent Lubrication and Ensure Long Service Life.
- Mechanical Seal Constructed with a Ceramic Stationary Face and Carbon Rotating Face for Long Service Life.
- Impeller Two-Vane, Semi-Open Design for Efficient Operation without Clogging. The Impeller has Pump-Out Vanes to Prevent Material Buildup Around Shaft and Seal.
- Vertical Discharge Model MSB3S Handles 2-1/2" Spherical Solids and has a Flanged 3" Vertical Discharge.
Specifications
Specifications
Myers MSB3S200M6-4 Submersible Sewage Pump Technical Details
- VOLTAGE: 3ø, 200V, 60Hz
- HORSEPOWER: 2.0 HP
- AMP DRAW (full load): 7.8
- MOTOR TYPE: Enclosed, Oil Cooled Induction, VFD Suitable
- RPM: 1750
- MAXIMUM HEAD: up to 40'
- MAXIMUM CAPACITY: up to 325 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 3.0" Flanged Vertical
- MAXIMUM SOLIDS HANDLING SIZE: 2-1/2"
- IMPELLER TYPE: Cast Iron, Non-Clogging, Two-Vane, Semi-Open
- IMPELLER DIAMETER: Varies
- CORD LENGTH: 35'
- CORD SIZE: 14-4; Type: SOOW, W
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
- CONTROL BOX REQUIRED
Myers MSB3S Submersible Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers MSB3S Submersible Sewage Pump Product Resources
Download Myers MS3S/MSB3S Series Specifications
