Myers MS3SD300M2-4 Submersible Sewage Pump 3 HP 230V 1PH Manual 1750 RPM 35' Cord
Myers MS3SD300M2-4 Submersible Sewage Pump 3 HP 230V 1PH Manual 1750 RPM 35' Cord
SKU : MYR28221E111
In Stock Quantity:0
:
Brand
:
Regular price
$6,216.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

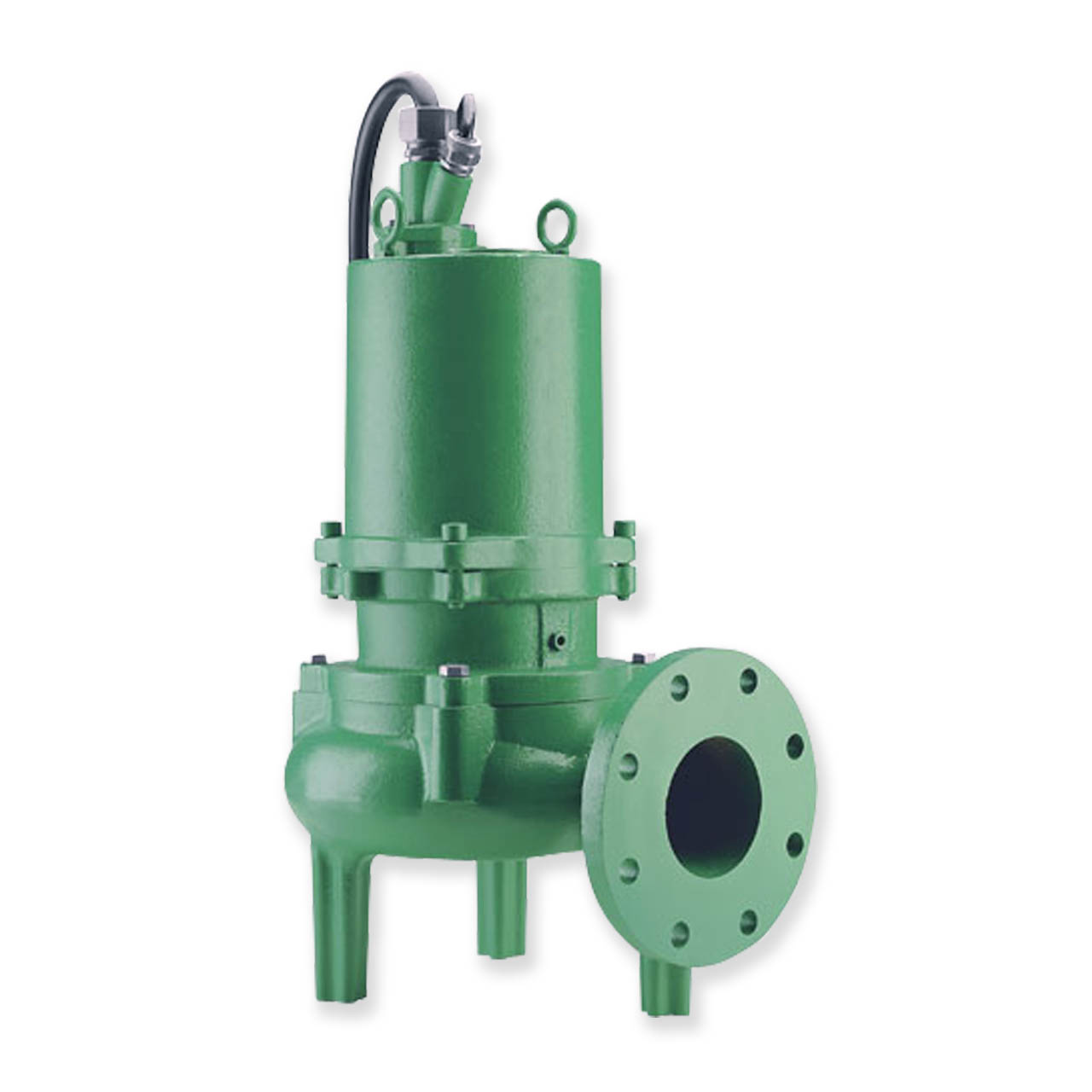

Myers MS3SD Sumbersible Sewage Pump Description
The Myers MS3SD/MSB3SD Sumbersible Sewage Pumps are suited for wet-well installation in a wide variety of municipal, industrial and building trades applications. 3-HP Sewage Pumps are necessary to move sewage from a building to the sewer system and in many cases from the sewer system to the treatment plant.
Myers MS3SD Sumbersible Sewage Pump Typical Application
- Municipal Sewage Lift Stations
- Industrial Sewage Transfer
- Dewatering of Storm Water
Myers MS3SD Sumbersible Sewage Pump Features
- Motor Fully Enclosed Oil-Filled Motor Efficiently Dissipates Heat and Locks Out Moisture so you Receive Reliable Pumping Service.
- CPE Jacketed Power Cord Sealed by Both the Cord Grip and the Epoxy Barrier.
- Stainless Steel Shaft Eliminates Corrosion and Fatigue to Give Longer Pump Life. The Minimum Shaft Overhang Decreases Deflection and Increases Bearing and Seal Life.
- Ball Bearings the Heavy Duty Ball Bearings, Upper (radial) and Lower (thrust), are Submerged in Oil to Provide Permanent Lubrication and Ensure Long Service Life.
- Mechanical Seal Constructed with a Ceramic Stationary Face and Carbon Rotating Face for Long Service Life.
- Impeller Two-Vane, Semi-Open Design for Efficient Operation without Clogging. The Impeller has Pump-Out Vanes to Prevent Material Buildup Around Shaft and Seal.
- Horizontal Discharge Model MS3SD Handles 2-1/2" Spherical Solids and has a Flanged 3" Horizontal Discharge.
- Sensor Probe A Seal-Failure Sensor Probe (for connection to a seal failure alarm) is Standard on Three-Phase Units and Available as an Option on Single Phase Models.
Specifications
Specifications
Myers MS3SD300M2-4 Sumbersible Sewage Pump Technical Details
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 3.0 HP
- AMP DRAW (full load): 17.1
- MOTOR TYPE: Enclosed, Oil Cooled Induction
- RPM: 1750
- MAXIMUM HEAD: up to 35'
- MAXIMUM CAPACITY: up to 385 GPM
- SWITCH TYPE: Manual
- MINIMUM SUMP DIAMETER: Simplex 30"
- DISCHARGE PIPE SIZE: 3.0" Flanged Horizontal
- MAXIMUM SOLIDS HANDLING SIZE: 2-1/2"
- IMPELLER TYPE: Ductile Iron, Non-Clogging, Two-Vane, Semi-Open
- IMPELLER DIAMETER: Varies
- CORD LENGTH: 35'
- CORD SIZE: 10-4; Type: SOOW, W
- BODY CONSTRUCTION: Class 30 Cast Iron; ASTM A-48
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
- CONTROL BOX REQUIRED
Myers MS3SD Sumbersible Sewage Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers MS3SD Sumbersible Sewage Pump Product Resources
Download Myers MS3SD/MSB3SD Series Specifications
