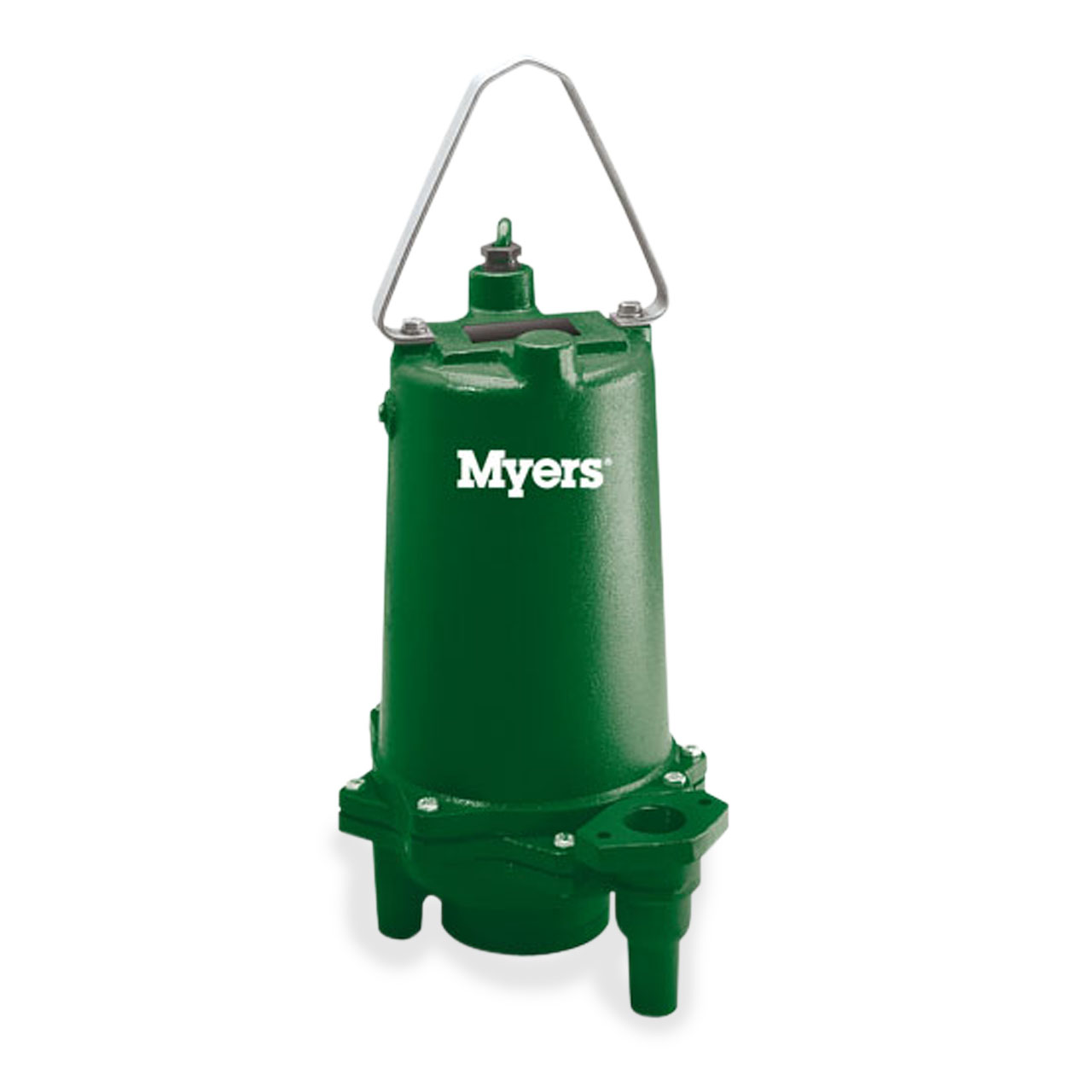

Myers MRG20-21AK Residential Grinder Pump 2.0 HP 230V 1 PH Automatic 20' Cord
Myers MRG20-21AK Residential Grinder Pump 2.0 HP 230V 1 PH Automatic 20' Cord
SKU : MYRMRG2021AK
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Myers
Myers MRG20 Residential Grinder Pump Description
The MRG20 series features a proven cutter mechanism and recessed impeller design to effectively macerate typical sewage solids into fine slurry. Its durable motor will deliver many years of reliable service.
Myers MRG20 Residential Grinder Typical Applications
- High Head Solids Removal
- Applications where Solids Maceration is Required
Myers MRG20 Residential Grinder Features
- Oil-Filled Motor for Maximum Heat Dissipation and Constant Bearing Lubrication
- Recessed Impeller Reduces Radial Bearing Loads and Increases Bearing Life
- High-Torque Capacitor Starts Single-Phase Motor for Assured Starting Under Heavy Load; No External Capacitor Needed
- Heavy-Duty 2 HP Listed, Wide-Angle Float Switch
- On-Winding Current and Temperature-Sensitive Overload
- Designed for Easy Maintenance
- Shredding Ring and Grinder Impeller are Replaceable without Dismantling Pump or Motor (440 Stainless Steel, 58-60 Rockwell)
- 300 Series Stainless Steel Fasteners
Specifications
Specifications
Myers MRG20-21AK Residential Grinder Specifications
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 2 HP
- RPM: 3450
- MAXIMUM HEAD: up to 105' ft. (32m)
- MAXIMUM CAPACITY: up to 45 GPM (170 LPM)
- SWITCH TYPE: Tethered Automatic
- MINIMUM SUMP DIAMETER: Simplex: 24" Duplex: 36"
- DISCHARGE PIPE SIZE: 1¼" NPT
- CORD LENGTH: 20'
- AMP DRAW (full load): 15.0
- VOLTAGE: 1ø, 230V AC, 60 Hz
- MAXIMUM LIQUID TEMPERATURE: 140°F (60C)
- Leg kit included with "K" models. The leg kit is required if not using lift -out rail system.
Myers MRG20 Residential Grinder Performance Data
