DISCONTINUED

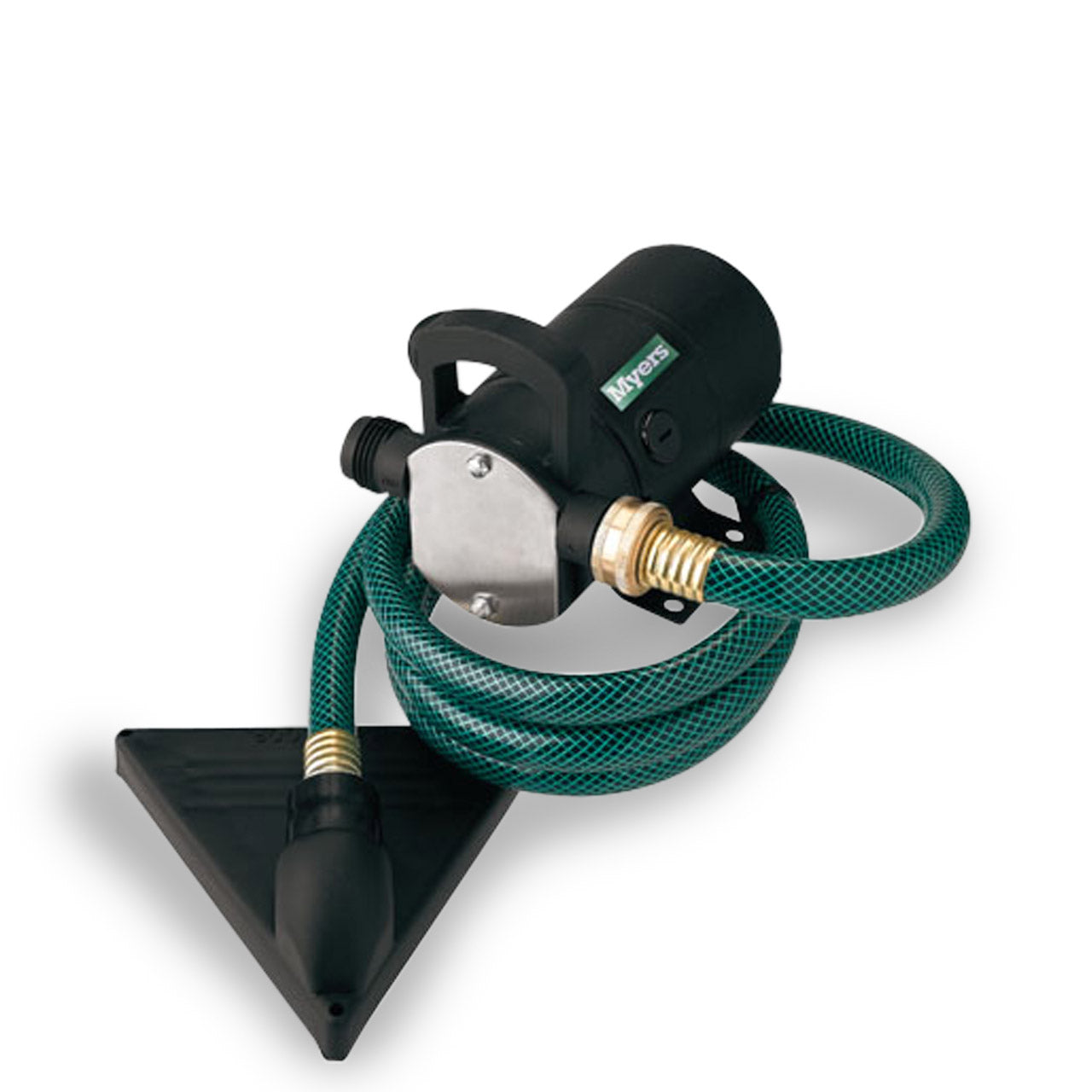

Myers MES106 Multi-Purpose Pump Description

This water transfer pump is the ideal solution for automatically removing liquid condensation from air conditioning and heating systems, refrigeration equipment and much more. The MES106 transfer pump system solves water transfer needs by removing water from waterbeds, aquariums, non-draining sinks and water standing on basement floors. Pump constructed of proven materials promotes long pump life. Compact design provides easy hookup, application use and storage when not in use.

Myers MES106 Multi-Purpose Pump Typical Application

• Transferring Water
• Filling Tanks
• Draining Shallow Flooded Areas
• Emptying Waterbeds
• Emptying Aquariums and Non Draining Sinks

Myers MES106 Multi-Purpose Pump Features

• Up to 5 GPM with 10' Head
• Connects to Standard Garden Hose
• 115VAC with 9' Power Cord
• Removes Standing Water Down to 1/8" Depth
• Weighs only 4 lbs
• Built-In Carrying Handle Includes 6' Suction Hose and Floor Drainer
• To Operate, Just Attach a Standard Hose to Pump Discharge and Plug into any 115V Outlet
• Air-Cooled, High-Torque, Non-Submersible Motor with Overload Protection

Myers MES106 Multi-Purpose Pump Specifications

• VOLTAGE: 1ø, 115V, 60 Hz
• HORSEPOWER: 1/12 HP
• AMP DRAW (full load): 2.0
• MOTOR TYPE: Air-Cooled Brush Motor
• SHUT-OFF HEAD: 10' (3.1 m)
• MAXIMUM CAPACITY: up to 5 GPM
• SWITCH TYPE: No Float Switch
• DISCHARGE SIZE: Standard Garden Hose (male)
• SUCTION SIZE: Standard Garden Hose (male)
• IMPELLER TYPE: Buna-N
• CORD LENGTH: 6'  w/ 3-Prong Grounded Plug
• BODY CONSTRUCTION: Thermoplastic
• MAX INTERMITTENT WATER TEMP: 140°F (54C)
• MOTOR: Air-Cooled Brush Motor

Myers MES106 Multi-Purpose Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers ME106 Multi-Purpose Pump Product Resources

Download Myers MES106 Specification Data

Download Myers MES106 Installation & Service Manual
