Myers ME7 Series Cast Iron Effluent Pump Descriptions

The Myers ME7 Cast Iron Effluent Pumps are designed for sewage, effluent and wastewater removal, sump drainage, liquid transfer systems, circulation, dewatering and flood control. Pump motors range from a 115V or a 230V single phase to a 208-230V or 460V three phase. All models come with a 20' 3-prong grounding type cord and plug. They are rated for continuous duty when fully submerged in a liquid with a maximum temperature of 105° F (40.5° C)

Myers ME7 Series Cast Iron Effluent Pump Typical Applications

• Effluent and Wastewater Removal
• Sump Drainage
• Dewatering
• Flood Control

Myers ME7 Series Cast Iron Effluent Pump Features

• Bearing and Mechanical Seal – Permanently Lubricated for Long Life.
• Overload Protection – Built-In Thermal Overload with Automatic Reset.
• Cord Design – Prevents Oil Loss From and Moisture Protection for Motor.
• Serviceability – Heavy duty Lift-Out Ring, Field Serviceable.
• Solids Handling – 3/4” Spherical Capability.
• Stainless Steel Hardware – Allows for Easy Disassembly After Extended Service
• Controls – Standard Controls Available for Automatic Operation.
• Float – Mechanical (Non Mercury).

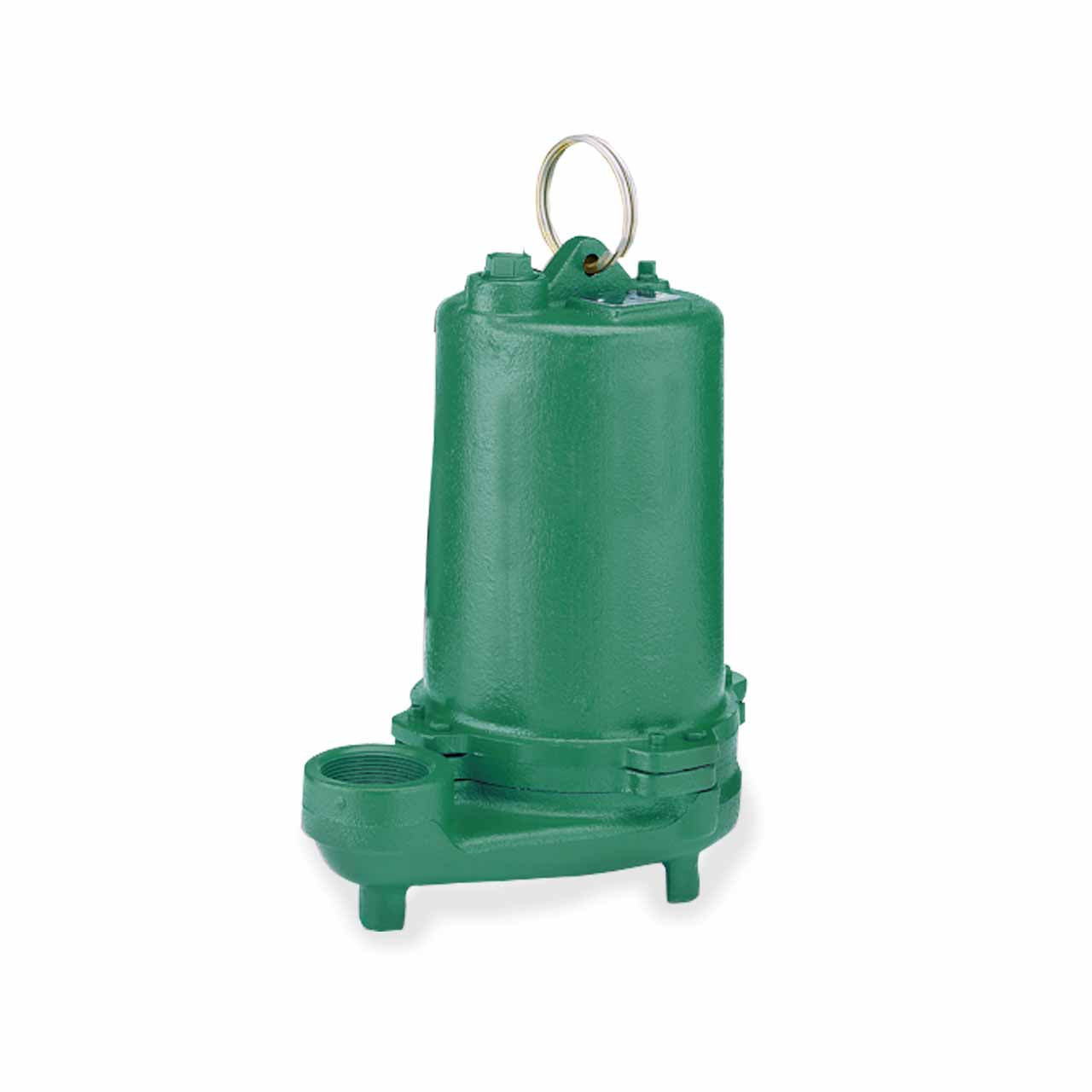

Myers ME750120M Cast Iron Effluent Pump Specifications

• VOLTAGE: 1ø, 115V, 60 Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 13.0
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450
• MAXIMUM HEAD: 60'
• MAXIMUM CAPACITY: 110 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 2.0" NPT
• MAXIMUM SOLIDS HANDLING: 3/4"
• IMPELLER TYPE: Thermoplastic Vortex
• CORD LENGTH: 20' Oil and Water Resistant
• CORD SIZE: 16-3 Type; SJTW-A/SJTW w/Integrally Grounded 3-Prong Plug
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 130°F (55C)
• DUTY RATING: Continuous at Max Temperature of 105° F (40.5° C)

Myers ME7 Series Cast Iron Effluent Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers ME7 Series Cast Iron Effluent Pump Product Resources

Download Myers ME7 Series Cast Iron Effluent Pump Specification Data

Download Myers ME7 Series Cast Iron Effluent Pump Installation & Service Manual
