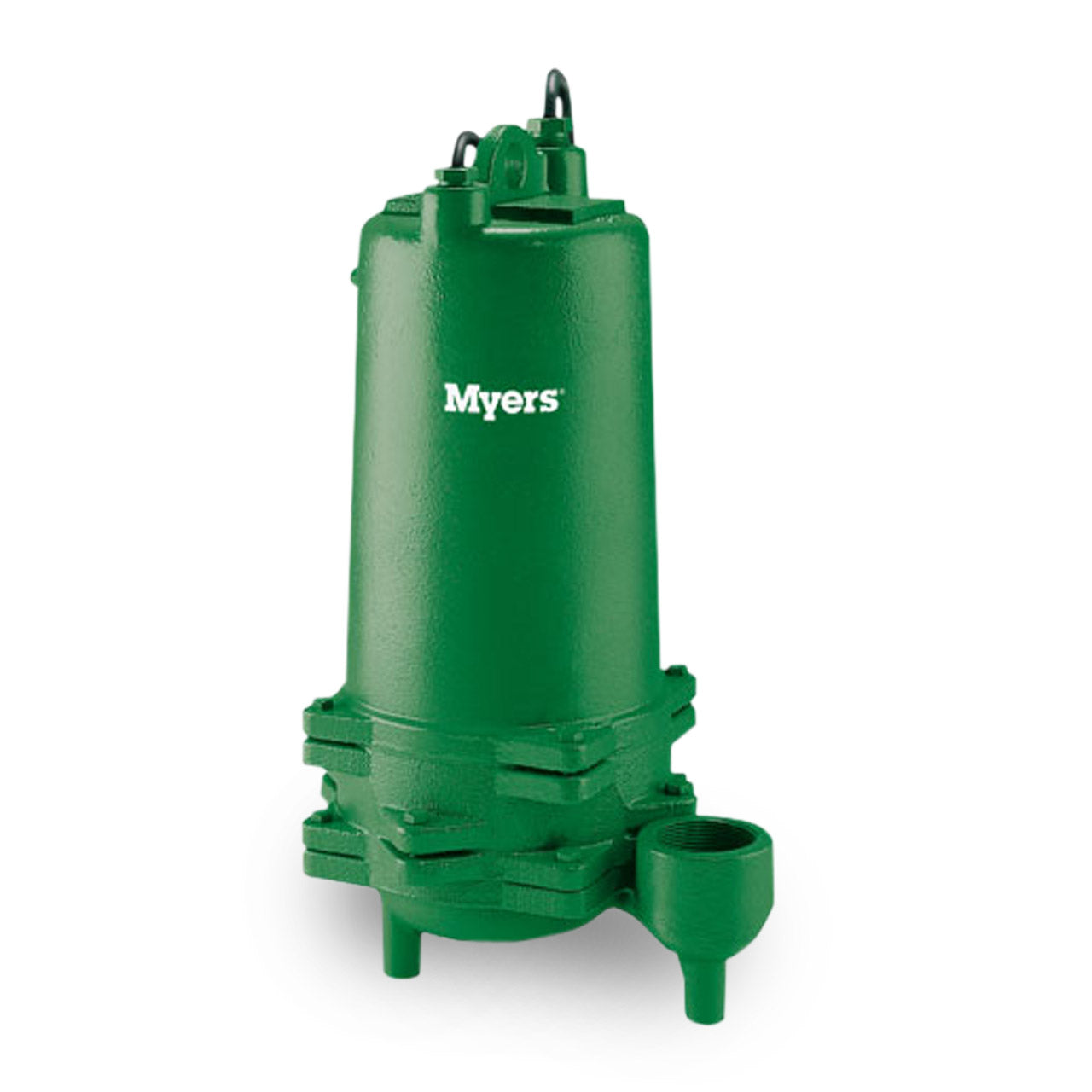

Myers ME Series Cast Iron Effluent Pump Description

The Myers ME Series Effluent Pumps are designed specifically for effluent pressure distribution mounds, trenches and high-flow drainage applications. Heavy-duty construction with finest corrosion-resistant materials for years of extended service in the harshest environments. Available in single- and double-seal models; thermoplastic and bronze impeller models.

Myers ME Series Cast Iron Effluent Pump Typical Applications

• Effluent Removal
• Trench and Mound Pressure Dose Systems
• Sump Drainage
• Water Transfer
• Flood Control

Myers ME Series Cast Iron Effluent Pump Features

• High-Efficiency, Two-Vane, Enclosed Impeller Provides Ideal Performance for Efficient Dosing Impeller Passes Full 3/4" Solids
• Enclosed Impeller Design Eliminates the Possibility of Jamming or Corrosion Between Impeller and Volute
• Oil-Filled Motor for Maximum Heat Dissipation and Constant Bearing Lubrication
• High-Torque, Permanent Split Capacitor (PSC), Single-Phase Motors; No Starting Switches or Relays to Wear Out
• Optional Seal Leak Probe Warns of Seal Leak Condition (dual seal motors only); Helps Prevent Costly Motor Damage
• Motors Have a Winding Current and Temperature-Sensitive Overload( Single Phase Only)
• Volute Seal Ring is Replaceable; Restores Pump to Original Performance if Wear Should Occur
• Motor is Held in Place by 4 Screws; Easily Removed if Service is Ever Needed

Myers ME50S-11 Cast Iron Effluent Pump Specifications

• VOLTAGE: 1ø, 115V, 60 Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 12.1
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450
• MAXIMUM HEAD: 53'
• MAXIMUM CAPACITY: 90 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: Simplex 24" Duplex: 36"
• DISCHARGE PIPE SIZE: 2.0" NPT
• MAXIMUM SOLIDS HANDLING: 3/4"
• IMPELLER TYPE: Thermoplastic, Enclosed Two Vane
• CORD LENGTH: 20'
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers ME Series Cast Iron Effluent Pump Performance Data
