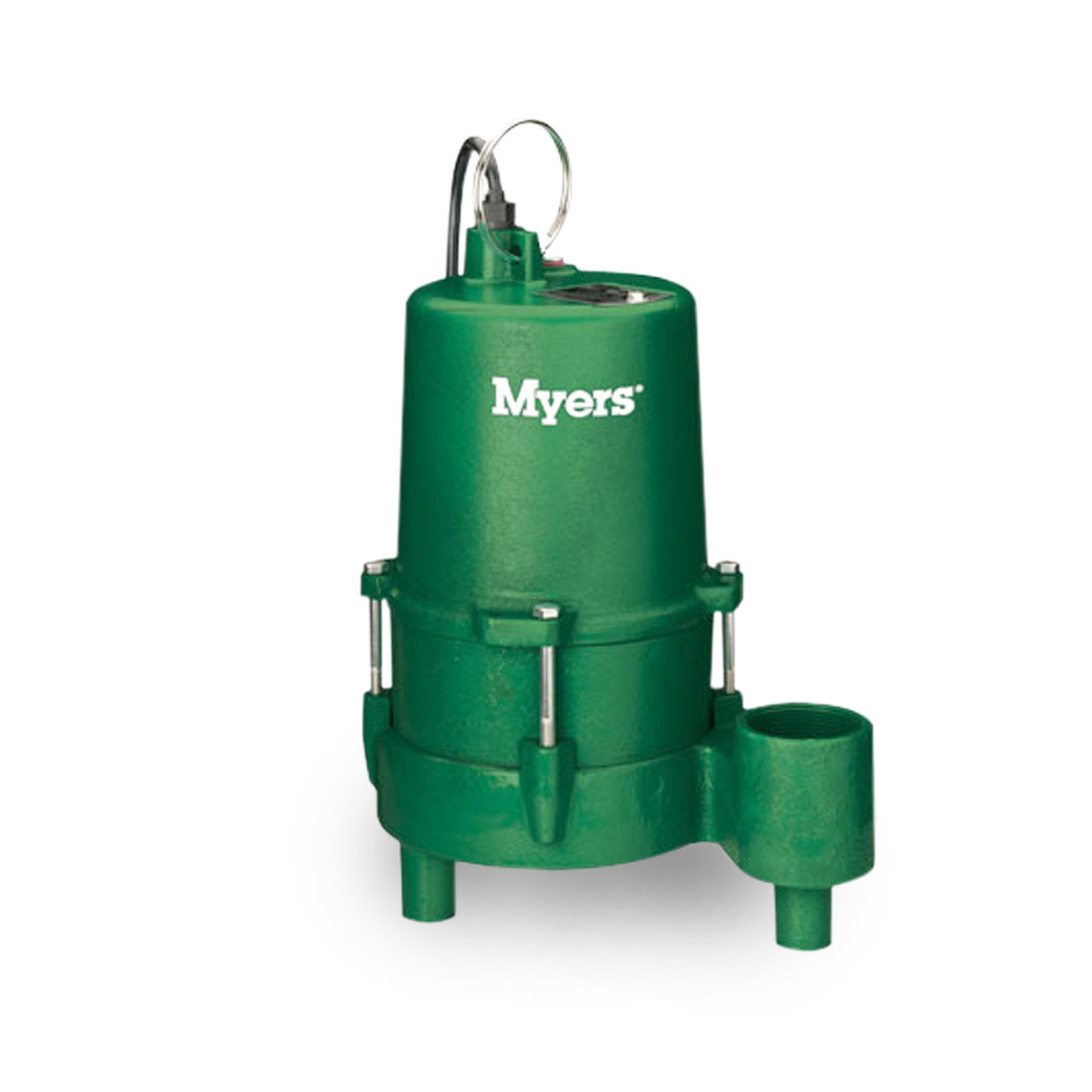

Myers ME45 Series Cast Iron Effluent Pump Description

The Myers ME45 Series Effluent and Drain Water Pumps are designed to meet the demand of residential septic tanks or sump applications. This powerful 1/2 HP pump featuring a cast iron impeller provides flow and head required for demanding dosing systems and drainage applications.

Myers ME45 Series Cast Iron Effluent Pump Typical Applications

• Effluent Removal
• Sump Drainage
• Water Transfer
• Flood Control

Myers ME45 Series Cast Iron Effluent Pump Features

• Powerful Torque: High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
• Rugged and Cool: Rugged-Built, Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation.
• Seal Protection: Upper and Lower Ball Bearing and Heavy Duty Type 6 Seal for Added Pump Life.
• Thermal Protection: Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature.

Myers ME45MC-11 Cast Iron Effluent Pump Specifications

• VOLTAGE: 1ø, 115V, 60 Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 8.6
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450
• MAXIMUM HEAD: 44'
• MAXIMUM CAPACITY: 87 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 36”
• DISCHARGE PIPE SIZE: 2.0" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• IMPELLER TYPE: Thermoplastic, Non-Clog
• CORD LENGTH: 20'
• CORD SIZE: 16-3; Type: SJTOW
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers ME45 Series Cast Iron Effluent Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers ME45 Series Cast Iron Effluent Pump Product Resources

Download Myers ME45 Series Cast Iron Effluent Pump Specification Data

Download Myers ME45 Series Cast Iron Effluent Pump Performance Data

Download Myers ME45 Series Cast Iron Effluent Pump Installation & Service Manual
