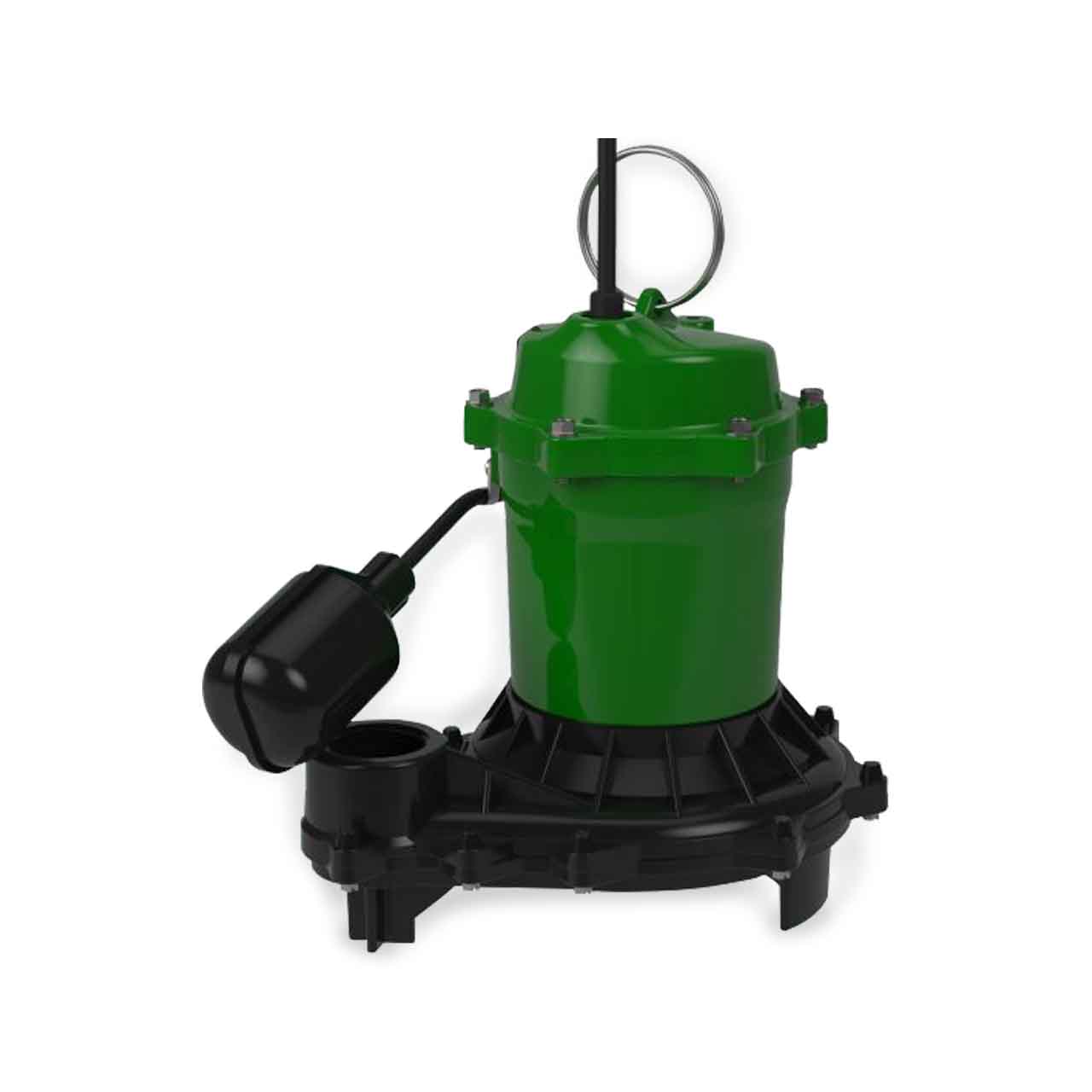

DISCONTINUED SEE REPLACEMENT: Myers ME40P-1 Cast Iron Effluent Pump 0.4 HP 115V 10' Cord Automatic

Myers ME40 Series Effluent Pump Description

The Myers® ME40 Series Effluent Pumps are one of the industry's most efficient models featuring a 4/10 HP motor. This powerful pump provides the flow and head required for demanding dosing systems and drainage applications. The ME40 incorporates cast iron, engineered thermoplastic and stainless steel in combination to produce a powerful and highly durable pump. Available with automatic float switch or manual models for use with external controls for precision dosing installations.

Myers ME40 Series Effluent Pump Typical Applications

• Effluent Removal
• Sump Drainage
• Water Transfer
• Flood Control

Myers ME40 Series Effluent Pump Features

• Efficient Dosing: Two-Vane Cast Iron Impeller Design Provides Maximum Dosing Efficiency.
• Powerful Torque: High-Torque, Permanent Split Capacitor (PSC) Motor. No Starting Switches or Relays to Wear Out.
• Rugged and Cool: Rugged-Built, Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation.
• Seal Protection: Lower Ball Bearing and Heavy Duty Type 6 Seal for Added Pump Life.
• Automatically Better: Field-Tested, Wide-Angle, Mercury-Free Float Switch Provides Maximum Drawdown (automatic models only).
• Dual Operation: Automatic Float Switch or Manual Operation by Plugging Directly into Outlet.
• Thermal Protection: Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature.

Myers ME40PC-1 Effluent Pump Specifications

• VOLTAGE: 1ø, 115V, 60 Hz
• HORSEPOWER: 0.4 HP
• AMP DRAW (full load): 12.0
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 1650
• MAXIMUM HEAD: 32'
• MAXIMUM CAPACITY: 80 GPM
• SWITCH TYPE: Tethered Automatic
• MINIMUM SUMP DIAMETER: Simplex 24" Duplex 36"
• DISCHARGE PIPE SIZE: 1-1/2" FNPT
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• IMPELLER TYPE: Cast Iron, Two-Vane Enclosed
• CORD LENGTH: 20'
• CORD SIZE: 16-3; Type: SJTW
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers ME40 Series Effluent Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers ME40 Series Effluent Pump Product Resources

Download Myers ME40 Series Effluent Pump Specifications

Download Myers ME40 Series Selling Features

Download Myers ME40 Series Effluent Pump Installation & Service Manual
