DISCONTINUED: MYERS Effluent Pumps

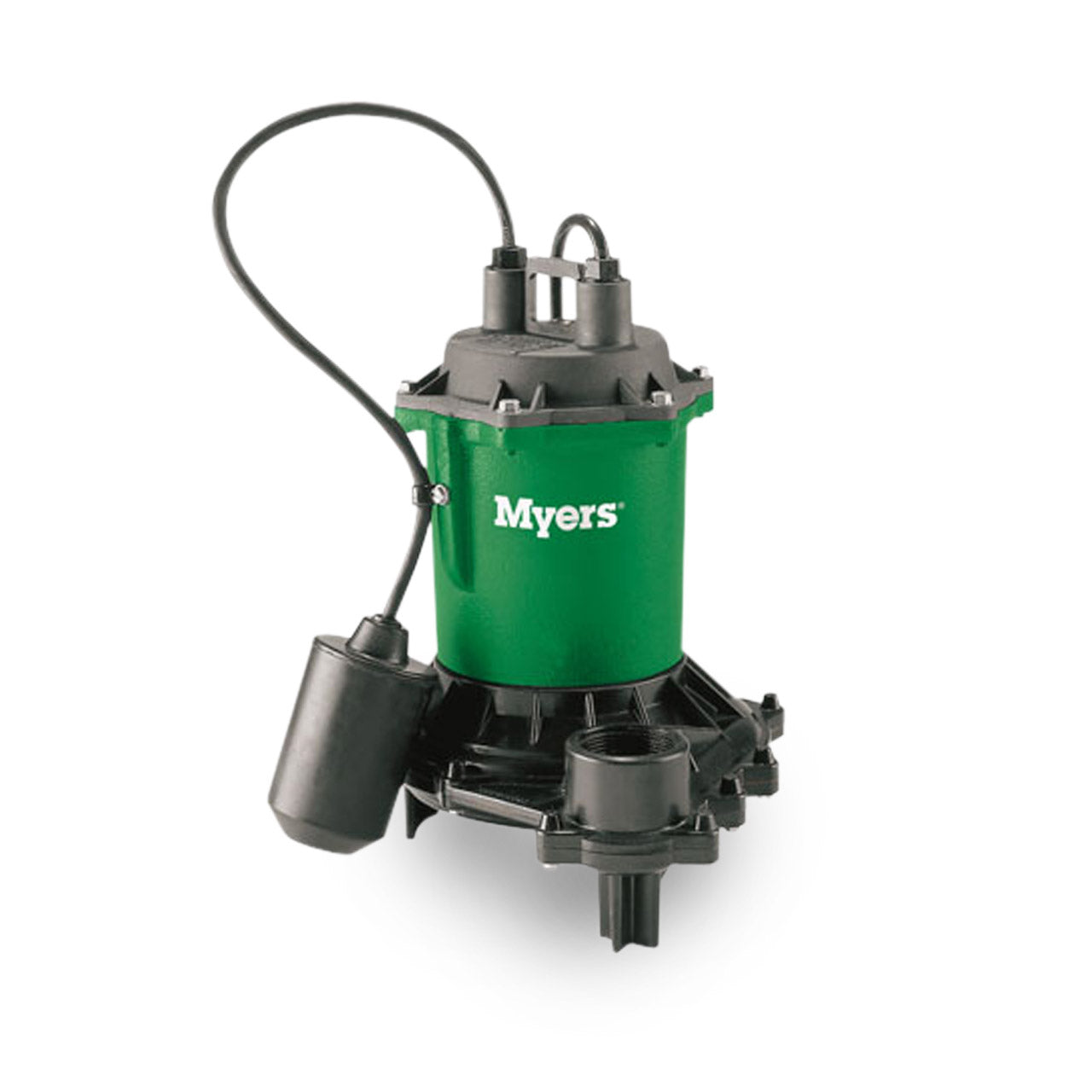

Myers ME40AG Submersible Agriculture Pump Description

The ME40AG Series Submersible Pumps are engineered specifically for agricultural cooling systems. Our modified design features and enclosed two-vane impeller to deliver optimal flow and head. To withstand harsh sump conditions, the pumps are constructed of the highest quality materials. An ME40AG pump will provide years of reliable service.

Myers ME40AG Submersible Agriculture Pump Typical Applications

• Agricultural Cooling Systems
• Sump Drainage
• Water Transfer

Myers ME40AG Submersible Agriculture Pump Features

• Efficient Dosing The Two-Vane Impeller Provides the Flow and Head Required for Demanding Dosing Systems and Sump Applications.
• Powerful Starts High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
• Rugged and Cool Rugged-Built, Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation.
• Water-Tight Fit Positive Sealing, Quick-Connect Float and Switch Cords Make Replacement Easy.
• Improved Sealing Long, Flexible Type 6 Seal Provides High-Pressure Sealing  with Improved Seal Face Protection by Location.
• Automatically Better Field-Tested, Wide-Angle, Mercury-Free Mechanical Float Switch Provides Maximum Drawdown (automatic models only)
• Dual Operation Automatic Float Switch or Manual Operation by Plugging Directly into Outlet.
• Thermal Overload Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature.
• Pump Protection Suction Screen included to Prevent Debris from Entering Pump.

Myers ME40AG-11 Submersible Agriculture Pump Specifications

• VOLTAGE: 1ø, 115V, 60 Hz
• HORSEPOWER: 0.4 HP
• AMP DRAW (full load): 8.0
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 1650
• MAXIMUM HEAD: 33'
• MAXIMUM CAPACITY: 72 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: 24” (61 cm)
• DISCHARGE PIPE SIZE: 1-1/2" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• IMPELLER TYPE: Engineered Thermoplastic, Enclosed
• CORD LENGTH: 20'
• CORD SIZE: 16-3; Type: SJTW
• BODY CONSTRUCTION: Cast Iron, Class 30, ASTM 48
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers ME40AG Submersible Agriculture Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers ME40AG Submersible Agriculture Pump Product Resources

Download Myers ME40AG Series Specification Data

Download Myers ME40AG Series Sales Sheet

Download Myers ME40AG Series Installation & Service Manual
