Discontinued: MYERS Effluent Pumps

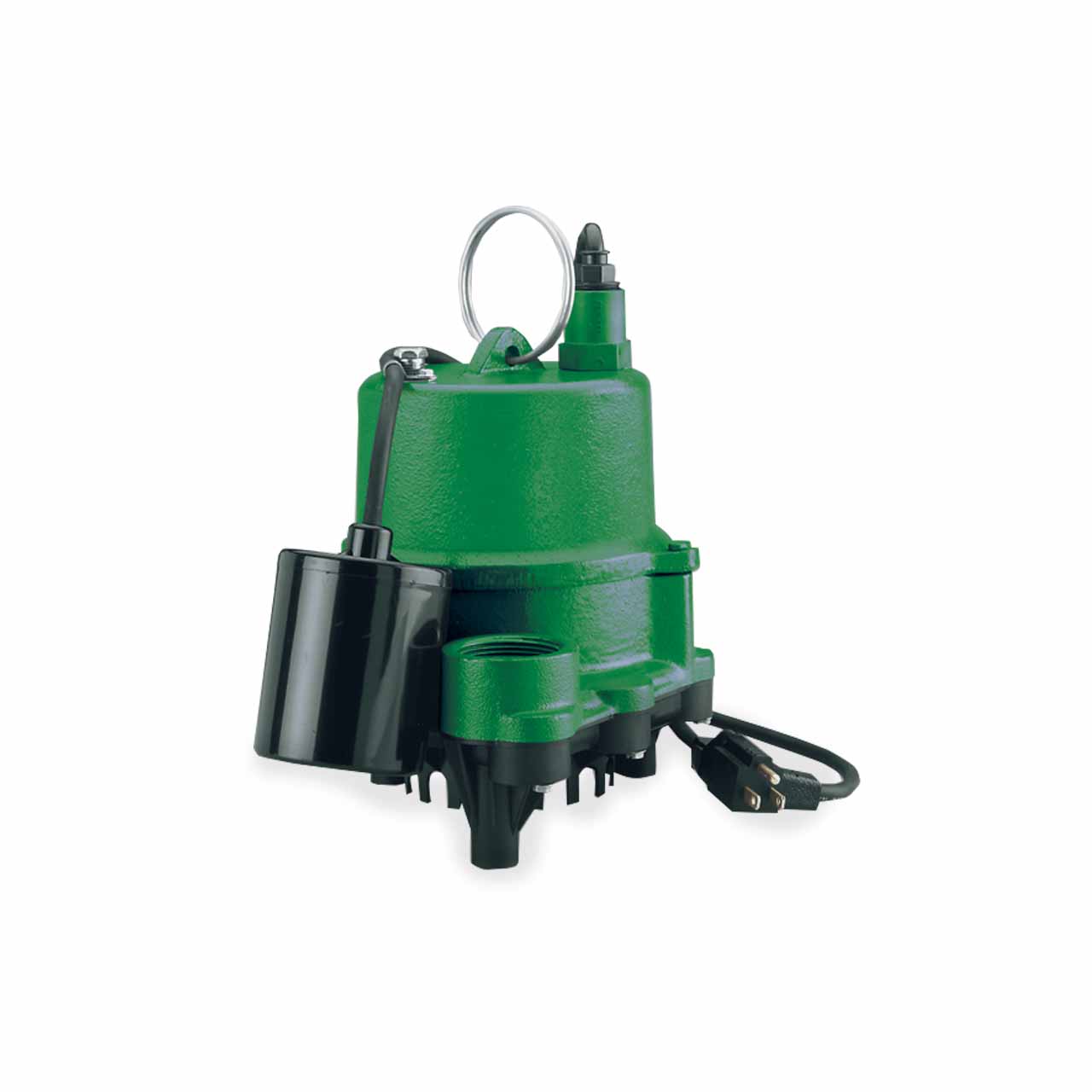

Myers ME4 Effluent Pump Description
The Myers ME4 Series Effluent Pumps are designed for home sumps. The units are equipped with a 3-prong grounding-type power cord. The shaded-pole motor is oil filled and sealed for cooler running. Upper sleeve/lower ball bearing on the motor shaft never needs lubrication.
Myers ME4 Effluent Pump Typical Applications
- Septic Tank Effluent Removal
- Sump Drainage
- Circulation
Myers ME4 Effluent Pump Features
- Construction – Heavy Duty Cast Iron Motor Housing and Upper Volute. Corrosion-Resistant Composite Base Ideal for Effluent Applications.
- Bearings and Mechanical Seal – Permanently Lubricated for Long Life.
- Cord Seal – Prevents Oil Loss From and Protection for Motor if Cord is Damaged.
- Overload Protection – Built-In Thermal Overload with Automatic Reset.
- Intake – Built-In Suction Screen.
Specifications
Specifications
Myers ME40120M Effluent Pump Specifications
- VOLTAGE: 1ø, 115V, 60 Hz
- HORSEPOWER: 0.4 HP
- AMP DRAW (full load): 12.5
- MOTOR TYPE: Oil-Filled Shaded Pole w/ Built-In Thermal Overload Protection
- RPM: 1550
- MAXIMUM HEAD: 32'
- MAXIMUM CAPACITY: 64 GPM
- SWITCH TYPE: Manual
- MINIMUM SUMP DIAMETER: Simplex 18" Duplex 30"
- DISCHARGE PIPE SIZE: 1-1/2" NPT
- MAXIMUM SOLIDS HANDLING SIZE: 3/4"
- IMPELLER TYPE: Thermoplastic Vortex
- CORD LENGTH: 20' Water Resistant
- CORD SIZE: 16-3; Type: SJTW-A/SJTW w/Integrally Grounded 3-Prong Plug
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 130°F (55C)
Myers ME4 Effluent Pump Performance Data
