Pump has never been used, however has an older manufacturer date. Minimum 30 Day Warranty from Day of Receipt.

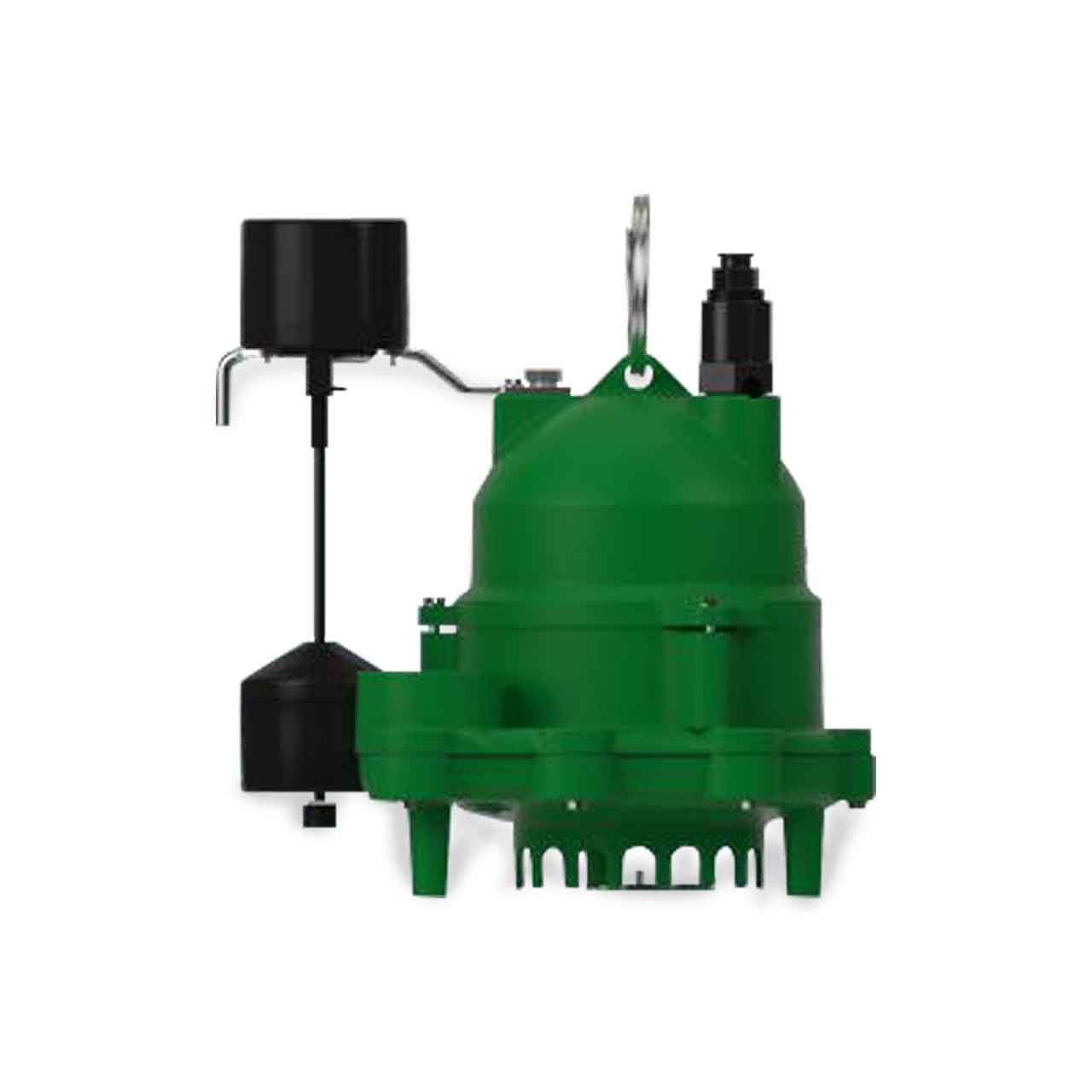

Myers MDC Series Cast Iron Sump Pump Description

The Myers MDC Series Cast Iron Sump/Light Effluent Pumps are designed to operate in a variety of installations. A unique combination of corrosion-resistant Materials make these pumps a great choice for extreme conditions. Pump intake screen, impeller, volute base, switch and power cord are serviceable. Available in 1/3 and 1/2 HP models.

Myers MDC Series Cast Iron Sump Pump Typical Applications

• Basement Sumps
• Dewatering
• Water Transfer
• Light Septic Tank Effluent

Myers MDC Series Cast Iron Sump Pump Features

• Solid and Reliable High-Endurance, Oil-Cooled Motor Provides Continuous Bearing Lubrication and Maximizes Heat Dissipation
• Eliminates Failures Shaded Pole Motor Eliminates Failure Prone Switches and Relays
• Motor Protection Long-Life Carbon/Ceramic Seal Protects Motor Against Water Leakage
• Thermal Overload Heat Sensor Overload Protection with Automatic Reset When Motor Cools to a Safe Operating Temperature
• Extended Service Lubricated Ball Bearings and Shaft Seal for Longer Service Life
• No Drilling Required Anti-Airlock Hole in Base Reduces Added Labor
• Piggyback Plug for Convenience Vertical and Tethered Switch Models Offer a Piggyback Plug for Automatic Operation

Myers MDC33VCI10 Series Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.33 HP
• AMP DRAW (full load): 9.8
• MOTOR TYPE: Shaded Pole with Thermal Overload Protection
• RPM: 1550
• MAXIMUM HEAD: up to 24' ft.
• MAXIMUM CAPACITY: up to 49 GPM
• SWITCH TYPE: Vertical w/ Piggyback Plug
• SWITCH 'ON' LEVEL: 6-1/2” (165 mm)
• SWITCH 'OFF' LEVEL: 3-1/2” (89 mm)
• MINIMUM SUMP DIAMETER: 10" (254 mm)
• DISCHARGE PIPE SIZE: 1.5" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 1/2"
• IMPELLER TYPE: Reinforced Thermoplastic, Semi Recessed Vortex
• CORD LENGTH: 10'
• CORD SIZE: 16/3; Type: SJTW, SJTW-A
• BODY CONSTRUCTION: Heavy Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 130°F (54C)

Myers MDC Series Cast Iron Sump Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MDC Series Cast Iron Sump Pump Product Resources

Download Myers MDC Series Brochure

Download Myers MDC Series Specification Sheet

Download Myers MDC Series Installation & Service Manual
