Discontinued - Myers

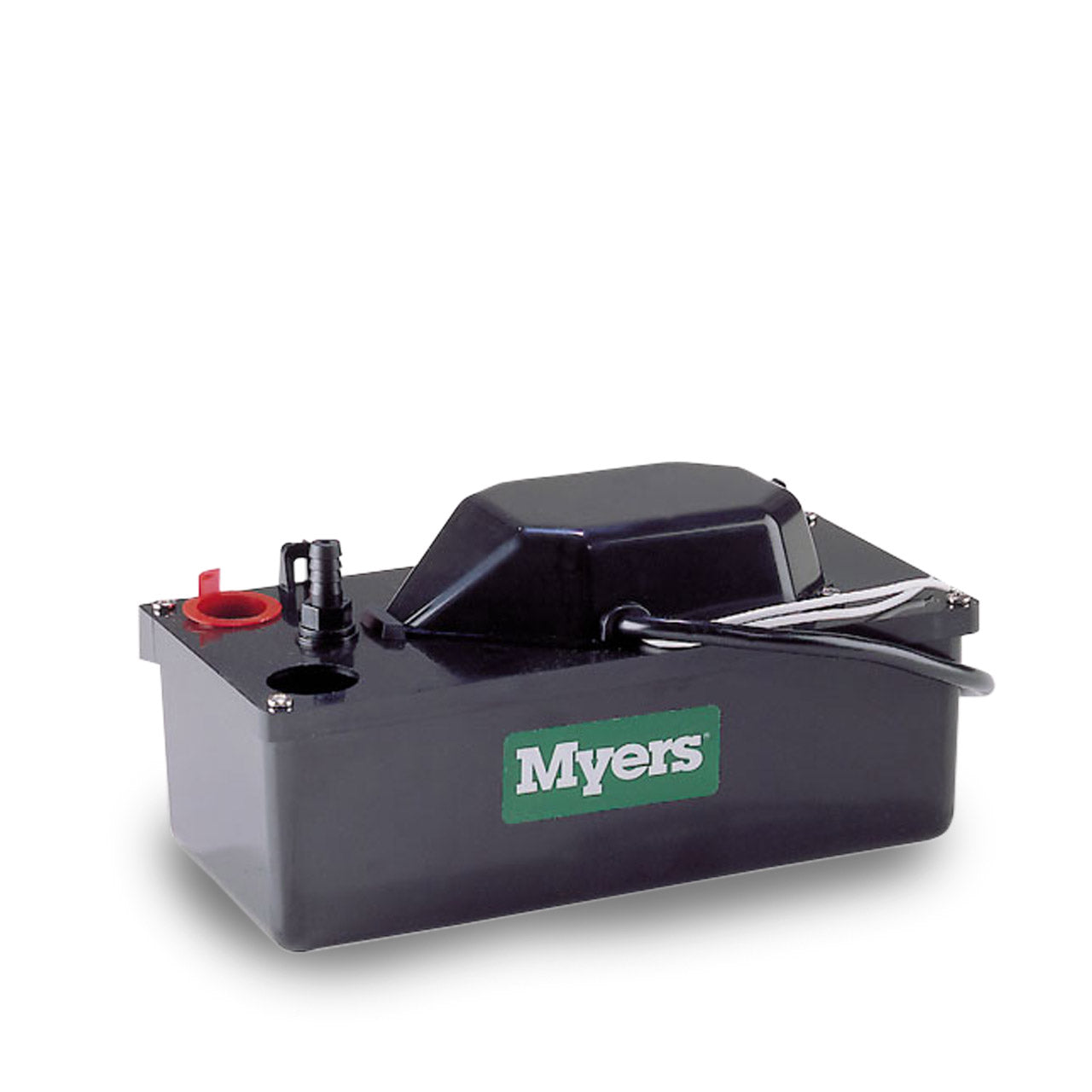

Myers MCU Condensate Unit Description

Ideal for the Automatic Removal of Excess Liquid Which Results From Condensation.

Myers MCU Condensate Unit Typical Application

• Air Conditioner
• Dehumidifier
• Ice Maker
• High-Efficiency Furnaces
• Refrigeration Systems
• Water Coolers

Myers MCU Condensate Unit Features

• Lifts up to 20' (MCU20S) / Lifts to 15' (MCU15/15S)
• Built-In Safety Switch
• Low-Profile Unit, Only 4-3/4" High
• Thermal Overload Protection
• High Temperature Housing
• Built-In Check Valve
• Double Insulated Enclosure
• Provides Longer Life than Similar Size Condensate Units
• Bearingless Sealed Motor Offers a More Reliable, Longer Life Product
• For Indoor Use Only

Myers MCU15S Condensate Unit Specifications

• BODY CONSTRUCTION: Thermoplastic
• MAXIMUM CAPACITY: up to 120 GPH
• FLOW AT 10' LIFT: 60 GPM
• MAXIMUM HEAD: 15'
• DISCHARGE PIPE SIZE: 3/8" i.d. Plastic Tubing
• POWER CORD: 6'
• AMP DRAW (full load): 1.45
• VOLTAGE: 115V AC, 60 Hz
• BASIN CAPACITY: 2 Qts
• MAX INTERMITTENT WATER TEMP: 190°F

Myers MCU Condensate Unit Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MCU Condensate Unit Product Resources

Download Myers MCU Specification Data

Download Myers MCU Installation & Service Manual
