Discontinued See Suggested Replacement: Myers MDC33M10 Sump Pump 0.33 HP 115V 10' Cord Manual

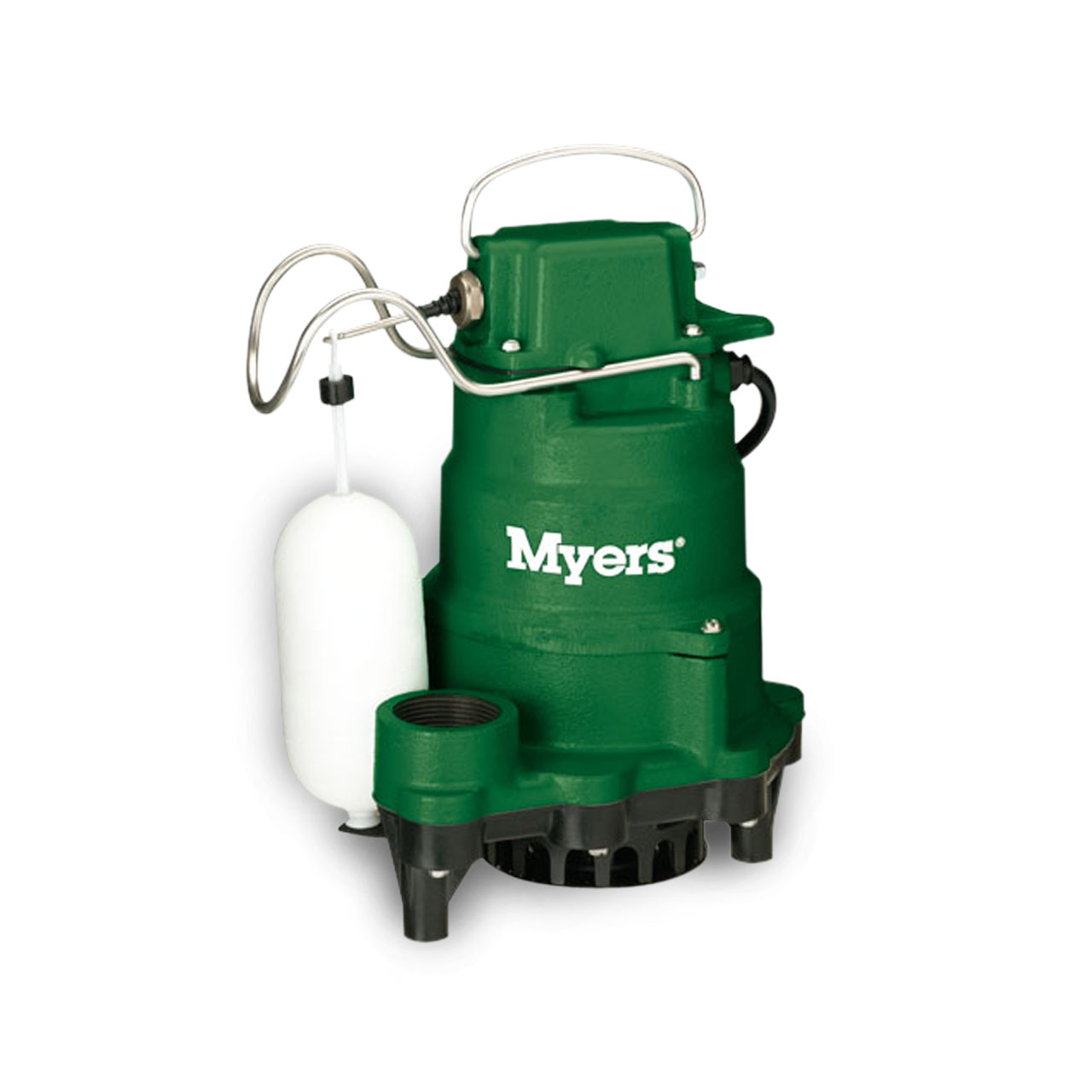

Myers MCI Cast Iron Sump Pump Description

The Myers MC1033 and MC1050 are rugged Cast Iron Sump Pumps featuring a vortex impeller that provides solids-handling capability up to 1/2". Product is available in 1/3 HP and 1/2 HP, 115 Volt single phase 60 Hz. Pump discharge is 1-1/2" NPT. 2-pole float switch for minimum 10" diameter sumps.

Myers MCI Cast Iron Sump Pump Typical Applications

• Basement Sumps
• Dewatering
• Water Transfer
• Light Septic Tank Effluent

Myers MCI Cast Iron Sump Pump Features

• Easy Fit 2-Pole Switch Design Allows for Operation in Sump Diameters of 10" or More
• Reliable and Tough Rugged, Oil-Cooled Motor Provides Continuous Bearing Lubrication and Maximizes Heat Dissipation.
• Extended Service Lubricated Ball Bearings and a Shaft Seal for Longer Service Life.
• Eliminates Failures Shaded Pole Motor Eliminates Failure-Prone Switches and Relays.
• Motor Protection Long-Life Carbon/Ceramic Seal Protects Motor Against Water Leakage.
• Thermal Overload Heat Sensor Overload Protection with Automatic Reset when Motor Cools to Safe Operating Temperature
• No-Drilling Required Anti-Airlock Hole in Base Reduces Added Labor
• Easy Serviceability Pump, Intake Screen Volute Base, Switch and Power Cord are Serviceable.

Myers MCI033M Cast Iron Sump Pump Specifications

• VOLTAGE: 1ø, 115V, 60 Hz
• HORSEPOWER: 0.33 HP
• AMP DRAW (full load): 9.8
• MOTOR TYPE: Shaded Pole with Thermal Overload Protection
• RPM: 1550
• MAXIMUM HEAD: up to 24' ft.
• MAXIMUM CAPACITY: up to 47 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: 10” (25.4 cm)
• DISCHARGE PIPE SIZE: 1.5"
• MAXIMUM SOLIDS HANDLING SIZE: 1/2"
• IMPELLER TYPE: Fiberglass-Reinforced Noryl® with Threaded Brass Insert
• CORD LENGTH: 30'
• CORD SIZE: 16/3; Type: SJTW-A, SJTW
• BODY CONSTRUCTION: Cast Iron with Fiberglass Reinforced Polypropylene Base
• MAXIMUM LIQUID TEMPERATURE: 130°F (54C)

Myers MCI Cast Iron Sump Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MCI Cast Iron Sump Pump Product Resources

Download Myers MCI Series Specification Data

Download Myers MCI Series Installation & Service Manual
