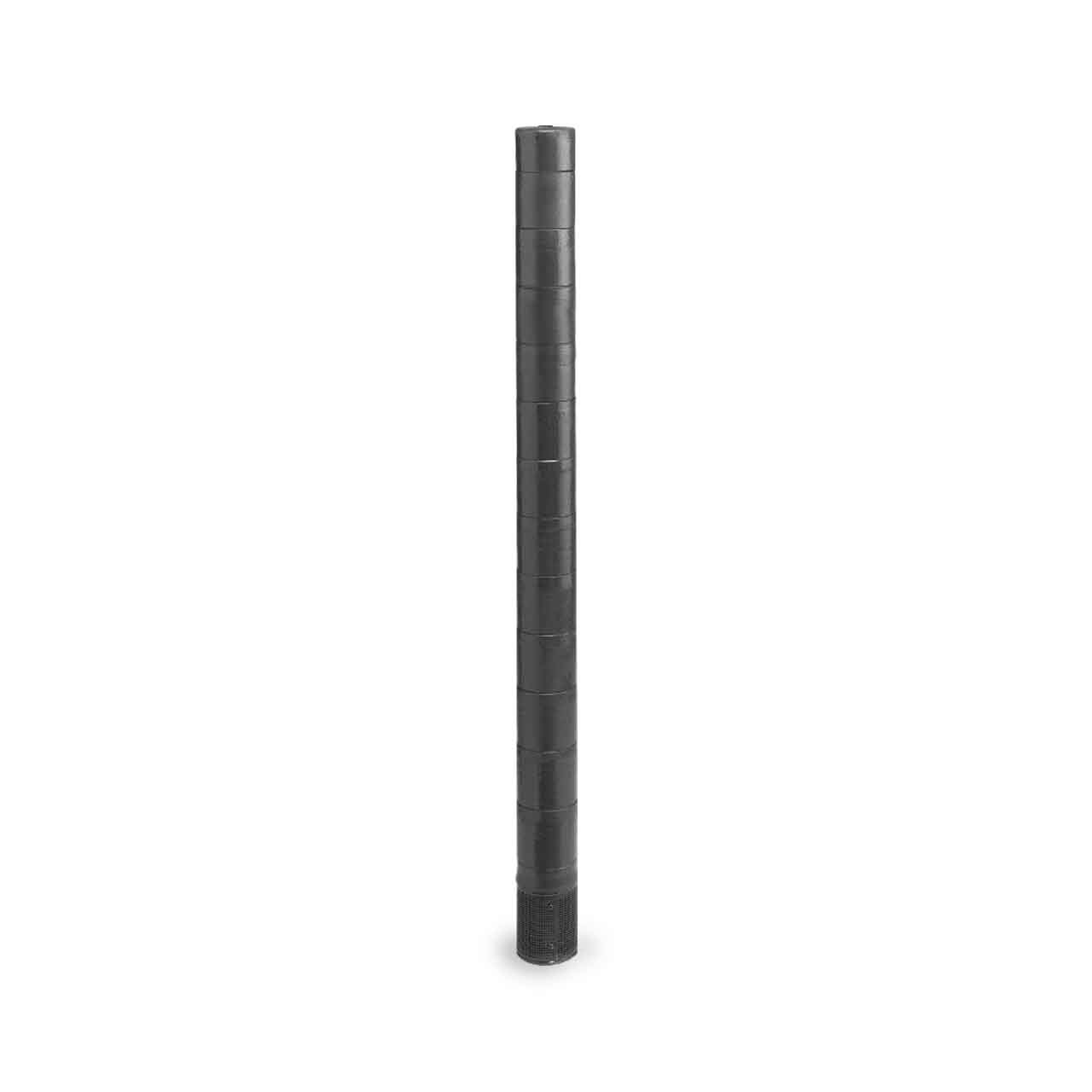

Myers M70-50 Ranger Series 4" Submersible Well Pump End 70 GPM 5.0 HP
Myers M70-50 Ranger Series 4" Submersible Well Pump End 70 GPM 5.0 HP
SKU : MYRM7050
In Stock Quantity:0
:
Brand
:
Regular price
$3,415.72 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Myers Ranger Series Pump End Description
The Ranger Series 70GPM Multi-Stage Cast Iron Submersible Pumps are precision-engineered, quality-built and maybe used in wells 4" or larger. Maximum outside diameter 3-7/8".
Myers Ranger Series Pump End Application
- Water Systems - Irrigation, Industrial, Commercial, Multiple Housing and Farm Clean Water Use.
Myers Ranger Series Pump End Features
- Discharge: Heavy-Duty Cast Iron Construction Provides Smooth Water Passage to Column Pipe. NPT Threads Standard.
- Pump Bowls: Highly Efficient Hydraulic Design...Threaded Bowl Design in Gray Cast Iron.
- Impellers: 20% Glass-Reinforced Noryl to Resist Abrasives and Provide Smooth Water Passage for Minimal Friction Loss.
- Upthrust Bearing: Nylatron Upthrust Bearing Provides Positive Momentary Upthrust Protection During Start-Up.
- Diffuser Bearing: Bearings at Each Stage Provide Radial Protection and Stability and Excellent Resistance to Sand Damage.
- Stainless Steel Pump Shaft: Stainless Steel Pump Shaft: 300 Grade "Treated" Stainless Steel Pump Shaft is Corrosion-Resistant. The Hex Shape Offers Generous Impeller Drive Surfaces.
- Intake Screen: Stainless Steel Material Offers Maximum Corrosion Resistance...Protects Against Damaging Solids Entering the Pump Assembly.
- Motor Bracket: Incorporates an Efficient Hydraulic Design for Maximum Volume and Access to Motor Mounting Nuts.
- Pump/Motor Coupling: Pressed-On, Sintered 300 Grade Stainless Steel for Maximum Corrosion Resistance Provides Trouble-Free Transfer of Power Between Motor and Pump Shaft.
Specifications
Specifications
Myers M70-50 Ranger Series Pump End Specifications
- DISCHARGE SIZE: 2.0” NPT
- NOMINAL FLOW RATING: 70 GPM
- HORSEPOWER: 5.0 HP
- MAXIMUM CAPACITY: up to 112 GPM
- MAXIMUM HEAD: up to 310'
- STAGES: 14
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Engineered Composite
- BODY MATERIAL: 300 Stainless Steel
Myers Ranger Series Pump End Curve
