Discontinued - Effluent

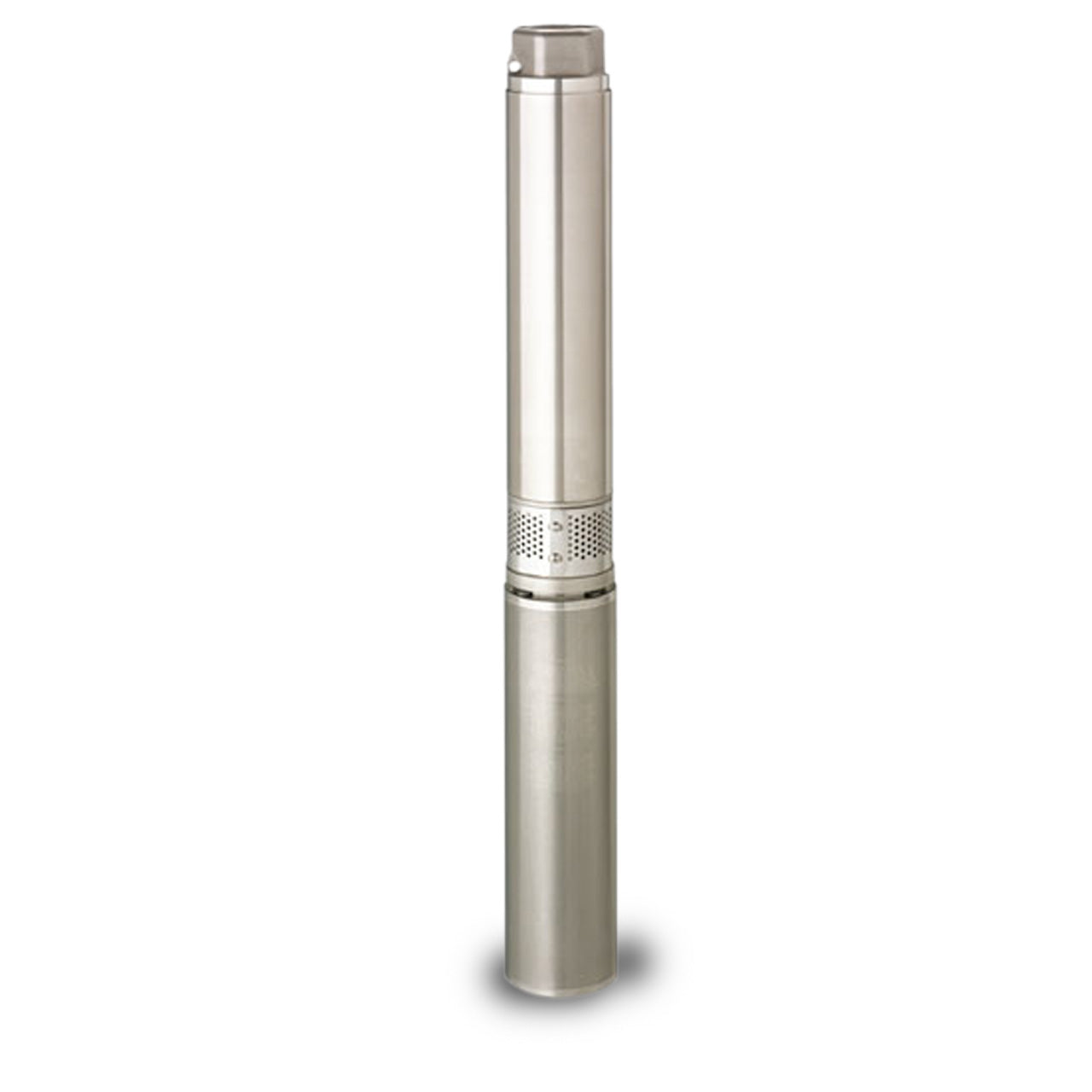

Myers J-BE High Head Effluent Pump Description

Myers J-BE Series High Head Effluent pump features a corrosion-resistant design for long life, cost-effective wastewater systems and built-in overload protection.

Myers J-BE High Head Effluent Pump Typical Applications

• STEP Effluent
• Drainfield and Mound Dosing
• Drip Disposal Dosing
• Treatment Dosing
• High Head Effluent Pumping
• Septic Tank Effluent

Myers J-BE High Head Effluent Pump Features

• High-Pressure Capacity
• Corrosion-Resistant Design for Long Life
• Stainless Steel Construction
• Built-In Overload Protection
• Hermetically Sealed Windings
• Continuous-Duty Rating
• Frequent Cycling Capabilities
• Powerful, Yet Lightweight
• Easy Handling and Installation

Myers J1525BE High Head Effluent Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 1.5 HP
• AMP DRAW (full load): 13.1
• RPM: 3450
• MAXIMUM HEAD: 280’
• MAXIMUM CAPACITY: 45 GPM
• DISCHARGE PIPE SIZE: 2.0"
• MAXIMUM SOLIDS HANDLING SIZE: 1/16"
• IMPELLER TYPE: Thermoplastic, Enclosed
• CORD LENGTH: 10'
• BODY CONSTRUCTION: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 122°F (68°C)
• DUTY RATING: Continuous

Myers J-BE High Head Effluent Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers 2NFL & J-BE Product Resources

Download Myers 2NFL & J-BE Specification Data

Download Myers 2NFL & J-BE Series Installation & Service Manual
