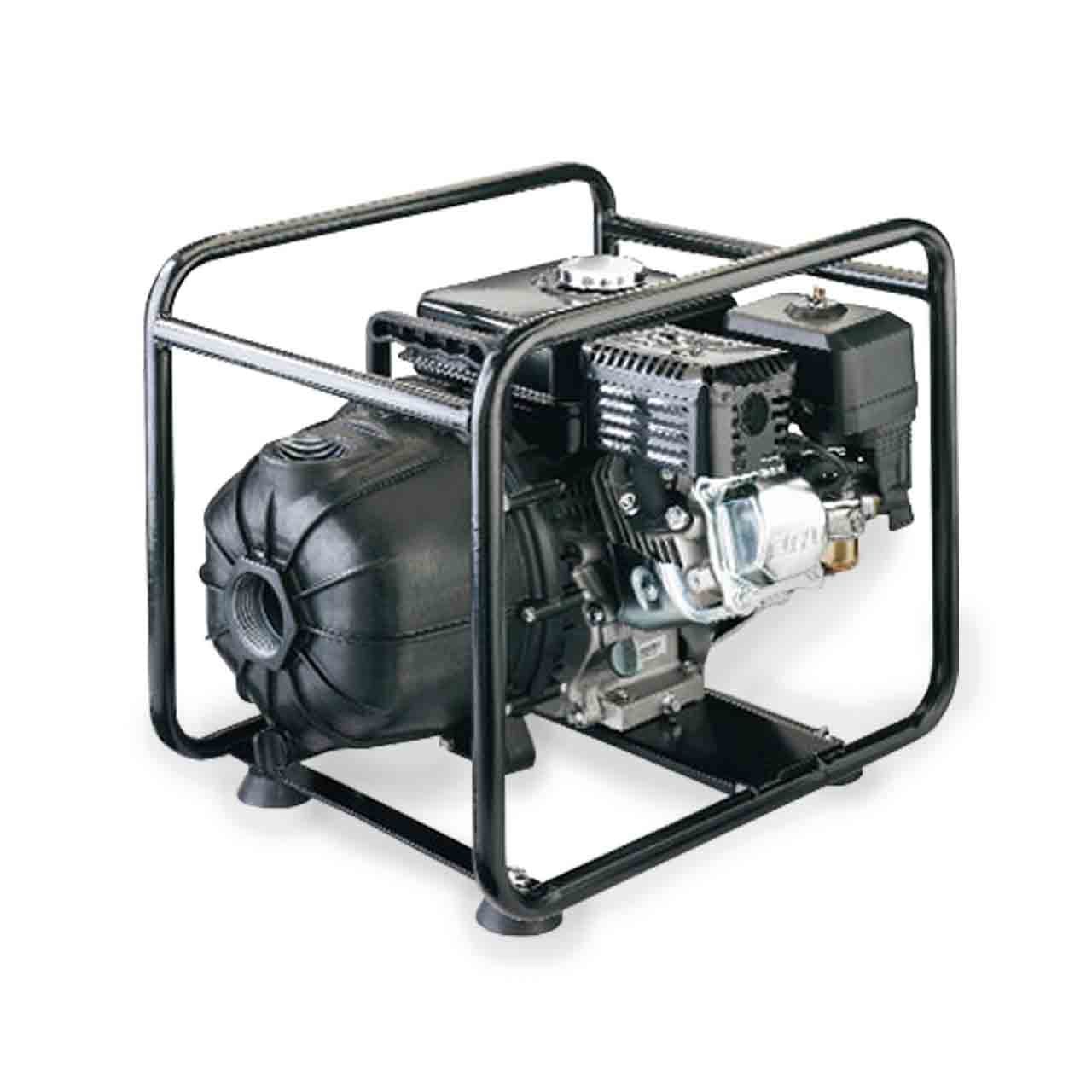

Myers EDP55RV Pro-Source Pumper Engine Driven Self-Priming Pump Description

Lightweight, corrosion resistant, engineered composite pump construction make this engine driven pump extremely versatile for applications where electrical power is not available.

Powered by a powerful 6-1/2 HP, PowerPro 4-cycle gasoline engine, rated for continuous-duty, equipped with professional-grade features like an automatic low-oil safety cut, manual throttle, choke and shut-off controls.

Securely mounted within a rugged steel framed roll cage, reinforced with steel cross-members, coated for corrosion resistance, equipped with noise dampening, non-slip rubber feet. Suction lift capability of 25 feet.

Myers EDP55RV Pro-Source Pumper Engine Driven Self-Priming Pump Typical Application

• Water Transfer and Supply Sprinkler Turf Irrigation
• Dewatering
• Fire Protection
• Agriculture, Light Commercial and Marine

Myers EDP55RV Pro-Source Pumper Engine Driven Self-Priming Pump Features

• Rugged Light-Weight Design
• Corrosion Resistant Composite Pump Construction
• Automatic Low-Oil Safety Cut, Manual Throttle, Choke and Shut-Off Controls
• Built-In Check Valve
• Securely Mounted within a Rugged Steel-Framed Roll Cage that's Coated for Corrosion Resistance
• Equipped with Noise-Dampening, Non-Slip Rubber Feet
• Chemical Resistant Viton Seals, O-Rings with Stainless Steel Fasteners
• Suction Lift Capability of 25'

Myers EDP55RV Pro-Source Pumper Engine Driven Self-Priming Pump Specifications

• HORSEPOWER: 6.5 HP
• MOTOR TYPE: 4-Cycle PowerPro Gasoline Engine
• MAXIMUM HEAD: up to 135' ft.
• MAXIMUM CAPACITY: up to 134 GPM
• DISCHARGE SIZE: 2.0" NPT
• SUCTION SIZE: 2.0" NPT
• IMPELLER TYPE: Polymer
• BODY CONSTRUCTION: Reinforced Corrosion Resistant Thermoplastic
• DUTY RATING: Continuous

Myers EDP55RV Pro-Source Pumper Engine Driven Self-Priming Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers EDP55RV Pro-Source Pumper Engine Driven Self-Priming Pump Product Resources

Download Myers EDP55RV Pro-Source Pumper Engine Driven Self-Priming Pump Specification Data

Download Myers EDP55RV Pro-Source Pumper Engine Driven Self-Priming Pump Installation & Service Manual
