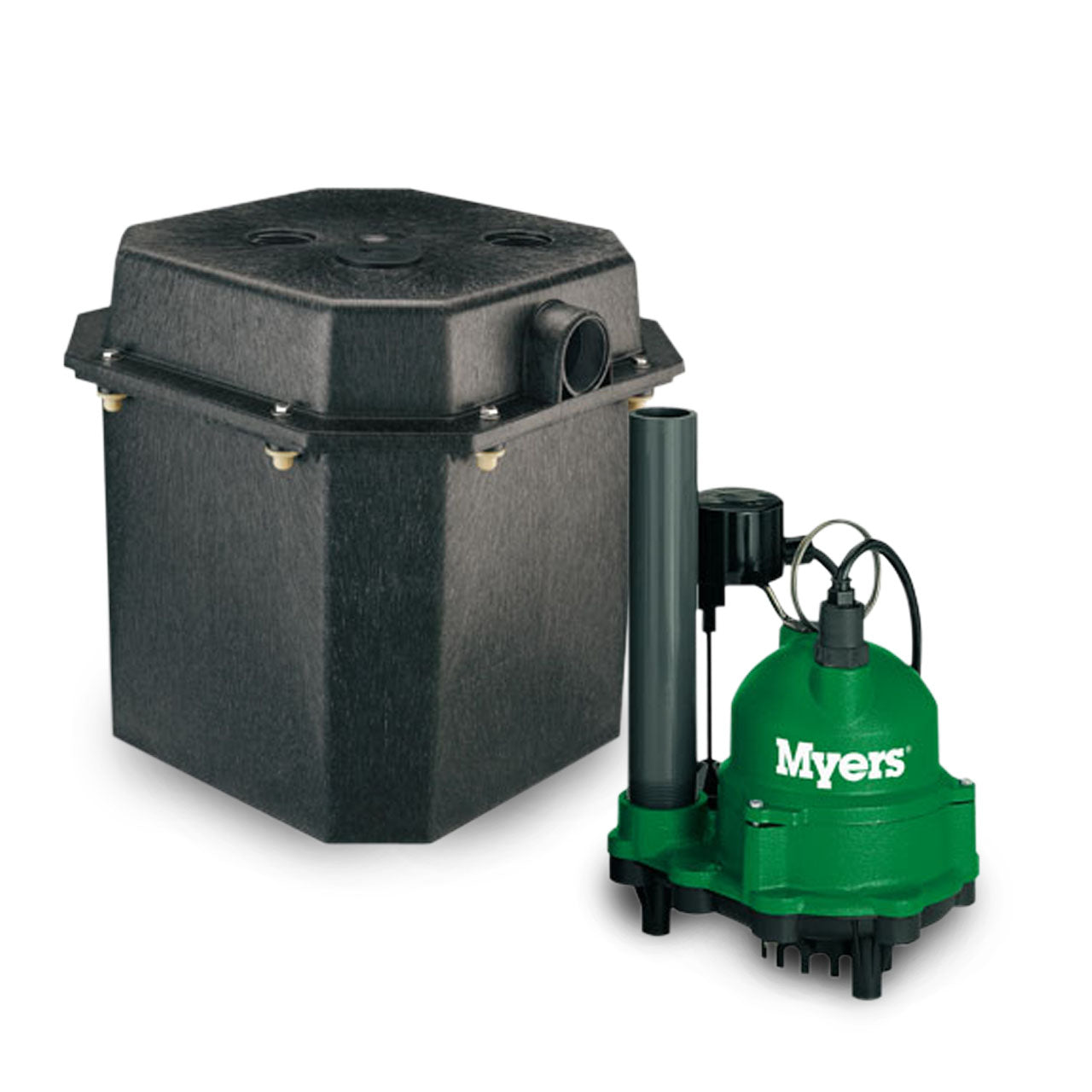

Myers ED33 Packaged Sump Pump System Description

The Myers ED33 Series Sink Pump System is a time- and money- saving solution. Fast, easy on-floor installation- no need to dig a sump pit. This pre-packaged sink pump system includes a heavy-duty cast iron pump and corrosion-resistant poly basin for years of extended service in a wide variety of applications.

Myers ED33 Packaged Sump Pump System Typical Applications

• Laundry Trays
• Wet Bars
• Beautician or Utility Sinks
• Air-Conditioning Units

Myers ED33 Packaged Sump Pump System Features

• On-Ground Installation - Without the Requirement of Digging a Sump Pit, the System Quickly Sets Up on any Solid Surface.
• Heavy-Duty Basin Design - Corrosion-Resistant, Heavy-Duty Poly Basin with Curved Edge Design for Increased Strength and Longer Service Life.
• High-Flow Discharge - 1-1/2" (38 mm) NPT Discharge
• Manual or Automatic - Automatic Vertical Switch with Piggy-Back Plug for Manual Operation.
• Years of Service - System Includes the Dependable and Tested MDC Series Pump.
• Industry Proven Design
• Oil-Cooled Motor for Continuous Lubrication and Heat Dissipation
• Long-Life Carbon/Ceramic Seal Protects Motor Against Water Leakage
• Internal Heat Sensor Provides Over-Load Protection and Automatic Reset
• Shaded Pole Motor Eliminates Failure-Prone Internal Relays and Switches
• Pump is Model MDC33V1
• Basin Dimensions are 15-1/16" W x 13-3/8" H (11-9/16" from Floor to Center of Inlet)

Myers MDC33V1 Packaged Sump Pump System Specifications

• VOLTAGE: 1ø, 115V, 60 Hz
• HORSEPOWER: 0.33HP
• AMP DRAW (full load): 9.8
• MOTOR TYPE: Shaded Pole w/Thermal Overload Protection
• RPM: 1550
• MAXIMUM HEAD: up to 24'
• MAXIMUM CAPACITY: up to 48 GPM
• SWITCH TYPE: Vertical w/Piggy-Back Plug
• SWITCH 'ON' LEVEL: 6-1/2” (165 mm)
• SWITCH 'OFF' LEVEL: 2” (50 mm)
• MINIMUM SUMP DIAMETER: 10” (254 mm)
• DISCHARGE PIPE SIZE: 1.5" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 0.5"
• CORD LENGTH: 10' Grounded SJTW, SJTW-A
• BODY CONSTRUCTION: Pump: Cast Iron & Thermoplastic/ Basin: Polyethylene
• MAXIMUM LIQUID TEMPERATURE: 130°F (54°C)

Myers ED33 Packaged Sump Pump System Performance Data
