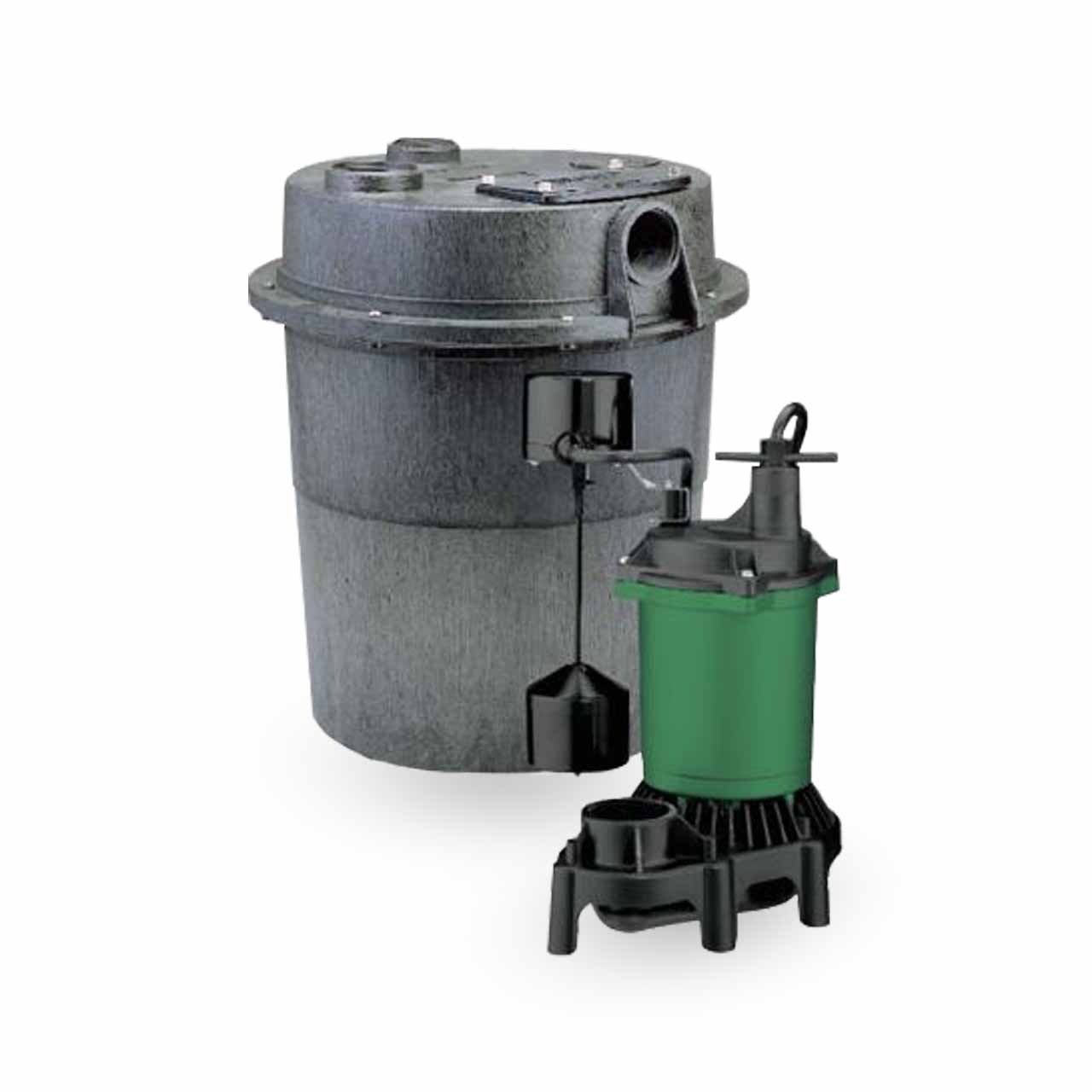

Myers ED-MS33PV10 Packaged Sink Sump Pump System Description

The Myers ED-MS33PV10 Series Sink Pump System is specially designed for many household jobs. Fast, easy on-floor installation no need to dig a sump pit. This under sink pump system is completely self-contained-pump is pre-piped and factory assembled. Components are corrosion-resistant cast iron and thermoplastic for years of extended service.

Myers ED-MS33PV10 Packaged Sink Sump Pump System Typical Applications

• Laundry Trays
• Washing Machines
• Wet Bars
• Water Softeners
• Dehumidifiers

Myers ED-MS33PV10 Packaged Sink Sump Pump System Features

• Specially Designed for Many Household Jobs
• Pumps Water from Laundry Trays, Washing Machines, Wet Bars, Water Softeners and Dehumidifiers
• High Capacity 1/3 HP Pump MS33PVIO
• Oil-Filled for Maximum Heat Dissipation and Constant Lubrication
• Thermal Overload Protection with Automatic Reset
• Fully Assembled
• Includes Discharge Pipe Inside Basin
• Installs Above Floor

Myers MS33PV10 Submersible Sump Pump Specifications

• VOLTAGE: 1ø, 115V, 60 Hz
• HORSEPOWER: 0.33 HP
• AMP DRAW (full load): 3.9
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450
• MAXIMUM HEAD: up to 24'
• MAXIMUM CAPACITY: up to 53 GPM
• SWITCH TYPE: Vertical
• SWITCH 'ON' LEVEL: 7-1/2” (191 mm)
• SWITCH 'OFF' LEVEL: 3” (76 mm)
• MINIMUM SUMP DIAMETER: 10” (254 mm)
• DISCHARGE PIPE SIZE: 1.5" NPT (38.1mm)
• MAXIMUM SOLIDS HANDLING SIZE: 3/16” (4.78 mm)
• CORD LENGTH: 10'
• BODY CONSTRUCTION: Pump: Zinc & Thermoplastic/ Basin: Polyethylene
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
• BASIN CAPACITY: 5 Gallons | 18.9 Liters

Myers MS33PV10 Packaged Sink Sump Pump System Performance Data
