Discontinued - Sump

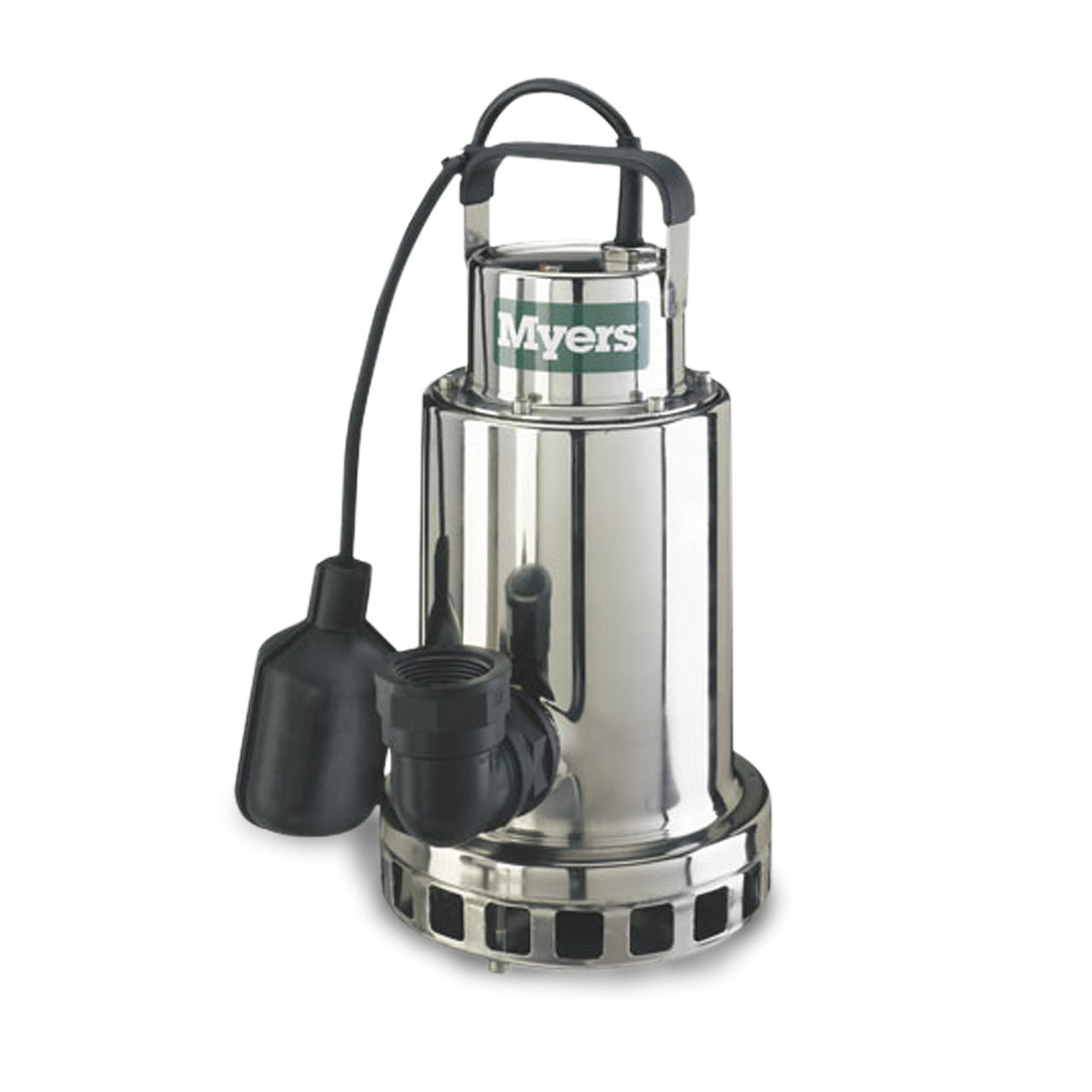

Myers DS Series Stainless Steel Sump Pump Description

The Myers DS series 1/3, 1/2, and 3/4 HP pumps are designed for basement sumps, but are also ideal for dewatering duties in a variety of applications. This versatile pump features stainless steel construction for extreme resistance to corrosive environments and will provide years of superior service.

• Used for dewatering from construction sites, ponds, pits, tanks and extracting water from foundations or flooded basements
• PSC motor with self lubricating ball-bearing construction
• Includes 1-1/4" NPT x 1-1/4" NPT 90° discharge elbow & 1-1/4" NPT x 1-1/2" NPT adapter

Myers DS Series Stainless Steel Sump Pump Typical Applications

• Basement Sumps
• Dewatering
• Water Transfer
• Light Septic Tank Effluent

Myers DS Series Stainless Steel Sump Pump Features

• Versatile Performer - Ideal for Dewatering in Construction Sites, Ponds, Pits, Tanks and Water Extraction from Foundations and Flooded Basements.
• Stainless Steel Tough - Stainless Steel Housing and Volute Case Resist Corrosion and Withstand the Harshest Conditions.
• Powerful Start-Ups - High-Torque, Permanent Split Capacitor (PSC) Motor; No Relays or Starting Switches to Wear Out.
• Runs Cooler - Rugged, Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation.
• Double-Protected Motor - Long-Life Carbon/Ceramic Seal and Additional Lip Seal Protect Motor Against Water Leakage.
• Extended Service - Fully Lubricated Bearings and Shaft Seal for Longer Service Life.
• Smooth Operation - Impeller is Designed for Clog Resistance and Effectively Handles Solids up to 3/4" in Diameter.

Myers DS75P1 Stainless Steel Sump Pump Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.75 HP
• AMP DRAW (full load): 6.4
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450
• MAXIMUM HEAD: up to 25' ft.
• MAXIMUM CAPACITY: up to 45 GPM
• SWITCH TYPE: Tethered Float w/ Piggyback Plug
• SWITCH 'ON' LEVEL: 13.5" (342.9 mm)
• SWITCH 'OFF' LEVEL: 6.75" (171.5 mm)
• MINIMUM SUMP DIAMETER: 12"
• DISCHARGE PIPE SIZE: 1¼"
• MAXIMUM SOLIDS HANDLING SIZE: ¾"
• CORD LENGTH: 15' Type SJTW
• CORD SIZE: 18/3
• BODY CONSTRUCTION: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 104°F (40C)
• DUTY RATING: Continuous

Myers DS Series Stainless Steel Sump Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers DS Series Stainless Steel Sump Pump Product Resources

Download Myers DS Series Specification Data

Download Myers DS Series Installation & Service Manual
