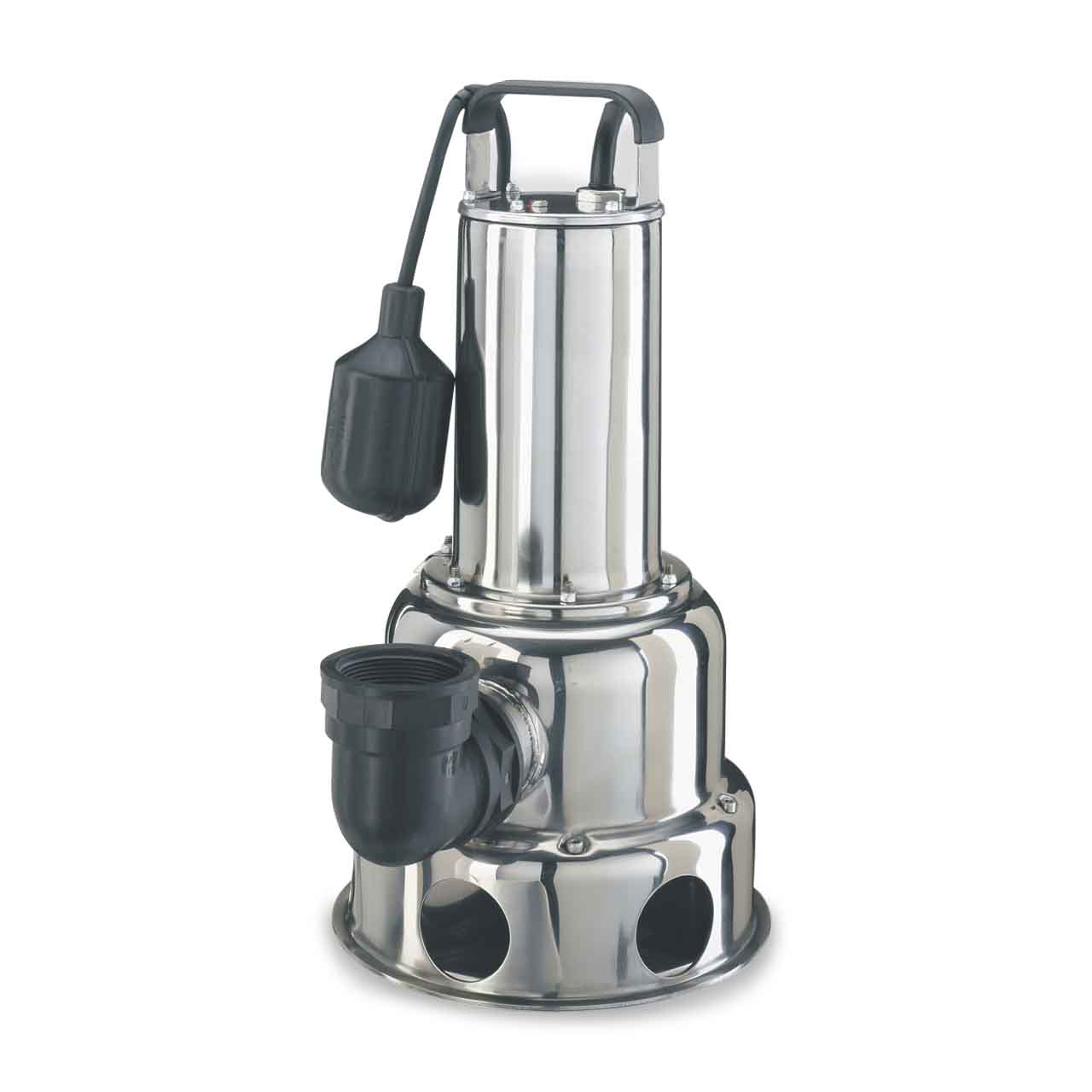

Myers DE50PC1 Stainless Steel Effluent Pump 0.5 HP 115V 1 PH 20' Cord

Myers DE50PC1 Stainless Steel Effluent Pump 0.5 HP 115V 1 PH 20' Cord

Usually ships within 2 weeks

SKU : MYRDE50PC1

In Stock Quantity:0

:
Brand : Myers
Shipping calculated at checkout.

Description


Myers DE Series Effluent Pump Description

The Myers DE Series Stainless Steel Submersible Effluent Pump is used for effluent, sewage, wastewater removal and sump drainage in residential sewage systems. In commercial and industrial systems used for liquid transfer, circulation, dewatering and flood control. These pumps are entirely constructed of stainless steel, including self-cleaning cast stainless steel impeller. Oil chamber provides seal protection. NBR 70 rubber lip seal with special sand guard V-ring for sand handling. 2" discharge elbow inlcuded.

Myers DE Series Effluent Pump Typical Applications

  • Effluent Removal
  • Trench and Mount Pressure Dose Systems
  • Sump Drainage
  • Water Transfer
  • Flood Control

Myers DE Series Effluent Pump Features

  • Stainless Steel Housing and Volute Case Resist Corrosion and Withstand the Harshest Conditions and will Provide Years of Service
  • High-Torque, Permanent Split Capacitor (PSC) Motor; No Relays or Starting Switches to Wear Out
  • Rugged, Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation
  • Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature
  • Double-Lip Seal with Ceramic Wear Surface Adds Extra Protection Against Leaks
  • Fully Lubricated Bearings and Shaft Seal for Longer Service Life
  • Impeller is Designed for Self-Cleaning and Effectively Handles Solids up to 1-1/2” in Diameter
  • Includes 90° Discharge Elbow
  • Tethered Float Switch

Specifications

Myers DE50PC1 Series Effluent Pump Specifications

  • VOLTAGE: 1ø, 115V, 60 Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 12.0
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • MAXIMUM HEAD: 36'
  • MAXIMUM CAPACITY: 97 GPM
  • SWITCH TYPE: Tethered Float w/Piggyback Plug
  • MINIMUM SUMP DIAMETER: Simplex 18" Duplex 24"
  • DISCHARGE PIPE SIZE: 2.0" NPT
  • MAXIMUM SOLIDS HANDLING SIZE: 3/4"
  • IMPELLER TYPE: Stainless Steel, Open Multi-Vane
  • CORD LENGTH: 20' Type: SJOW
  • BODY CONSTRUCTION: Stainless Steel
  • MAXIMUM LIQUID TEMPERATURE: 130°F (54°C)
  • DUTY RATING: Continuous

Myers DE Series Effluent Pump Performance Data


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers DE Series Effluent Pump Product Resources


Download Myers DE Series Specification Data

Download Myers DE Series Installation & Service Manual
