Myers CMV-BP-SA1 Packaged Sewage System 0.5 HP 115V 20' Cord
Myers CMV-BP-SA1 Packaged Sewage System 0.5 HP 115V 20' Cord
SKU : MYRCMVBPSA1
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
ITEM NO LONGER AVAILABLE

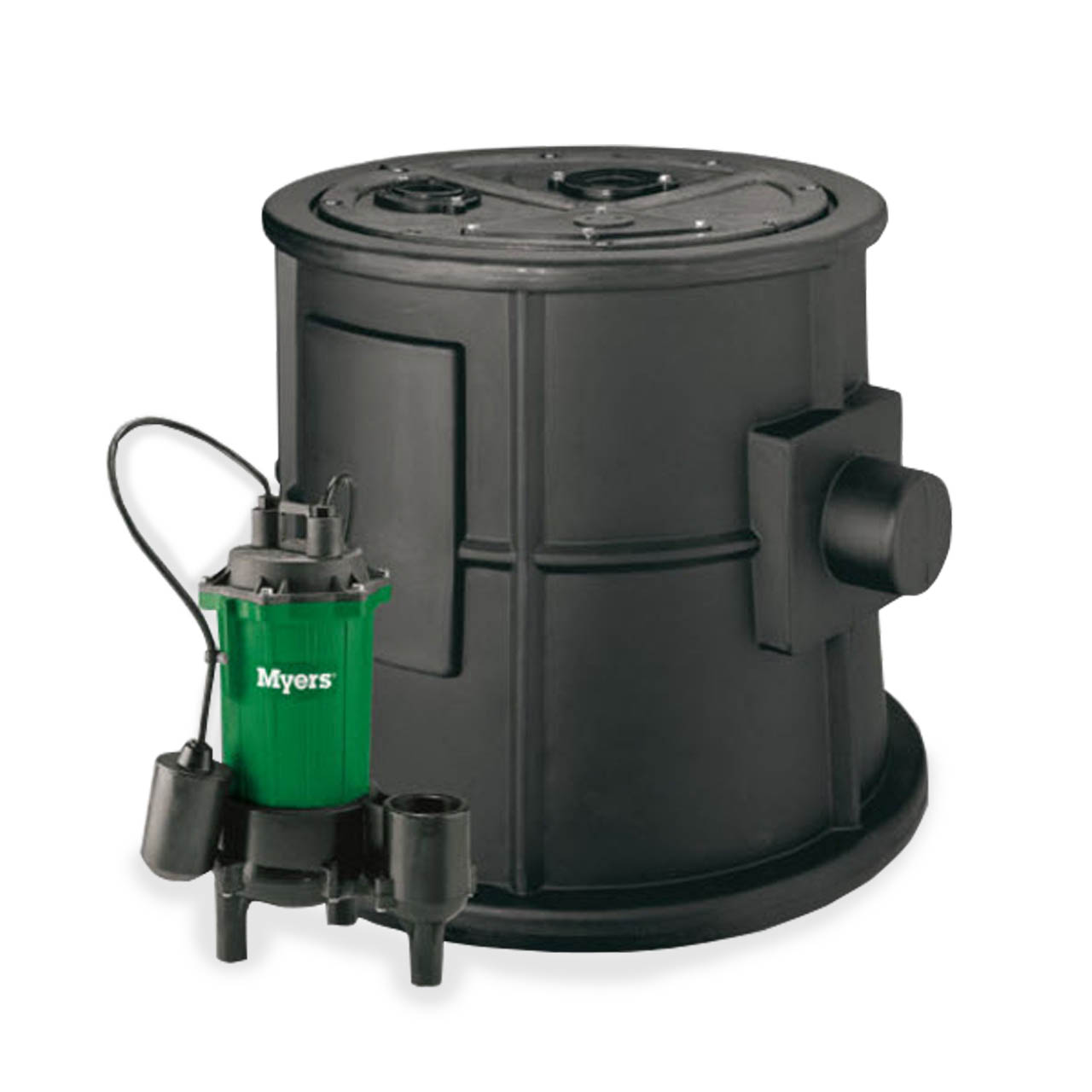

Myers CMV-BP Sewage Basin Pro Package Description
The Myers CMV-BP BasinPro Packaged Sewage System is an ideal choice for new construction or retrofit. Installer-friendly features include a 360° Top Grip for easy installation. The E-Z Switch Rod lets you easily remove the float switch without affecting the basin lid, pump or plumbing. Available with a 1/2 HP high endurance motor, with 2” solids-handling capacity. Passive radon protection provided by gas-tight seal between structural foam lid and basin.
Myers CMV-BP Typical Applications
- Sewage
- High-Capacity Sump
- Effluent
Myers CMV-BP Features
- CMV5 Pump is pre-installed in basin, with integral torque stops to ensure stability
- Oil-filled motor for maximum heat dissipation and continuous bearing lubrication
- Recessed vortex impeller provides minimal radial loading for long bearing life
- Engineered for many years of maintenance-free operation
- Wide-angle, mercury-free mechanical float switch for maximum drawdown
- Recessed vortex impeller operates completely out of volute and provides free flow through passage for solids and liquids
- Durable motor will deliver many years of reliable service
- Available with alarm
Specifications
Specifications
Myers CMV5A Sewage Pump Specifications
- BODY CONSTRUCTION: Pump: Cast Iron and Thermoplastic / Basin: Structural Foam
- HORSEPOWER: 0.5 HP
- RPM: 1625
- MAXIMUM HEAD: up to 18'
- MAXIMUM CAPACITY: up to 100 GPM
- FLOW AT 10' LIFT: 60 GPM
- SWITCH TYPE: Tethered
- DISCHARGE PIPE SIZE: 2.0" NPT
- MAXIMUM SOLIDS HANDLING SIZE: 2.0"
- CORD LENGTH: 20'
- AMP DRAW (full load): 12.0
- VOLTAGE: 1ø, 115V, 60 Hz
- MAXIMUM LIQUID TEMPERATURE: 140°F
- IMPELLER: Recessed, Thermoplastic
Myers CMV5A Performance Data
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers CMV-BP Product Resources
Download Myers CMV-BP Specification Data
