Myers CMEP(SL)-21DW NEMA 4X Duplex Outdoor Control Panel 230V 1PH

Myers CMEP(SL)-21DW NEMA 4X Duplex Outdoor Control Panel 230V 1PH


Discontinued or no longer available.

SKU : MYRCMEPSL21DW

In Stock Quantity:0

:
Brand : Myers
Shipping calculated at checkout.

Description


Discontinued - Duplex Panels

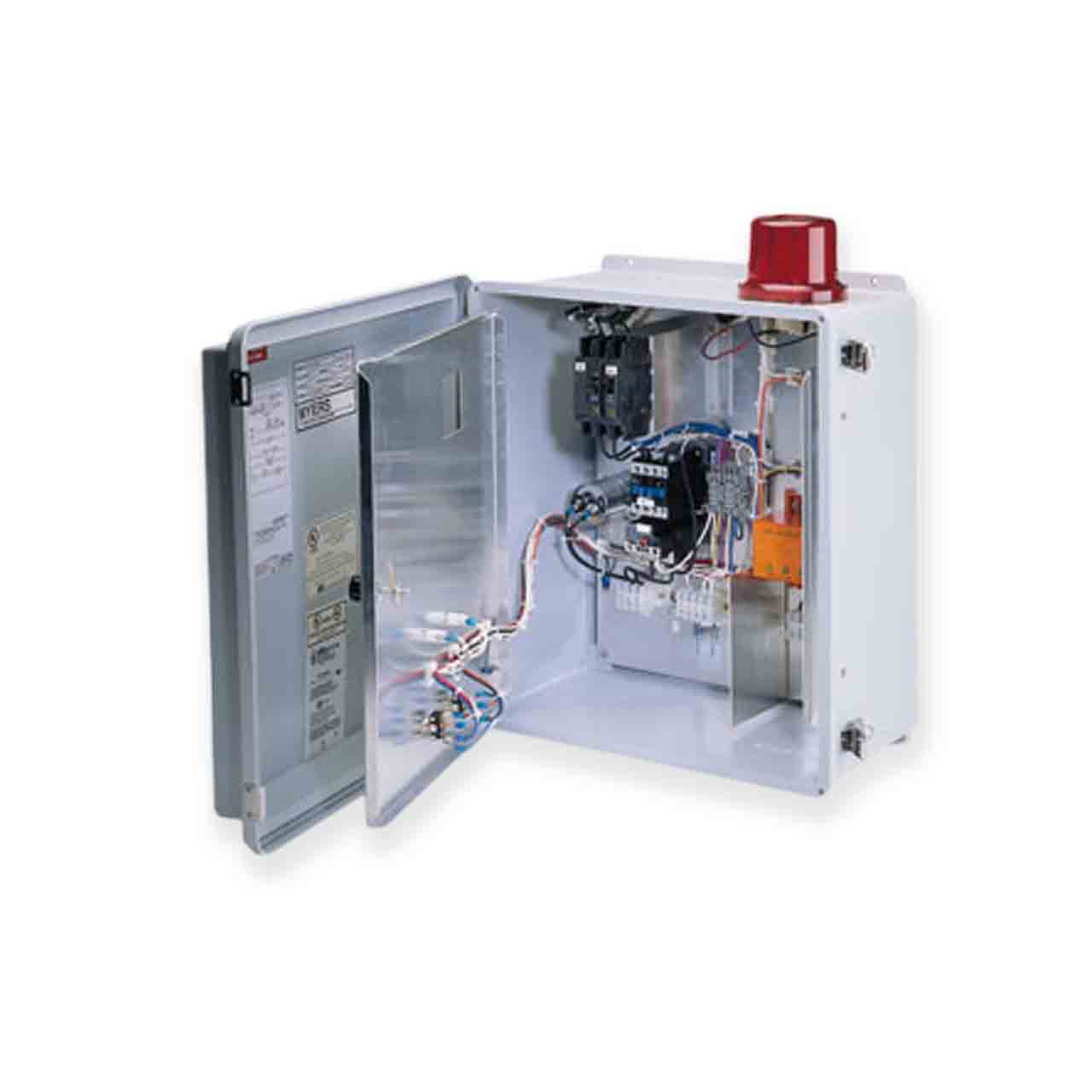

Myers CMEP(SL)-21DW NEMA 4X Duplex Outdoor Control Panel

Myers has Re-Engineered the Control Panel Line for Improved Durability, Reliability and Economy. CAD Flexibility Enhances our Response Time to Help us Better Meet your Control Panel Requirements.


    Myers CMEP(SL)-21DW NEMA 4X Duplex Outdoor Control Panel Features

    • Quality Electrical Components Assure Reliable, Automatic Pump Operation
      • IEC Horsepower-Rated Contactor (Single Phase) and Motor Starters (Three Phase) Rated at Over 1 Million Cycles.
      • Three Phase Starters with Ambient-Compensated Quick-Trip Overloads for Maximum Motor Protection.
      • Designed for use With Three Standard Mercury Float Switches, Off-On-Lag-Alarm. (Not Included With Panel, Please Order Separately.)
    • Corrosion Resistance for Long Life
      • Outdoor Panels of Weathertight NEMA 4X Fiberglass with Aluminum Back Panel.
      • Indoor Panels of Enamel-Coated Galvanized Steel.
    • Meets NFC and UL Standards for Safety
      • UL Approved Panel Designs.
      • 100VA Control Circuit Transformer With Primary Fusing on 3-Phase Panels.
      • Main Circuit Breaker.

    Myers CMEP(SL)-21DW NEMA 4X Duplex Outdoor Control Panel Standard Features

    • Corrosion-Resistant Enclosure: Nema 4X Fiberglass (outdoor)
    • Aluminum Back Panel for Nema 4X Only
    • IEC Contractor: Silver Cadmium Oxide Contacts
    • IEC Motor Starter: 3-Pole Bi-Metal Overload Relay
    • 150VA Control Circuit Transformer: Primary Fusing on 3ø
    • Main Circuit Breaker
    • Control Circuit Fuse: 1 Amp
    • Alarm Circuit Fuse: 1 Amp
    • Hand-Off-Auto Switch: Momentary In-Hand Position
    • Alarm Test Switch
    • Amber Pump Run Light
    • Red Seal Leak Light: Used with Double Seal Pumps Only
    • Terminal Blocks: For Pump and Float Connections
    • Ground Lug
    • Alarm Light: Nameplate Mounted Through Enclosure Front (Nema 4X)
    • Override Relay (Duplex Only): In Event of First Pump Failure
    • Alternate Relay (Duplex Only): Solid State

    Specifications

    Myers CMEP(SL)-21DW NEMA 4X Duplex Outdoor Control Panel Specifications

    • ENCLOSURE: Nema 4X
    • HORSEPOWER: 0.33 to 3.0HP
    • VOLTS/PHASE: 230V/1ø
    • FULL LOAD AMPS: <15 to 30FLA

    NOTE: For Double Seal Pumps with Seal Leak Sensor, has Seal Leak Light.

    Myers CMEP(SL)-21DW NEMA 4X Duplex Outdoor Control Panel

    • MYRCMEPSL21DW3315: 0.33 to 1.5HP / <15FLA
    • MYRCMEPSL21DW1520: 1.5 to 2.0HP / 10 to 20FLA
    • MYRCMEPSL21DW2030: 2.0 to 3.0HP / 15 to 30FLA

    WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Resources

    Myers Duplex Control Panel Product Resources


    Download Myers CMEP(SL)-21DW Series Catalog Brochure
