Myers CE-21S NEMA 1 Simplex Indoor Control Panel 230V 1PH
Myers CE-21S NEMA 1 Simplex Indoor Control Panel 230V 1PH
SKU : MYRCE21S
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Duplex Panels

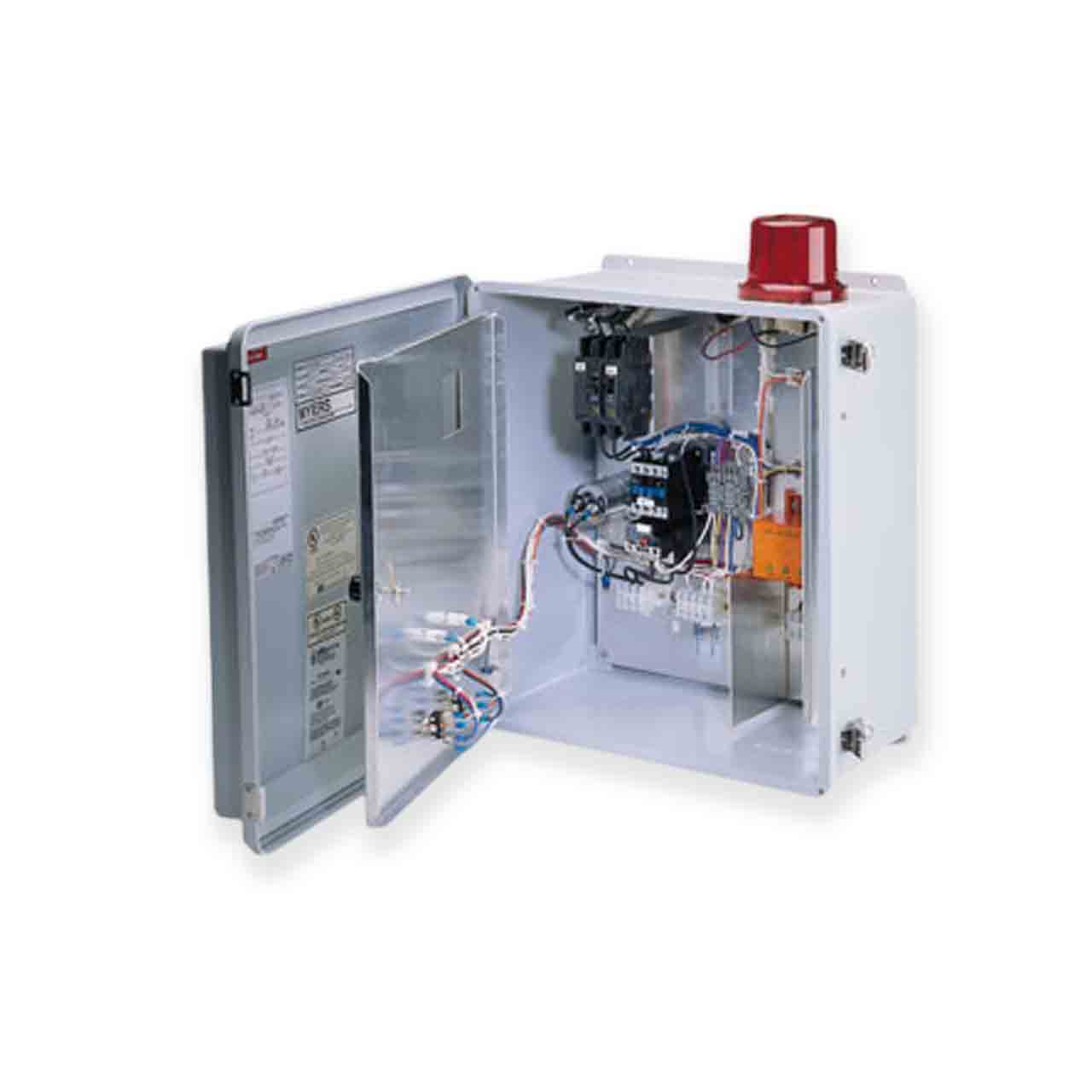

Myers CE-21S NEMA 1 Simplex Indoor Control Panel
Myers has Re-Engineered the Control Panel Line for Improved Durability, Reliability and Economy. CAD Flexibility Enhances our Response Time to Help us Better Meet your Control Panel Requirements.
Myers CE-21S NEMA 1 Simplex Indoor Control Panel Features
- Quality Electrical Components Assure Reliable, Automatic Pump Operation
- IEC Horsepower-Rated Contactor (Single Phase) and Motor Starters (Three Phase) Rated at Over 1 Million Cycles.
- Three Phase Starters with Ambient-Compensated Quick-Trip Overloads for Maximum Motor Protection.
- Designed for use With Three Standard Mercury Float Switches, Off-On-Lag-Alarm. (Not Included With Panel, Please Order Separately.)
- Corrosion Resistance for Long Life
- Outdoor Panels of Weathertight NEMA 4X Fiberglass with Aluminum Back Panel.
- Indoor Panels of Enamel-Coated Galvanized Steel.
- Meets NFC and UL Standards for Safety
- UL Approved Panel Designs.
- 100VA Control Circuit Transformer With Primary Fusing on 3-Phase Panels.
- Main Circuit Breaker.
Myers CE-21S NEMA 1 Simplex Indoor Control Panel Standard Features
- Corrosion-Resistant Enclosure: Nema 1 Steel (indoor)
- IEC Contractor: Silver Cadmium Oxide Contacts
- IEC Motor Starter: 3-Pole Bi-Metal Overload Relay
- 150VA Control Circuit Transformer: Primary Fusing on 3ø
- Main Circuit Breaker
- Control Circuit Fuse: 1 Amp
- Alarm Circuit Fuse: 1 Amp
- Hand-Off-Auto Switch: Momentary In-Hand Position
- Alarm Test Switch
- Amber Pump Run Light
- Terminal Blocks: For Pump and Float Connections
- Ground Lug
- Alarm Buzzer: 86 db at 10 ft. (Nema 1)
Specifications
Specifications
Myers CE-21S NEMA 1 Simplex Indoor Control Panel Specifications
- ENCLOSURE: Nema 1
- HORSEPOWER: 0.5 to 3.0HP
- VOLTS/PHASE: 230V/1ø
- FULL LOAD AMPS: <15 to 30FLA
Myers CE-21S NEMA 1 Simplex Indoor Control Panel
- MYRCE21S0515: 0.5 to 1.5HP / <15FLA
- MYRCE21S1520: 1.5 to 2.0HP / 10 to 20FLA
- MYRCE21S2030: 2.0 to 3.0HP / 15 to 30FLA
