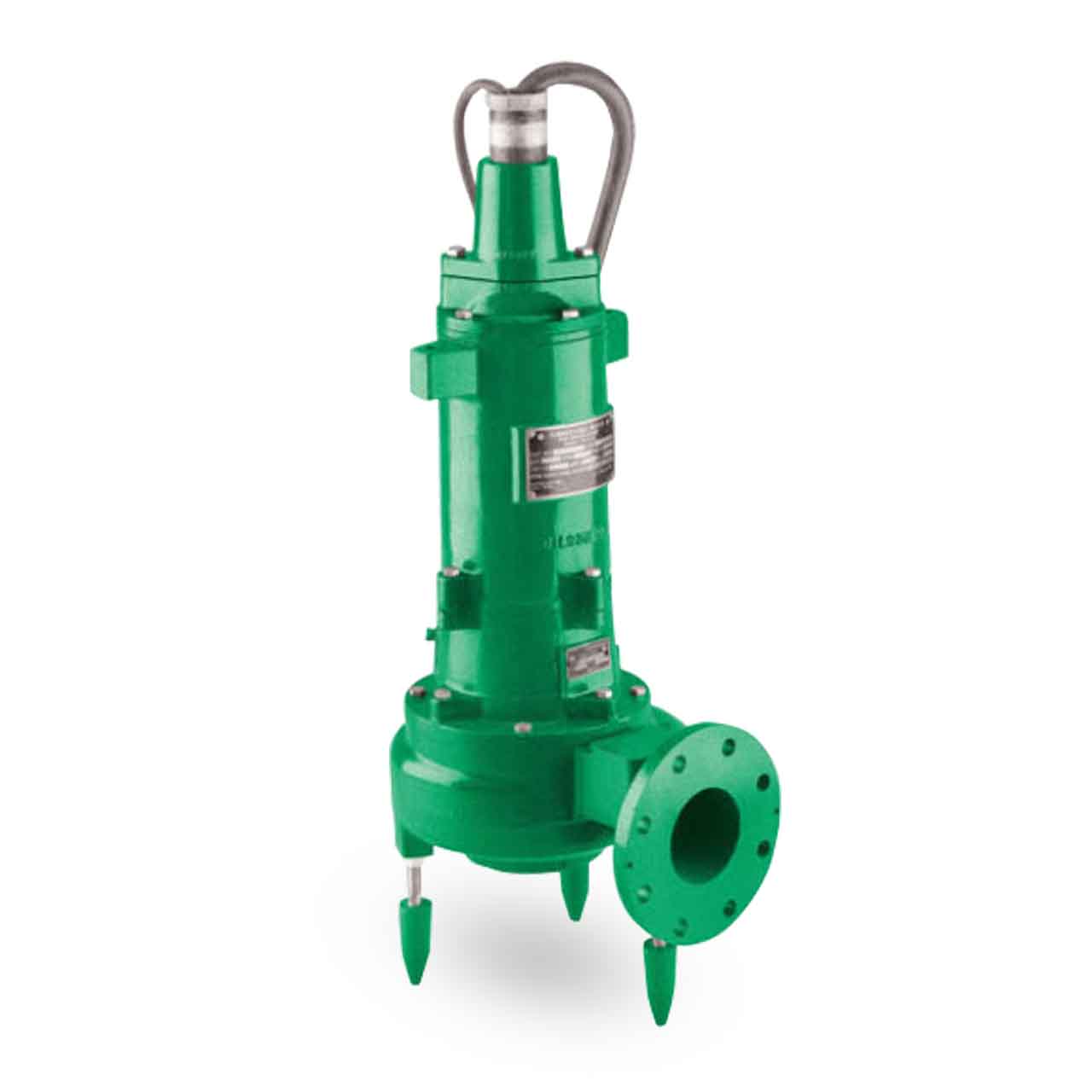

Myers Model 4V/4VX Hazardous Solids Handling Pump Description

The Myers 4V and 4VX (hazardous location) Submersible Wastewater Pumps pass a full 3" spherical solid and are the ideal choice when selecting a pump for your next application. Myers rounded port, 2-vane, enclosed impellers prevent solids from binding or clogging and offer high operating efficiencies to cut your pumping costs. The 4V Series modified constant velocity colute case provides smooth operation over an extended portion of the performance curve for longer seal and bearing life. For use in municipal lift stations, treatment plants and industrial waste applications.

Myers Model 4V/4VX Hazardous Solids Handling Pump Typical Application

• Municipal Lift Stations
• Treatment Plants
• Industrial Waste Applications

Myers Model 4V/4VX Hazardous Solids Handling Pump Features

• Cable Entry System Provides Double Seal Protection, Cable Jacket Sealed by Compression Grommet and Individual Wires Sealed by Epoxy Potting.
• Heat Sensors on Motor Winding Protect Motor from Burnout Due to Excessive Heat from any Overload Condition. Automatically Resets when Motor has Cooled
• Ball Bearings Upper and Lower Ball Bearings Support Shaft and Rotor and Take Axial and Radial Loads.
• Seal Leak Probe Detects Water in Seal Housing. Activates Warning Light in Control Model.
• Volute Case Modified Constant Velocity Volute Handles 3" Solids. 4" ANSI 125lb Flange.
• Brass Wear Ring Prevents Rust Buildup and Reduces leakage and Wear. Replaceable to Restore Original Running Clearance and Pump Efficiencies.
• High Efficiency Impeller 2-Vane with Rounded Port. (Optional Single Vane) Handles 3" Solids. Pump-Out Vanes Help Keep Trash from Seal; Reduce Pressure at Seal Faces.
• Sleeve Bearing Takes Radial Shock Load; Provides Flame Path.
• Heavy 416 SST ShaftCorrosion Resistant.
• Motor Stator is Press Fit for Optimal Alignment and Heat Transfer. Oil-Filled for Continuous Lubrication of Bearings and Seals.

Myers 4VX20M6-23 Hazardous Solids Handling Pump Technical Details

• VOLTAGE: 3ø, 230V, 60Hz
• HORSEPOWER: 2.0 HP
• AMP DRAW (full load): 10.5
• MOTOR TYPE: Oil Filled for Maximum Heat Dissipation and Constant Bearing Lubrication
• RPM: 1150
• MAXIMUM HEAD: 20’
• MAXIMUM CAPACITY: 387 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 4.0" Horizontal Flange
• MAXIMUM SOLIDS HANDLING SIZE: 3.0"
• IMPELLER TYPE: Ductile Iron, Enclosed 2-Vane
• CORD SIZE: 14-4
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60C)
• HAZARDOUS DUTY: UL Listed for Use in Class 1, Division 1, Group D
• CONTROL BOX REQUIRED

Myers Model 4V/4VX Hazardous Solids Handling Pump Curve
