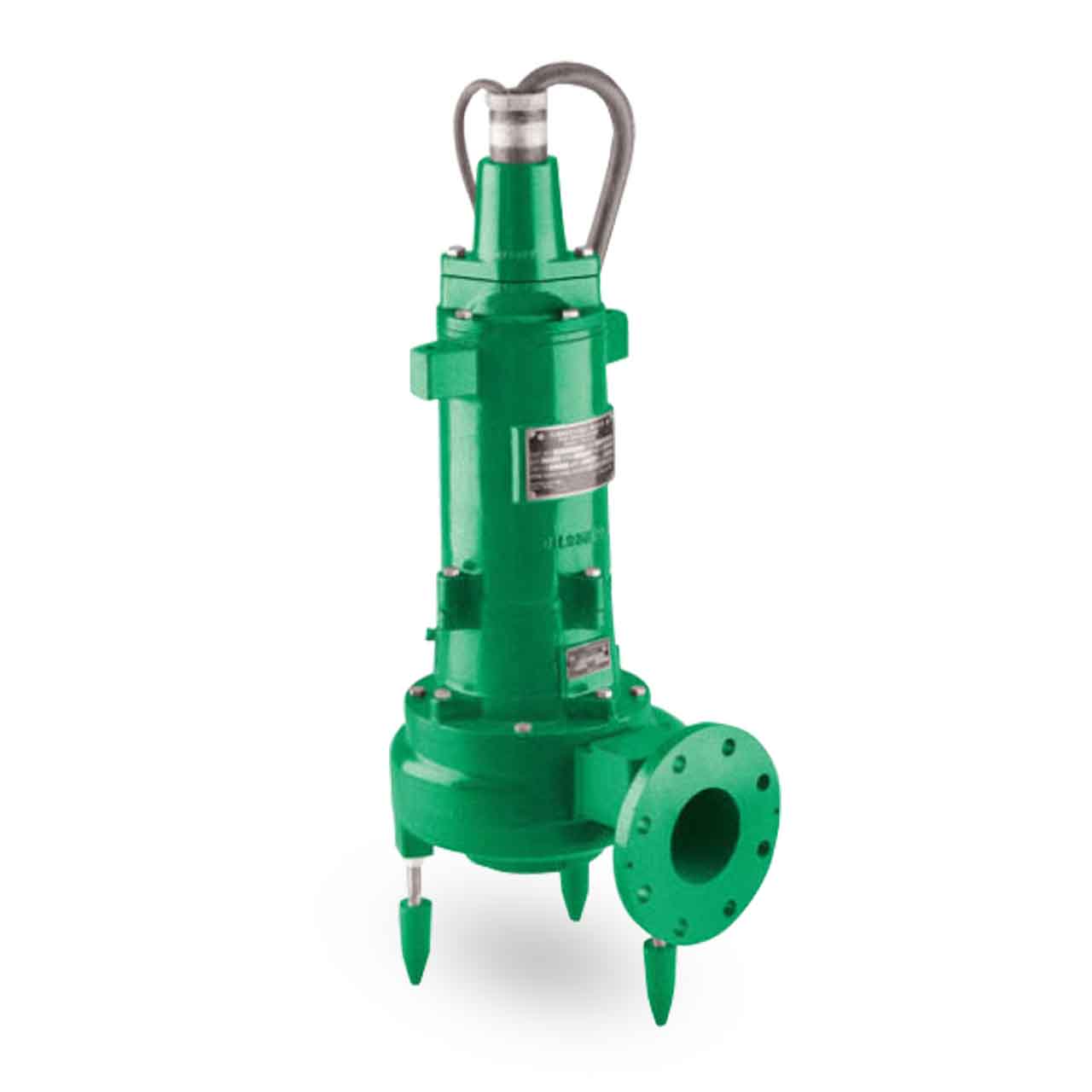

Myers Model 4V/4VX Description

The Myers 4V and 4VX (hazardous location) Submersible Wastewater Pumps pass a full 3" spherical solid and are the ideal choice when selecting a pump for your next application. Myers rounded port, 2-vane, enclosed impellers prevent solids from binding or clogging and offer high operating efficiencies to cut your pumping costs. The 4V Series modified constant velocity colute case provides smooth operation over an extended portion of the performance curve for longer seal and bearing life. For use in municipal lift stations, treatment plants and industrial waste applications.

Myers Model 4V/4VX Typical Application

• Municipal Lift Stations
• Treatment Plants
• Industrial Waste Applications

Myers Model 4V/4VX Superior Features

• Cable Entry System Provides Double Seal Protection, Cable Jacket Sealed by Compression Grommet and Individual Wires Sealed by Epoxy Potting.
• Heat Sensors on Motor Winding Protect Motor from Burnout Due to Excessive Heat from any Overload Condition. Automatically Resets when Motor has Cooled
• Upper and Lower Ball Bearings Support Shaft and Rotor and Take Axial and Radial Loads.
• Heavy Stainless Steel Shaft Prevents Deflection from Impeller Radial Loads when Pump Operates at Heads Higher than Peak Efficiency Range.
• Double Tandem Mechanical Shaft Seals Protect Motor. Oil-Filled Seal Chamber Provides Continuous Lubrication.
• Seal Leak Probe Detects Water in Seal Housing. Activates Warning Light in Control Panel.
• Volute Case Modified Constant Velocity Volute Handles 3" Solids. 4" ANSI 125lb Flange.
• Brass Wear Ring Prevents Rust Buildup and Reduces leakage and Wear. Replaceable to Restore Original Running Clearance and Pump Efficiencies.
• High Efficiency Impeller 2-Vane with Rounded Port. (Optional Single Vane) Handles 3" Solids. Pump-Out Vanes Help Keep Trash from Seal; Reduce Pressure at Seal Faces.
• Sleeve Bearing Takes Radial Shock Load; Provides Flame Path.
• Heavy Corrosion Resistant 416 SST Shaft.
• Motor Stator is Press Fit for Optimal Alignment and Heat Transfer. Oil-Filled for Continuous Lubrication of Bearings and Seals.

Myers 4V10M6-23 Technical Details

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 1.0 HP
• RPM: 1150
• MAXIMUM HEAD: up to 24'
• MAXIMUM CAPACITY: up to 240 GPM
• DISCHARGE PIPE SIZE: 4" Flanged Horizontal Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 3"
• CORD SIZE: 14-4
• FULL LOAD AMPS: 6.4
• VOLTAGE: 3ø, 230V
• MOTOR: Oil Filled for Maximum Heat Dissipation and Constant Bearing Lubrication
• IMPELLER CONSTRUCTION: Enclosed 2-Vane Impeller, Ductile Iron, Class 65, ASTM A536

Myers Model 4V/4VX Pump Curve
