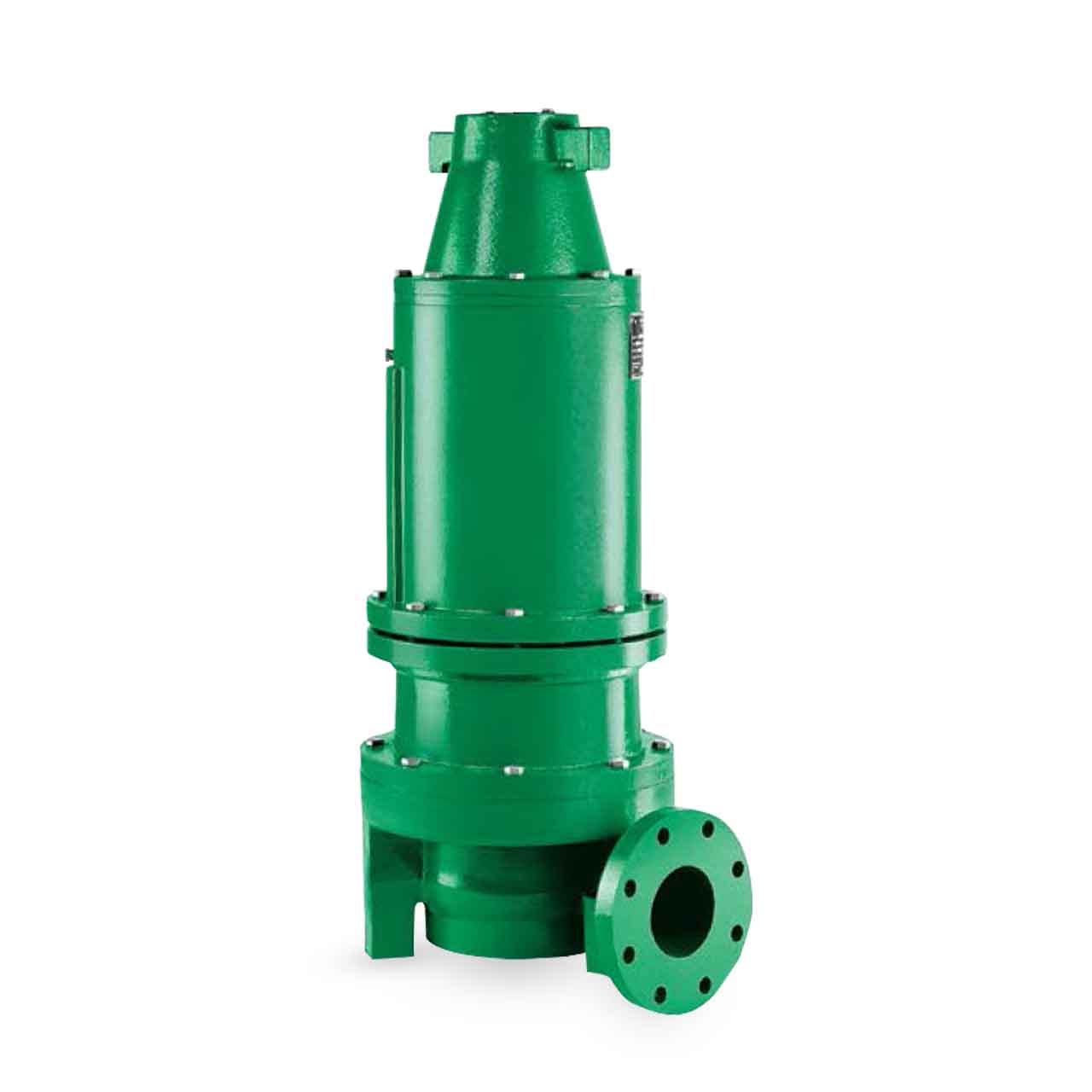

Myers Model 4RC Description

The Myers 4RC Submersible Wastewater Pumps are the right choice when difficult to pump fibrous or stringy solids are to be expected. The 4RC Series provides smooth, vibration-free operation when operating at heads higher than peak efficiency.The pump is for use in municipal lift stations, treatment plants and industrial wastewater applications

Myers Model 4RC Typical Application

• Municipal Lift Stations
• Treatment Plants
• Industrial Waste Water Applications

Myers Model 4RC Superior Features

• Cable Entry System Provides Triple Seal Protection, Cable Jacket Sealed by Compression Grommet, Individual Wires Sealed by Epoxy Potting and Terminal Board Seperates Motor Chamber from Cord Cap.
• Heat Sensor Protects Motor from Burnout Due to Excessive Heat from any Overload Condition. Automatically Resets when Motor has Cooled.
• Double Tandem Mechanical Shaft Seals Protect Motor. Oil-Filled Seal Chamber Provides Continuous Lubrication.
• Seal Leak Probes Detect Water in Seal Housing and Activate Warning Light in Control Panel.
• Volute Case Handles 3" Solids. Completely Open from Inlet to Discharge. 4" ANSI 125 lb. Flange.
• Recessed Impeller Handles Stringy Trash and Slurries without Clogging or Binding. Pump-Out Vanes Help Keep Trash from Seal; Reduces Pressure at Seal Faces.
• Sleeve Bearing takes Radial Shock Load and Provides Flame Path.
• Heavy Corrosion Resistant 416 SST Shaft.
• Motor Stator Heat Shrunk into Housing for Perfect Alignment and Best Heat Transfer. Oil-Filled Motor Conducts Heat and Lubricates Bearings.
• Upper and Lower Ball Bearings Support Shaft and Rotor and Take Axial and Radial Loads.

Myers 4RC400M2-53 Technical Details

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 40 HP
• RPM: 3450
• MAXIMUM HEAD: up to 260'
• MAXIMUM CAPACITY: up to 800 GPM
• DISCHARGE PIPE SIZE: 4" Horizontal Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 3"
• CORD SIZE: 8-4 W
• FULL LOAD AMPS: 47.2
• VOLTAGE: 3ø, 575V
• MAXIMUM LIQUID TEMPERATURE: 140°F (60C)
• MOTOR: Oil Filled for Maximum Heat Dissipation and Constant Bearing Lubrication
• IMPELLER CONSTRUCTION: Recessed Impeller, Ductile Iron, Class 65, ASTM A536

Myers Model 4RC Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers Model 4RC Product Resources

Download Myers 4RC Sale Brochure

Download Myers 4RC Specification Sheet

Download Myers 4RC Installation & Service Manual
