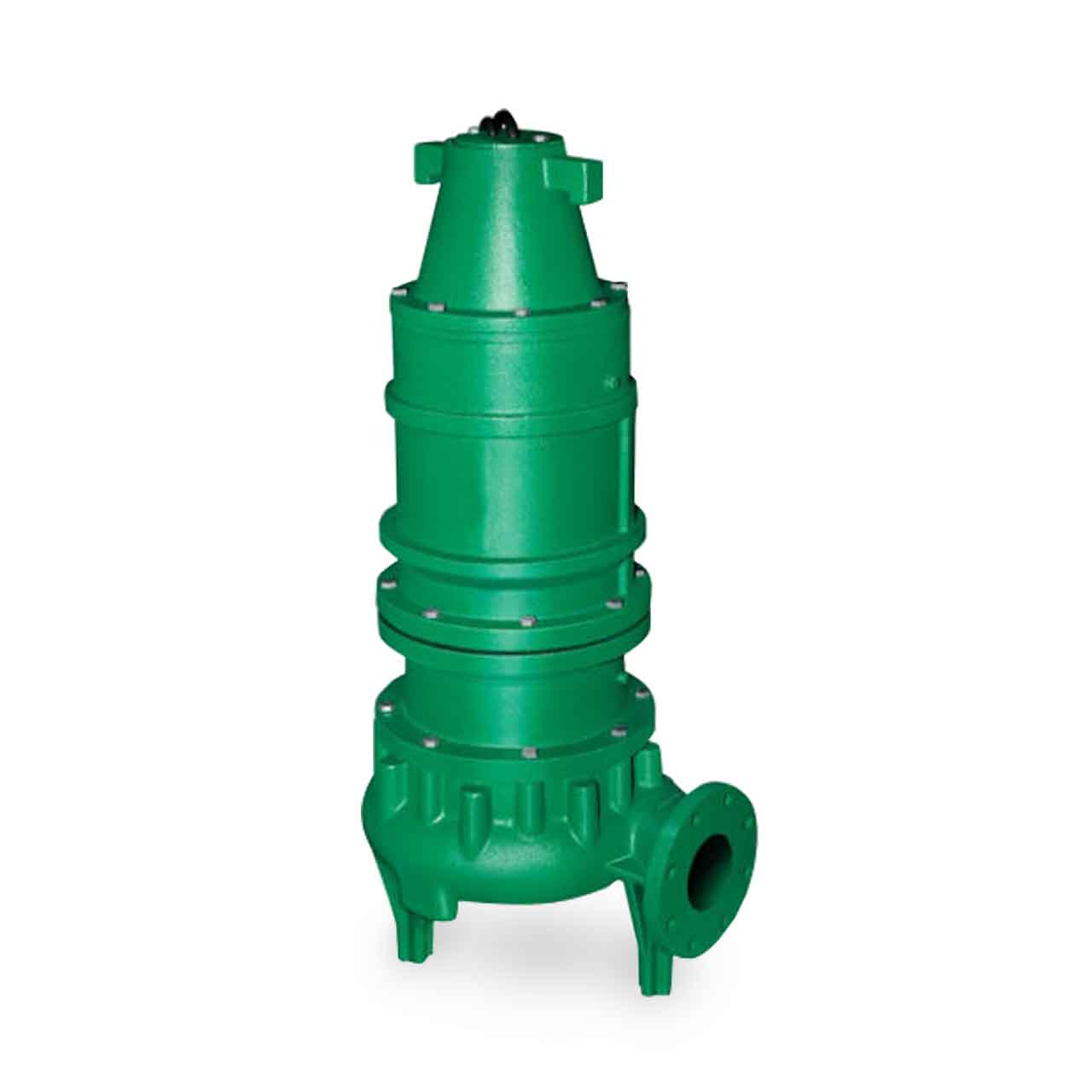

Myers 4RC250M4-23 Solids Handling Wastewater Pump 25 HP 230V 3PH
Myers 4RC250M4-23 Solids Handling Wastewater Pump 25 HP 230V 3PH
SKU : MYR26640F038
In Stock Quantity:0
:
Brand
:
Regular price
$24,064.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Myers Model 4RC Solids Handling Pump Description
The Myers 4RC and 4RCX (hazardous location) Submersible Wastewater Pumps are the right choice when difficult to pump fibrous or stringy solids are to be expected. The 4RC/4RCX Series provides smooth, vibration-free operation when operating at heads higher than peak efficiency.The pump is for use in municipal lift stations, treatment plants and industrial wastewater applications
Myers Model 4RC Solids Handling Pump Typical Application
- Municipal Lift Stations
- Treatment Plants
- Industrial Waste Water Applications
Myers Model 4RC Solids Handling Pump Features
- Cable Entry System Provides Triple Seal Protection, Cable Jacket Sealed by Compression Grommet, Individual Wires Sealed by Epoxy Potting and Terminal Board Seperates Motor Chamber from Cord Cap.
- Heat Sensor Protects Motor from Burnout Due to Excessive Heat from any Overload Condition. Automatically Resets when Motor has Cooled.
- Shaft Seals Double Tandem Mechanical Shaft Seals Protect Motor. Oil-Filled Seal Chamber Provides Continuous Lubrication.
- Seal Leak Probes Detect Water in Seal Housing and Activate Warning Light in Control Panel.
- Volute Case Handles 3" Solids. Completely Open from Inlet to Discharge. 4" ANSI 125 lb. Flange.
- Recessed Impeller Handles Stringy Trash and Slurries without Clogging or Binding. Pump-Out Vanes Help Keep Trash from Seal; Reduces Pressure at Seal Faces.
- Sleeve Bearing takes Radial Shock Load and Provides Flame Path.
- Heavy 416 SST Shaft Corrosion Resistant .
- Motor Stator Heat Shrunk into Housing for Perfect Alignment and Best Heat Transfer. Oil-Filled Motor Conducts Heat and Lubricates Bearings.
- Ball Bearings Upper and Lower Ball Bearings Support Shaft and Rotor and Take Axial and Radial Loads.
Specifications
Specifications
Myers 4RC250M4-23 Solids Handling Pump Technical Details
- VOLTAGE: 3ø, 230V, 60Hz
- HORSEPOWER: 25 HP
- AMP DRAW (full load): 76
- MOTOR TYPE: Oil Filled for Maximum Heat Dissipation and Constant Bearing Lubrication
- RPM: 1750
- MAXIMUM HEAD: up to 133'
- MAXIMUM CAPACITY: up to 1150 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4.0" Horizontal
- MAXIMUM SOLIDS HANDLING SIZE: 3.0"
- IMPELLER TYPE: Ductile Iron, Class 65, ASTM A536, Recessed Impeller
- CORD SIZE: 4-4
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM AMBIENT TEMPERATURE: 140°F (60C)
- CONTROL BOX REQUIRED
Myers Model 4RC Solids Handling Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers Model 4RC Solids Handling Pump Product Resources
Download Myers 4RC/4RCX Series Sale Brochure
Download Myers 4RC/4RCX Series Specification Sheet
Download Myers 4RC/4RCX Series Installation & Service Manual
