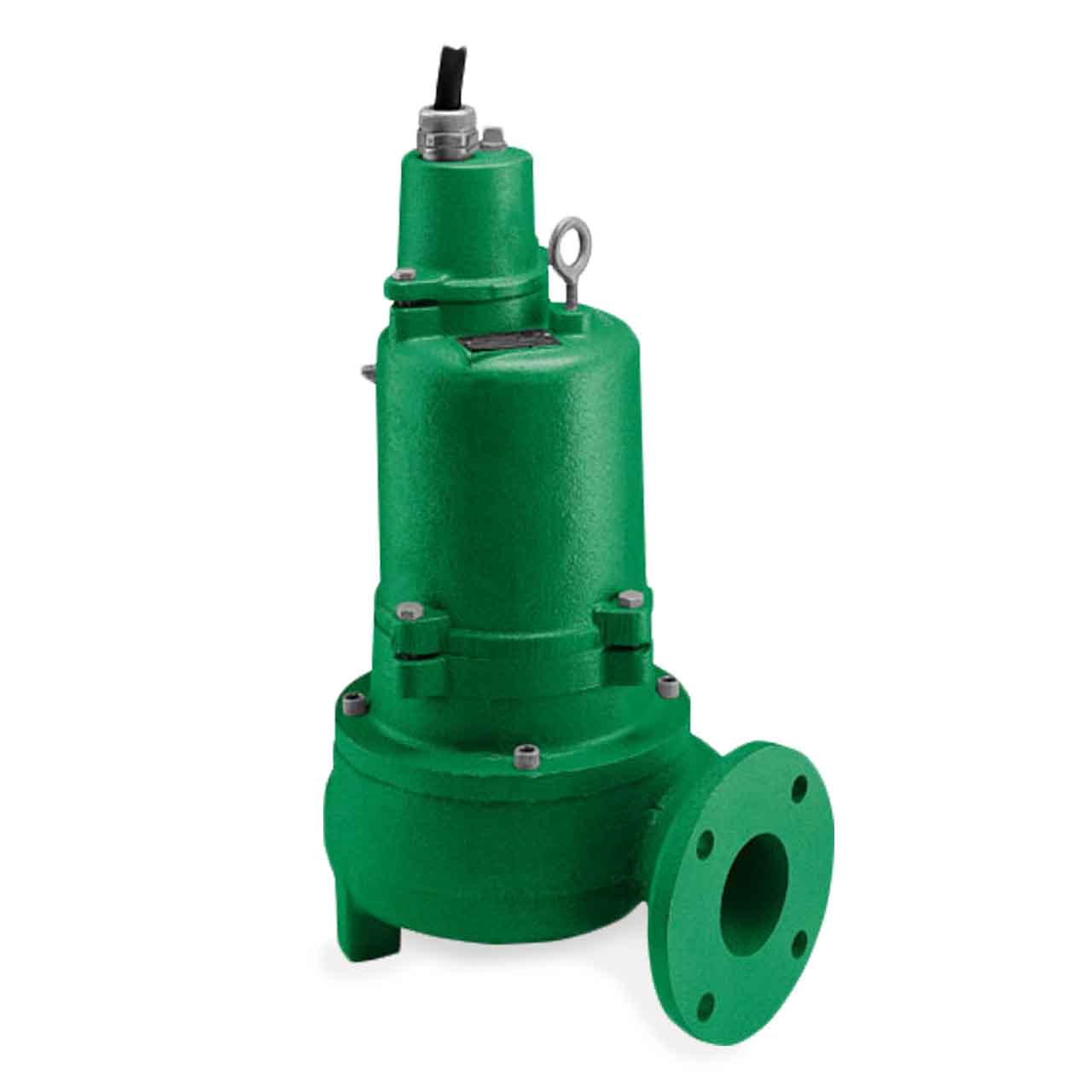

Myers 3WHV20M4-53 Submersible Sewage Pump 2.0 HP 575V 3PH 35' Cord

Myers 3WHV20M4-53 Submersible Sewage Pump 2.0 HP 575V 3PH 35' Cord

Usually ships within 4 weeks

SKU : MYR3WHV20M4-53

In Stock Quantity:0

:
Brand : Myers
$5,696.00 USD
Shipping calculated at checkout.

Description


Myers 3WHV Series Sewage Pump Descriptions

The 3WHV Series Solids-Handling Pumps are designed primarily for commercial applications such as: schools, churches, industrial plants, shopping centers, apartments and condominiums, marinas, interstate rest stops, sewage collection systems, campgrounds, motels, restaurants, office & commercial buildings, state & federal parks and treatment plants. This pump can be installed on legs or with a quick-disconnect slide rail system. Its ability to handle 2-1/2" spherical solids makes it ideal for most light to medium commercial installations.

Myers 3WHV Series Sewage Pump Applications

  • Residential and Commercial Sewage/Dewatering
  • High Capacity Sump
  • Effluent/Wastewater Transfer
  • Sewage Lift Stations

Myers 3WHV Series Features

  • Cable Entry System Provides Double Seal Protection. Cable Jacket Sealed by Compression Fitting. Indivdual Wires Sealed by Epoxy Potting.
  • Motor Stator Pressed in Shell for Optimal Alignment and Best Heat Transfer. Oil-Filled for Continuous Lubrication of Bearings and Seals. Winding in Insulation is Class F.
  • Stainless Steel Shaft Prevents Deflection from Impeller Radial Loads when Pump Operates at Heads Higher than Peak Efficiency Range.
  • Single Shaft Seals Protect Motor.
  • Pump-Out Vanes Help Keep Trash from Seal, Reduce Pressure at Seal Faces.
  • Horizontal Discharge Volute Case 3" Flanged.
  • High Efficiency Impeller Two-Vane Rounded Port, Solids Handling Design.

Specifications

Myers 3WHV20M4-53 Series Sewage Pump Specifications

  • VOLTAGE: 3ø, 575V, 60Hz
  • HORSEPOWER: 2.0 HP
  • AMP DRAW (full load): 2.8
  • MOTOR TYPE: Enclosed, Oil Cooled Induction
  • RPM: 1750
  • MAXIMUM HEAD: up to 31'
  • MAXIMUM CAPACITY: up to 350 GPM
  • SWITCH TYPE: Manual
  • MINIMUM SUMP DIAMETER: Duplex 60"
  • DISCHARGE PIPE SIZE: 3.0" Flanged, Horizontal
  • MAXIMUM SOLIDS HANDLING SIZE: 2.5"
  • IMPELLER TYPE: Ductile Iron, Enclosed 2-Vane
  • IMPELLER DIAMETER: 6.00"
  • CORD LENGTH: 35' Type SOOW W
  • BODY CONSTRUCTION: Cast Iron, Class 30, ASTM A48
  • MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
  • CONTROL PANEL REQUIRED

Myers 3WHV Series Sewage Pump Performance Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers 3WHV/V3WHV Series Sewage Pump Product Resources


Download Myers 3WHV/V3WHV Brochure

Download Myers 3WHV/V3WHV Specifications

Download Myers 3WHV/V3WHV Owners Manual

Download Myers 3WHV/V3WHV Parts List
